Fox flexi keychain
An orange chibi fox with a big bushy tail that wiggles on four print-in-place joints.
- Pieces
- 5, with 4 print-in-place joints
- Size
- 88 x 26 x 6.9 mm
- Print time
- 0.7 h on 2 plates
- Filament
- 10.5 g
Colourway
- Orange main
- Jade white second
- Black accent
About the design

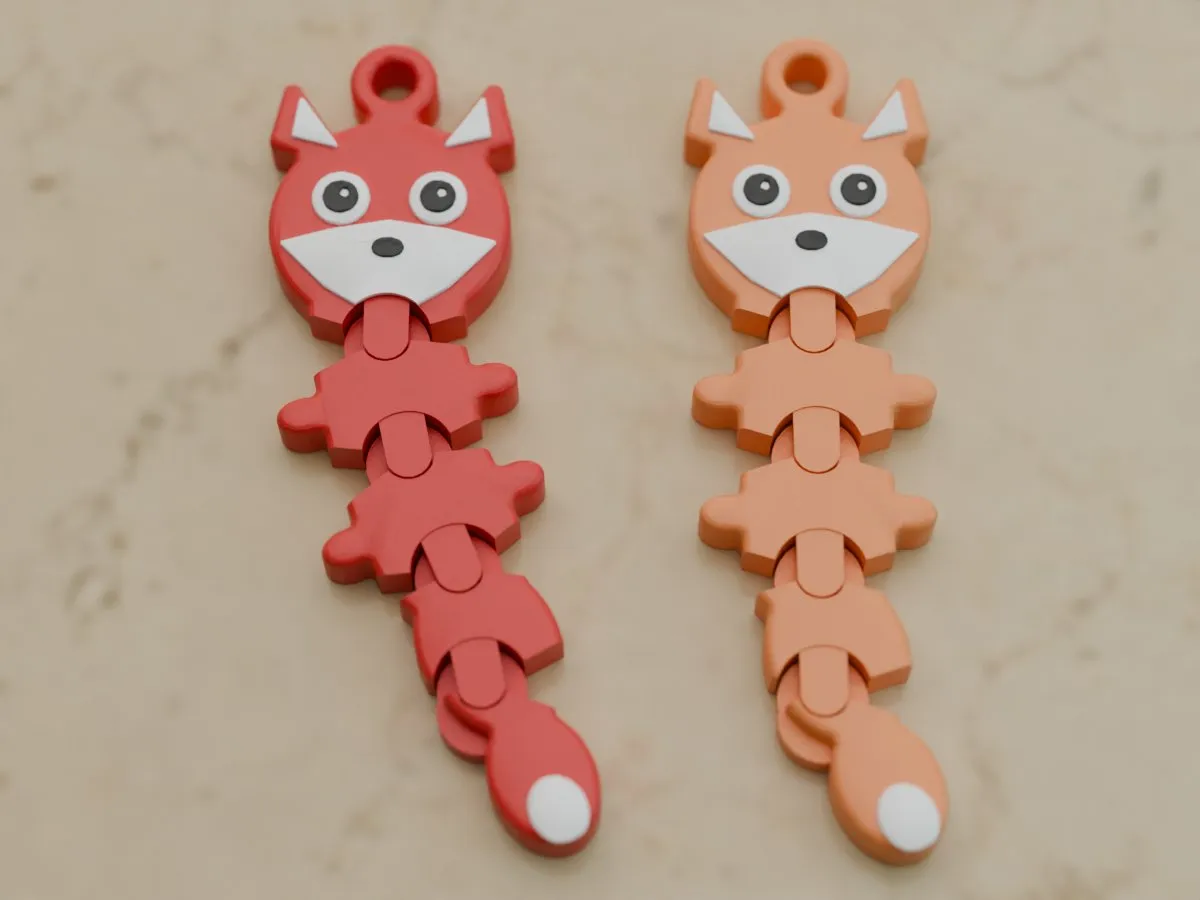

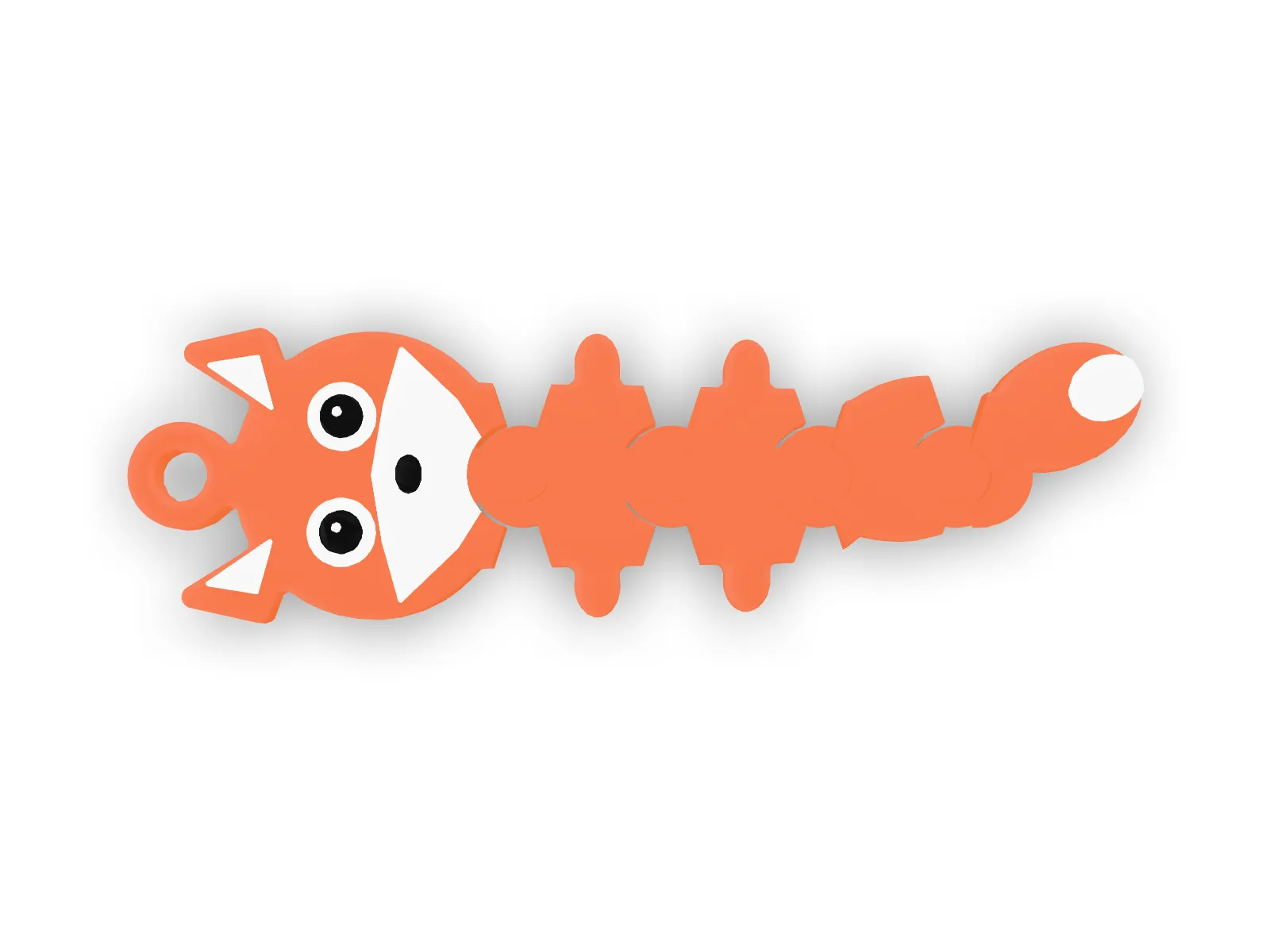

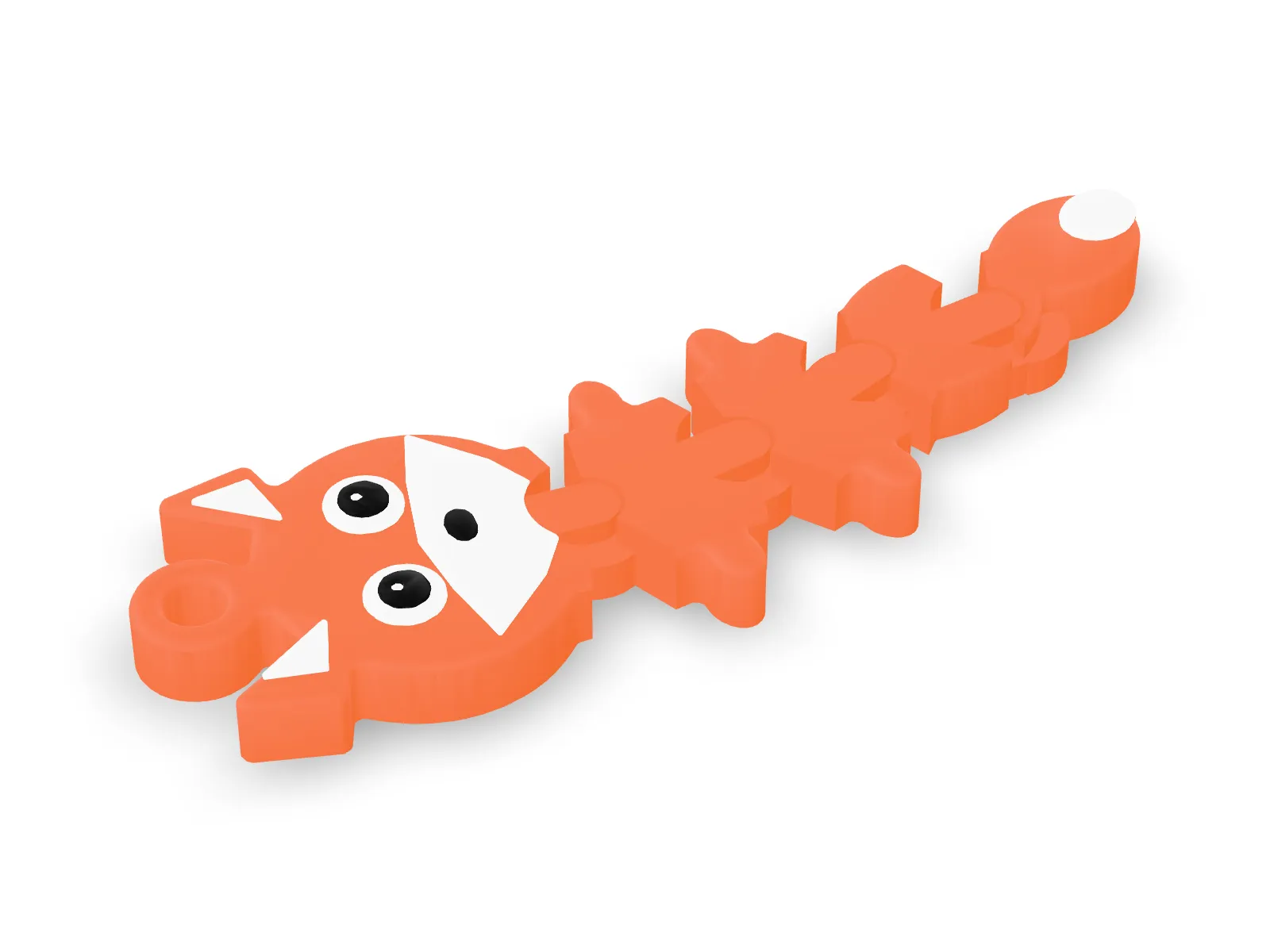

An orange fox with big pointed ears with white insides, shining eyes, a white muzzle with a black nose, four small legs and a big bushy tail in two pieces with a white tip, in five pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 30 degrees each way. It prints flat in one go with no supports and no brim, in orange with a white muzzle, eye patches, inner ears and tail tip and black pupils and nose, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 5, with 4 print-in-place joints
- Size
- 88 x 26 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 30 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Fox flexi keychain, PLA Basic | 2 | 0.7 | 10.5 |
| Total | 2 | 0.7 | 10.5 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
