AnkleGrid balance board

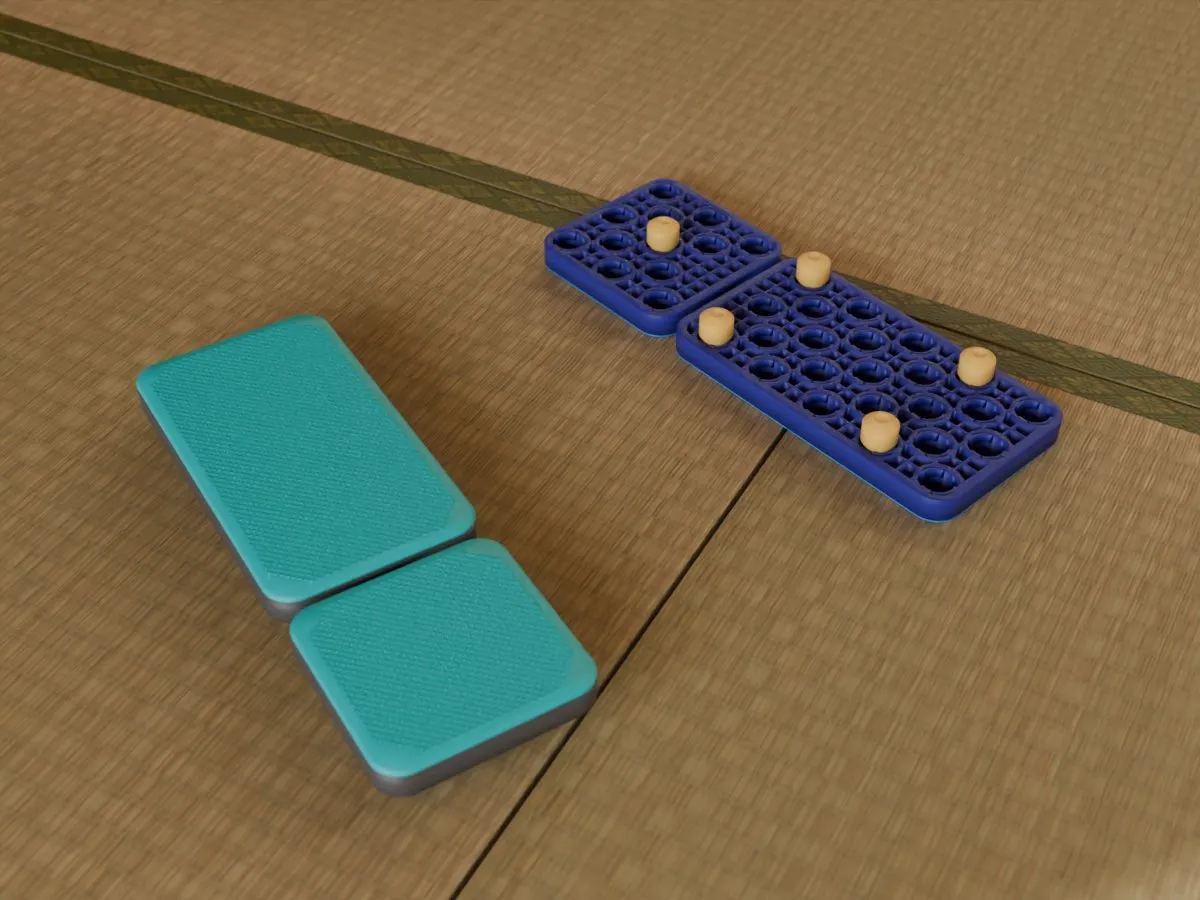

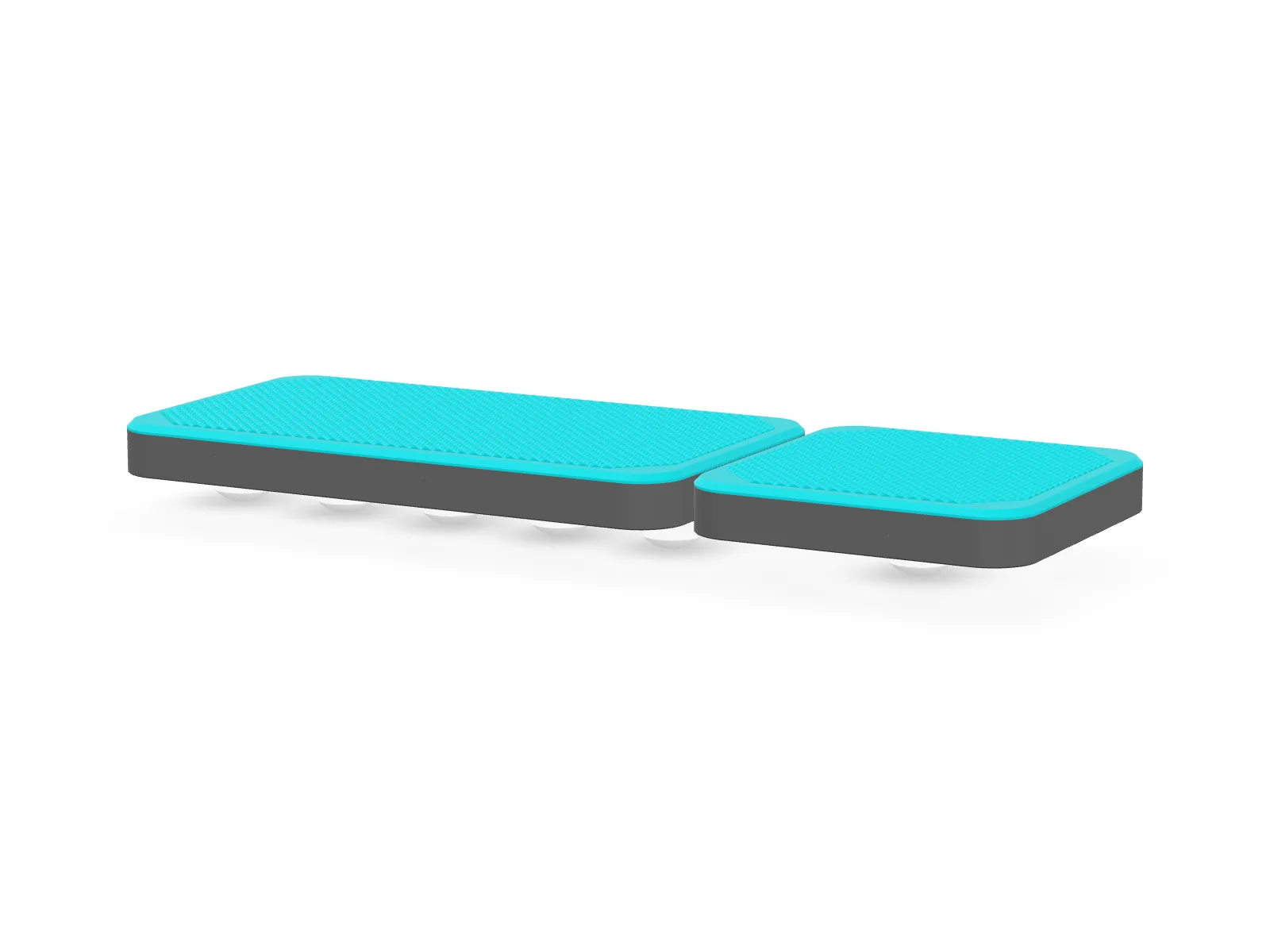

A split balance board with a rib grid and twist-lock pegs that stack for height.
- Print time
- 18.1 h on 5 plates
- Filament
- 500.1 g
Colourway
- Dark gray main
- Turquoise second
- Jade white accent
About the design

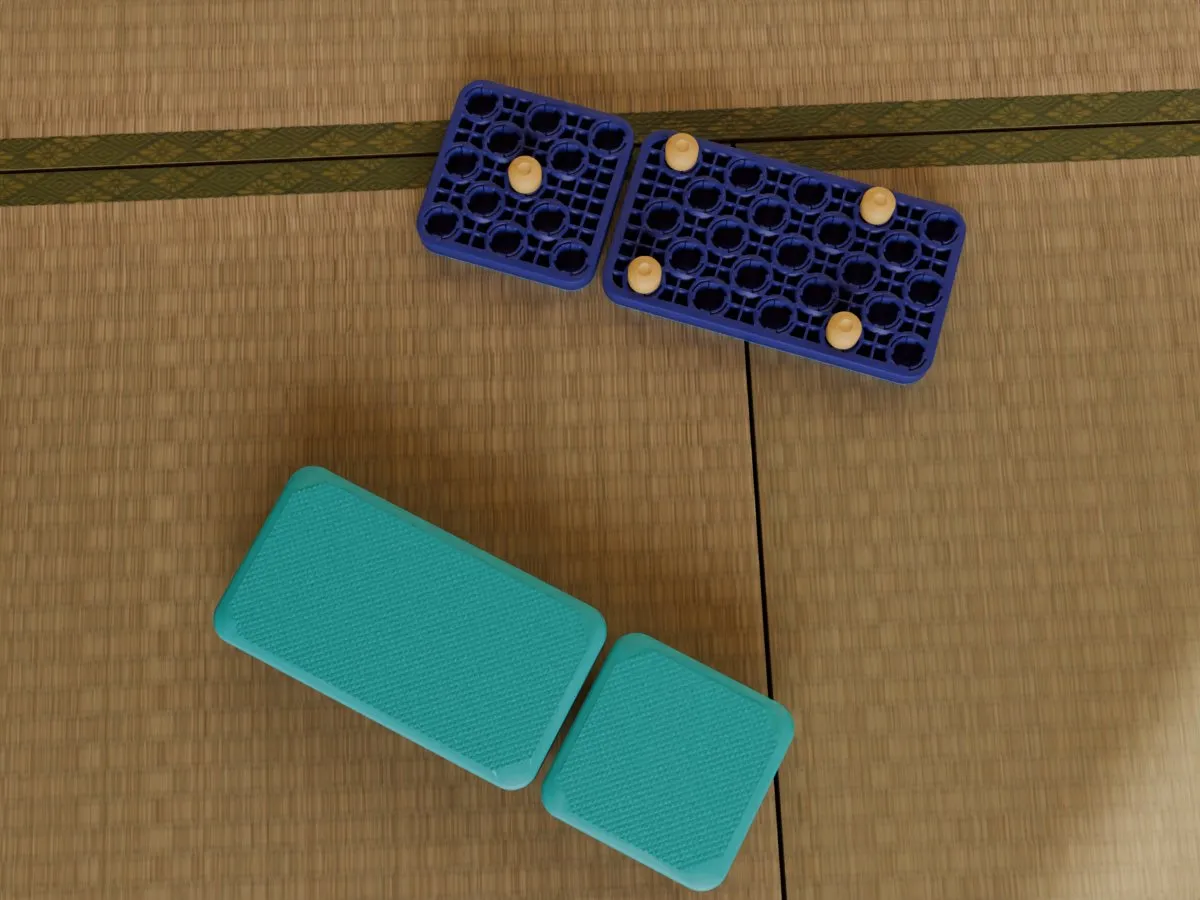

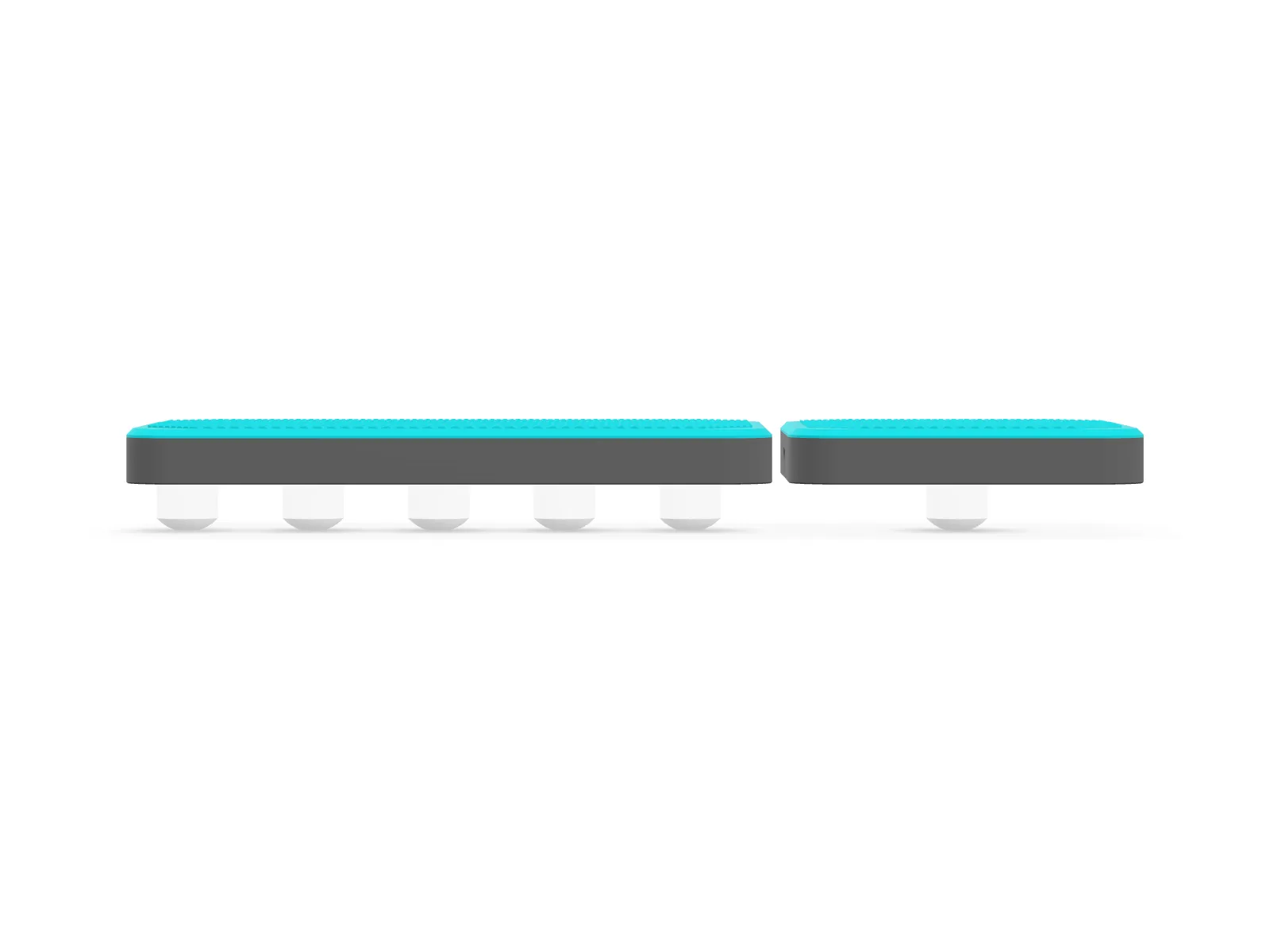

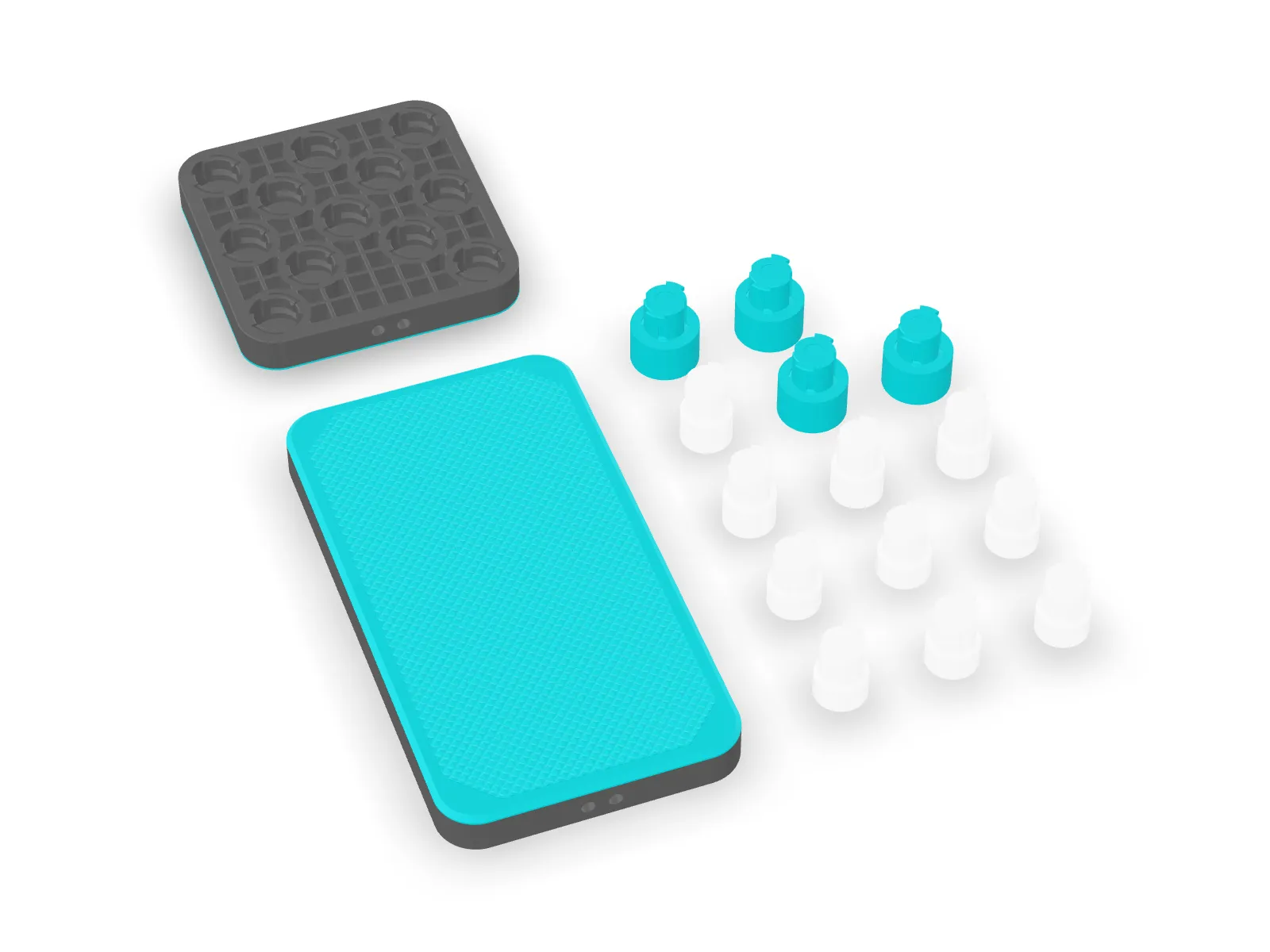

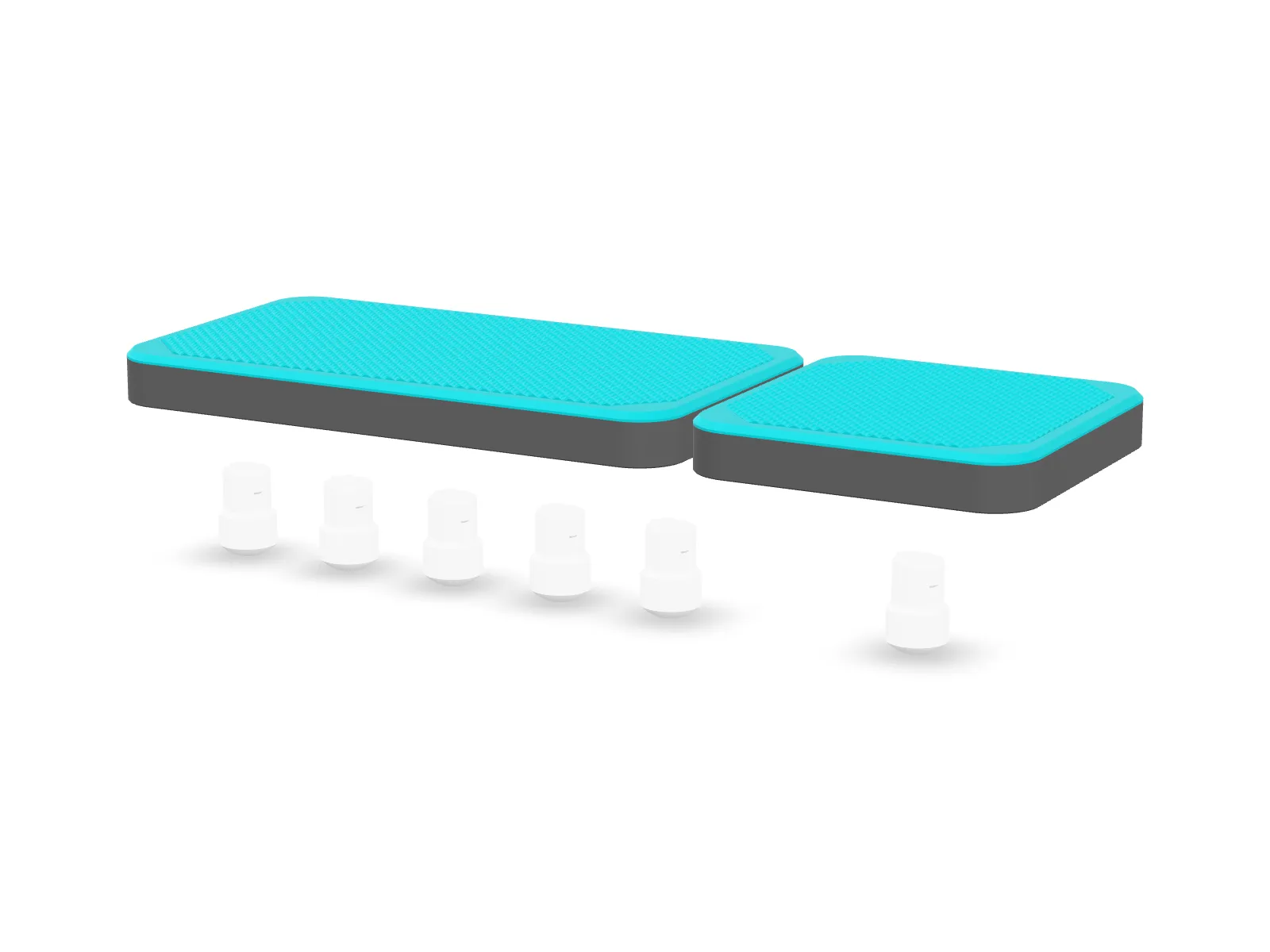

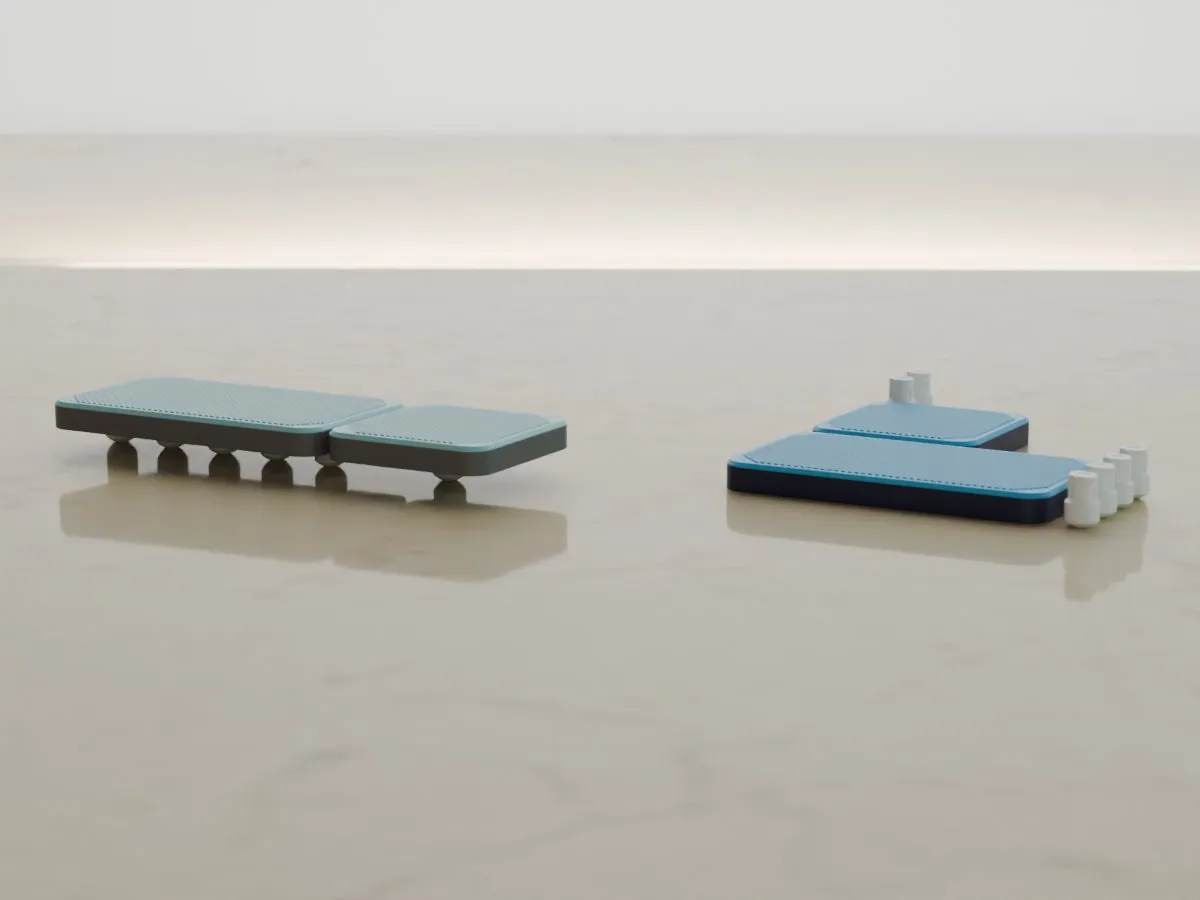

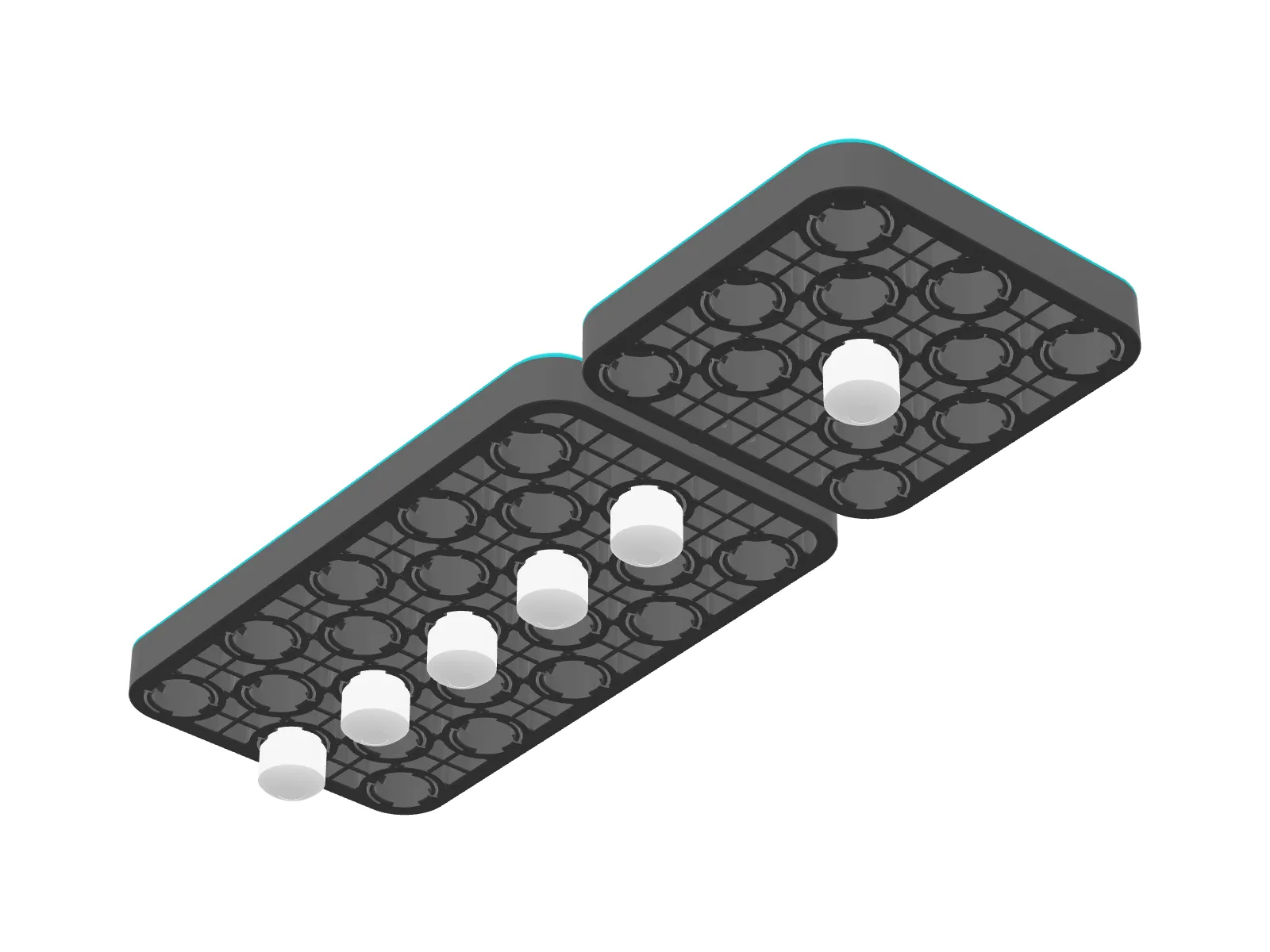

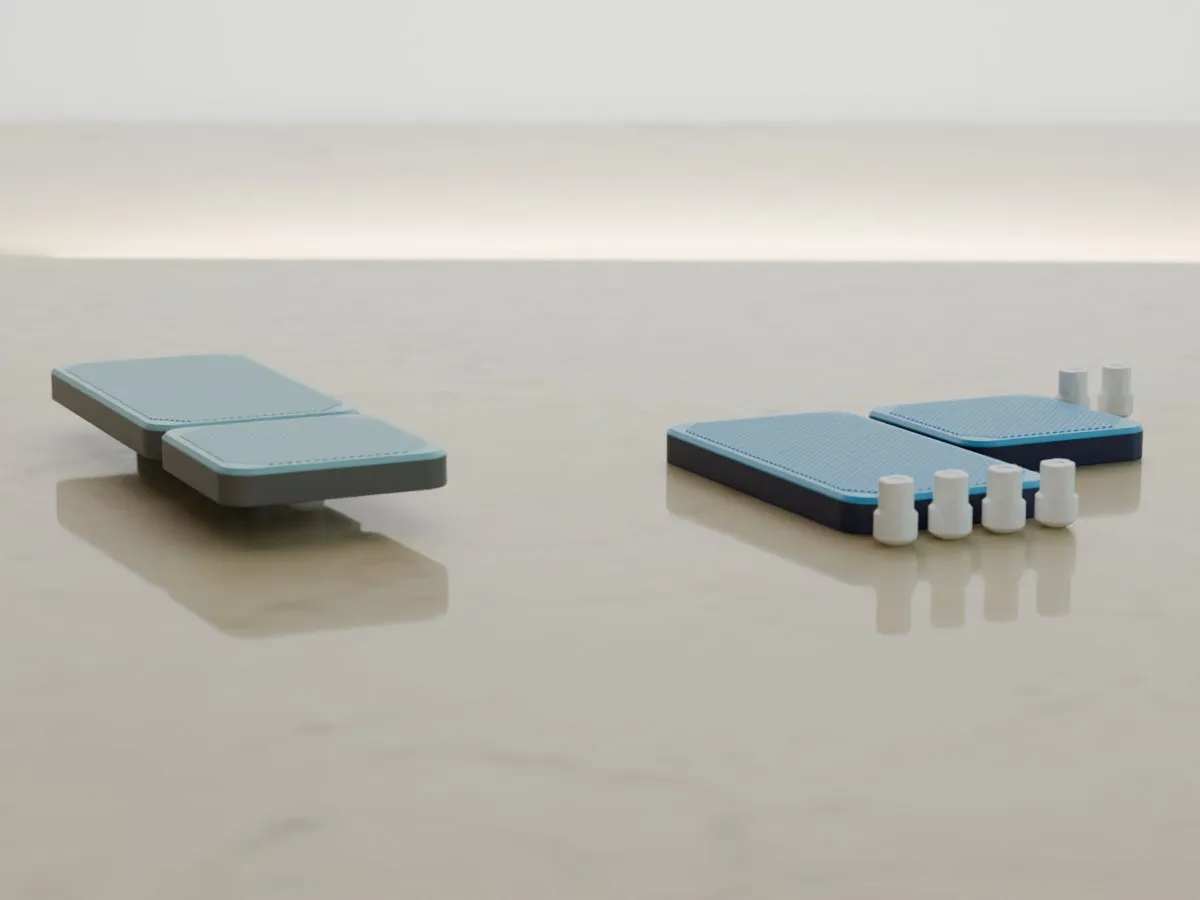

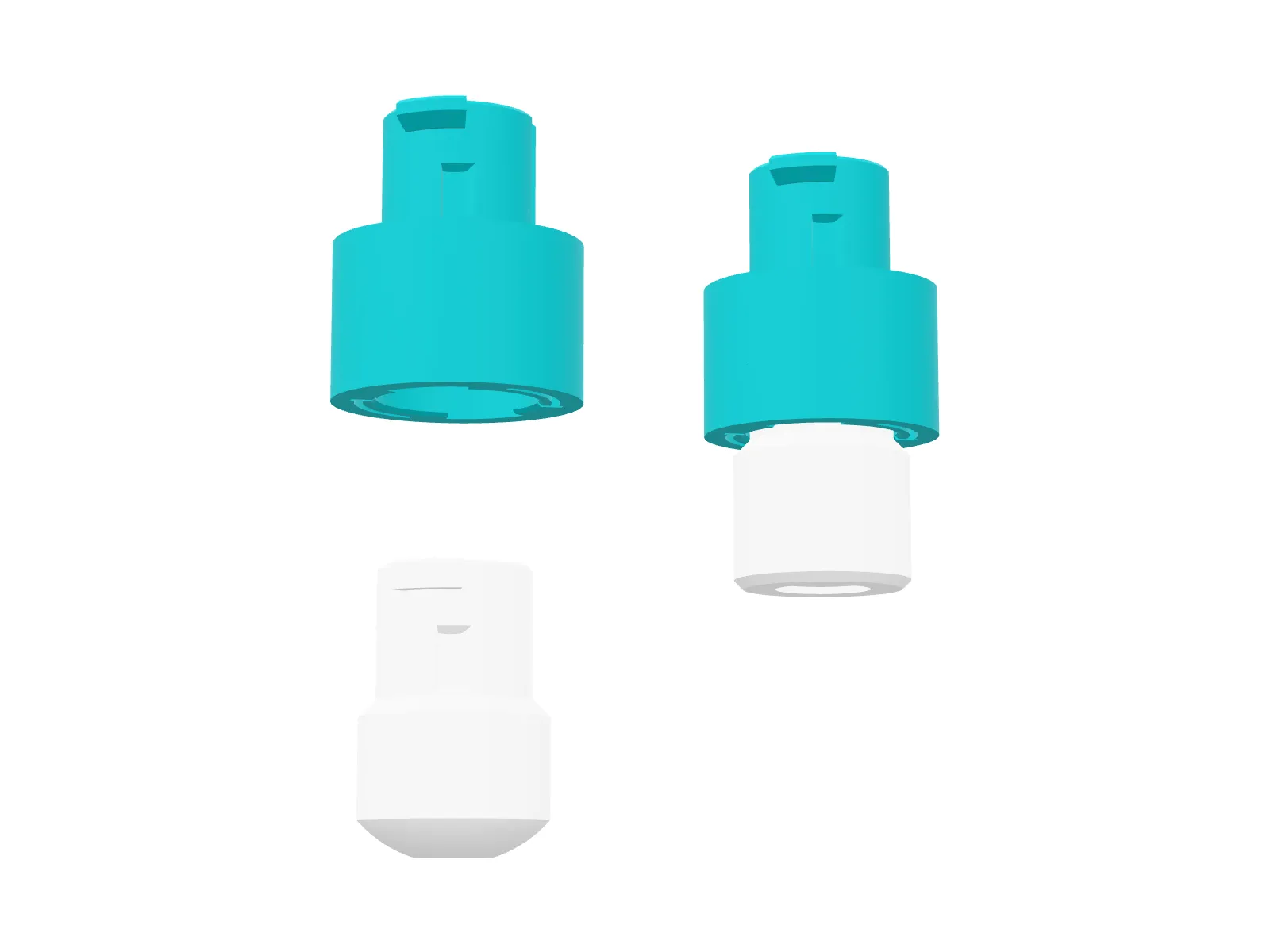

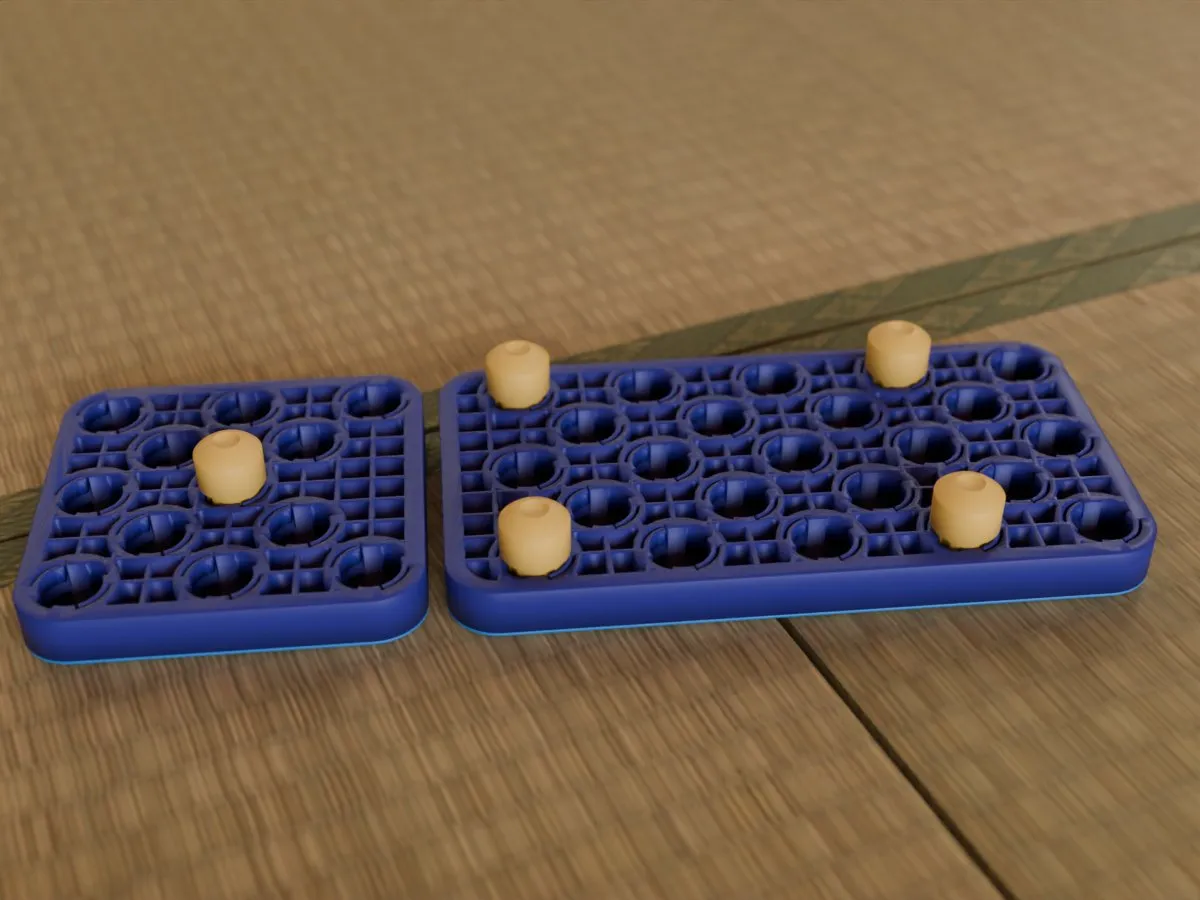

Two knurled pads sit on round pegs. Each peg locks into a socket under the 10 mm rib grid with a quarter turn and a click, and the lock takes its fit from heights, which the layers print exactly. Moving the pegs moves the rocking axis, and risers stack under a peg to tilt it. The pads print ribs down with no supports, and hand calculations size the ribs and sockets for a 100 kg user, or 87 kg on a riser.
What you can change
- Pad length and width
- Grid pitch and rib height
- Knurl pitch and depth
- Peg lock (click strength)
- Peg tip shape (dome or flat)
- Riser height
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| AnkleGrid balance board, PLA Basic | 5 | 18.1 | 500.1 |
| Total | 5 | 18.1 | 500.1 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
