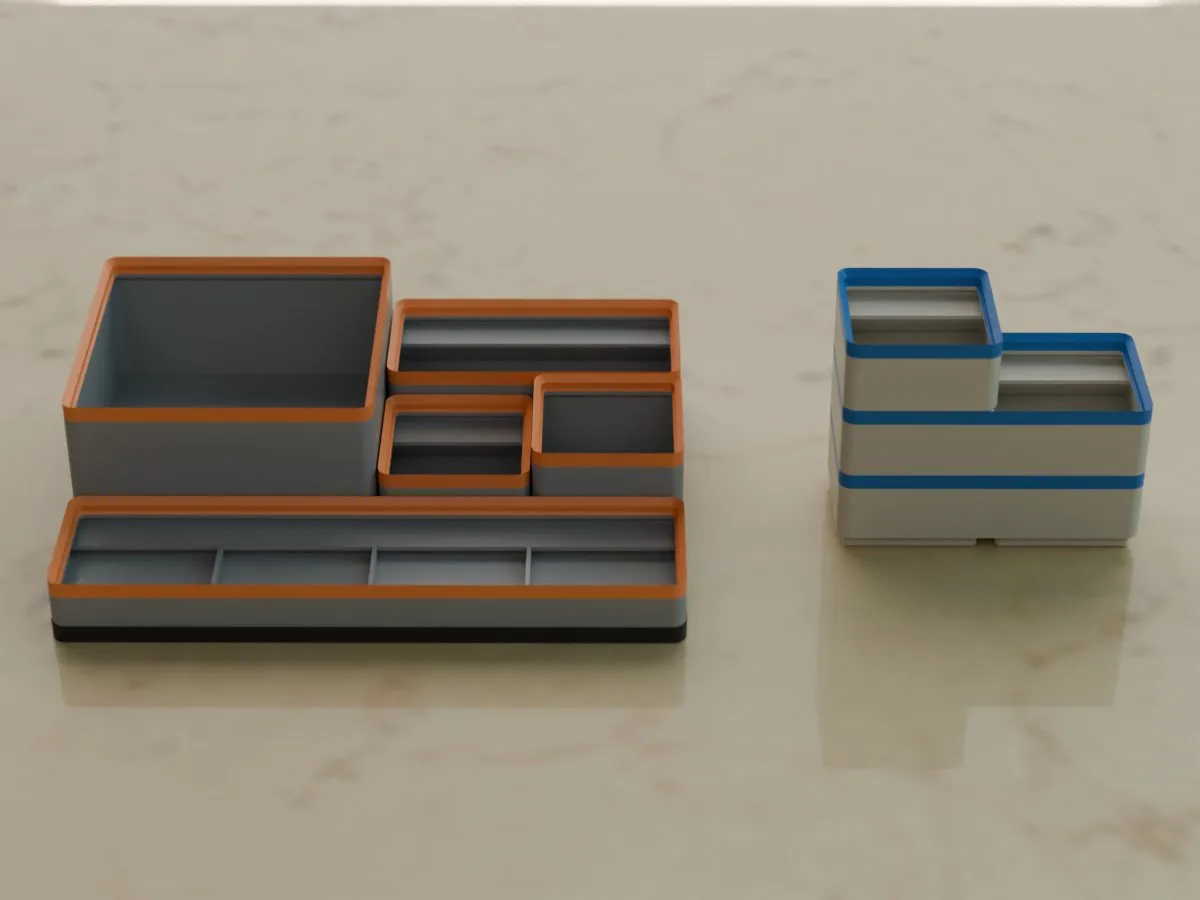

Some renders show this model in another colourway.
Gridfinity-compatible storage bins
Drawer bins and baseplates that fit the open Gridfinity system, in any size.
- Print time
- 8.6 h on 4 plates
- Filament
- 332.0 g
Colourway
- Blue grey main
- Black second
- Orange accent
About the design

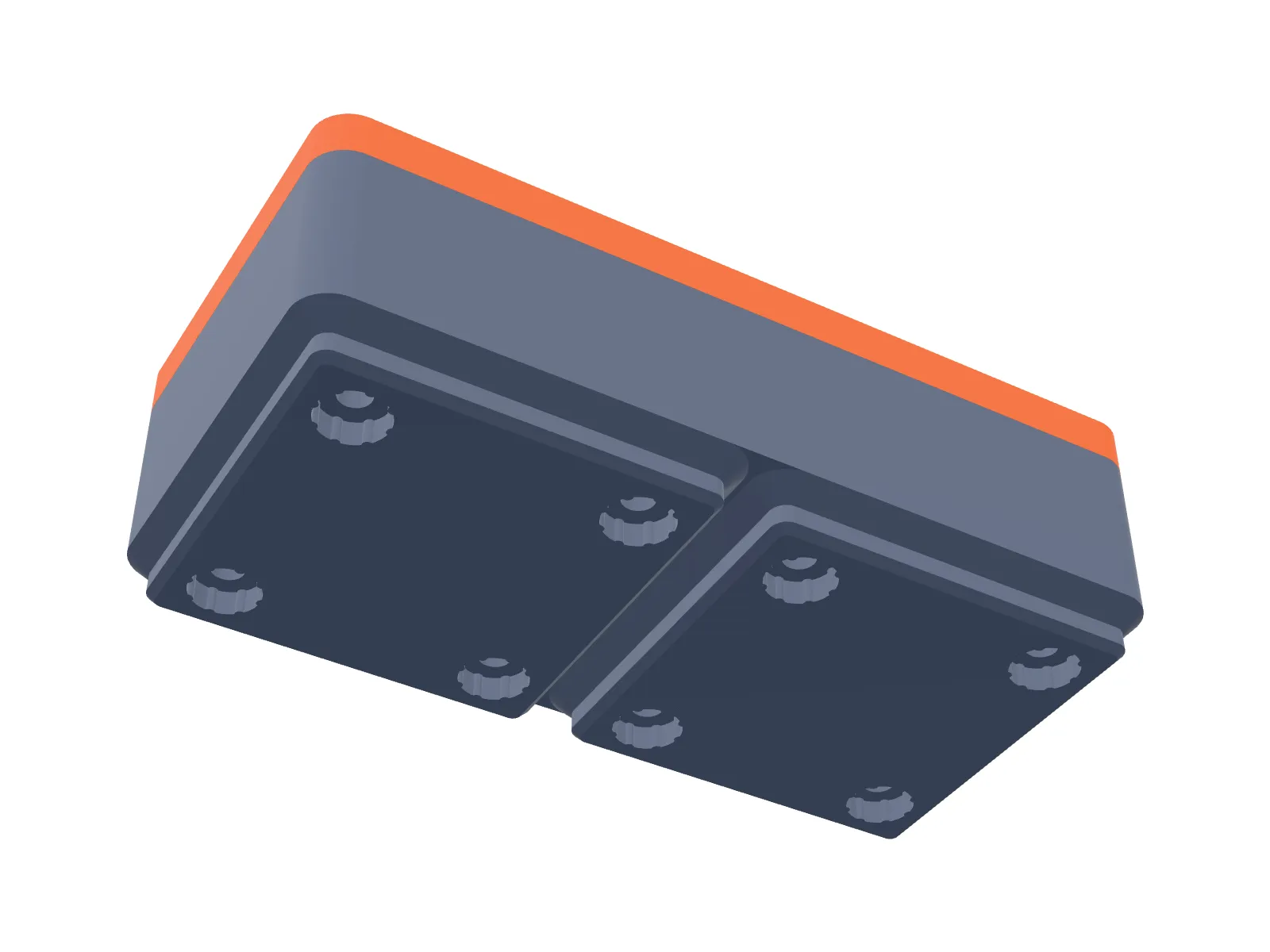

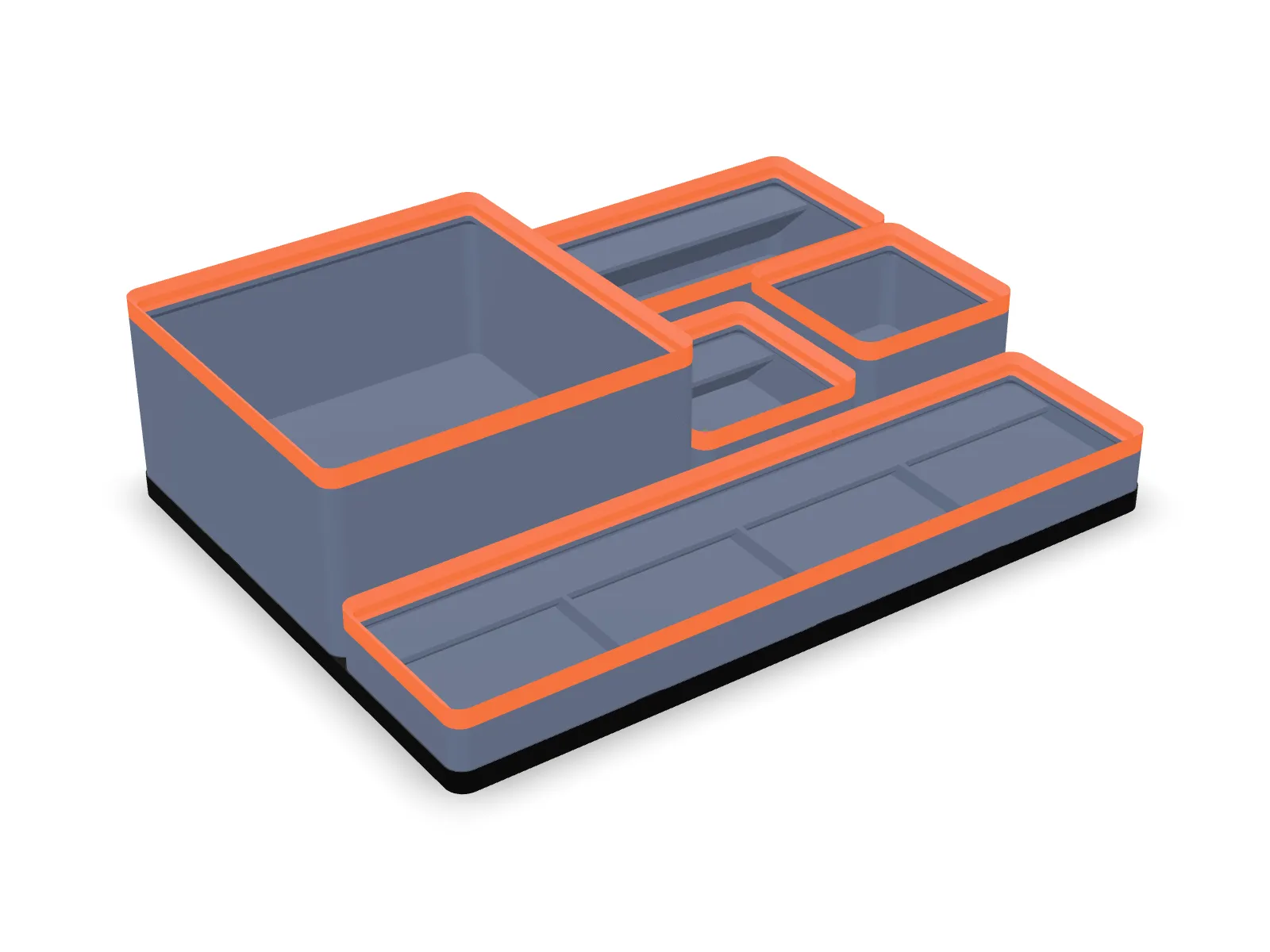

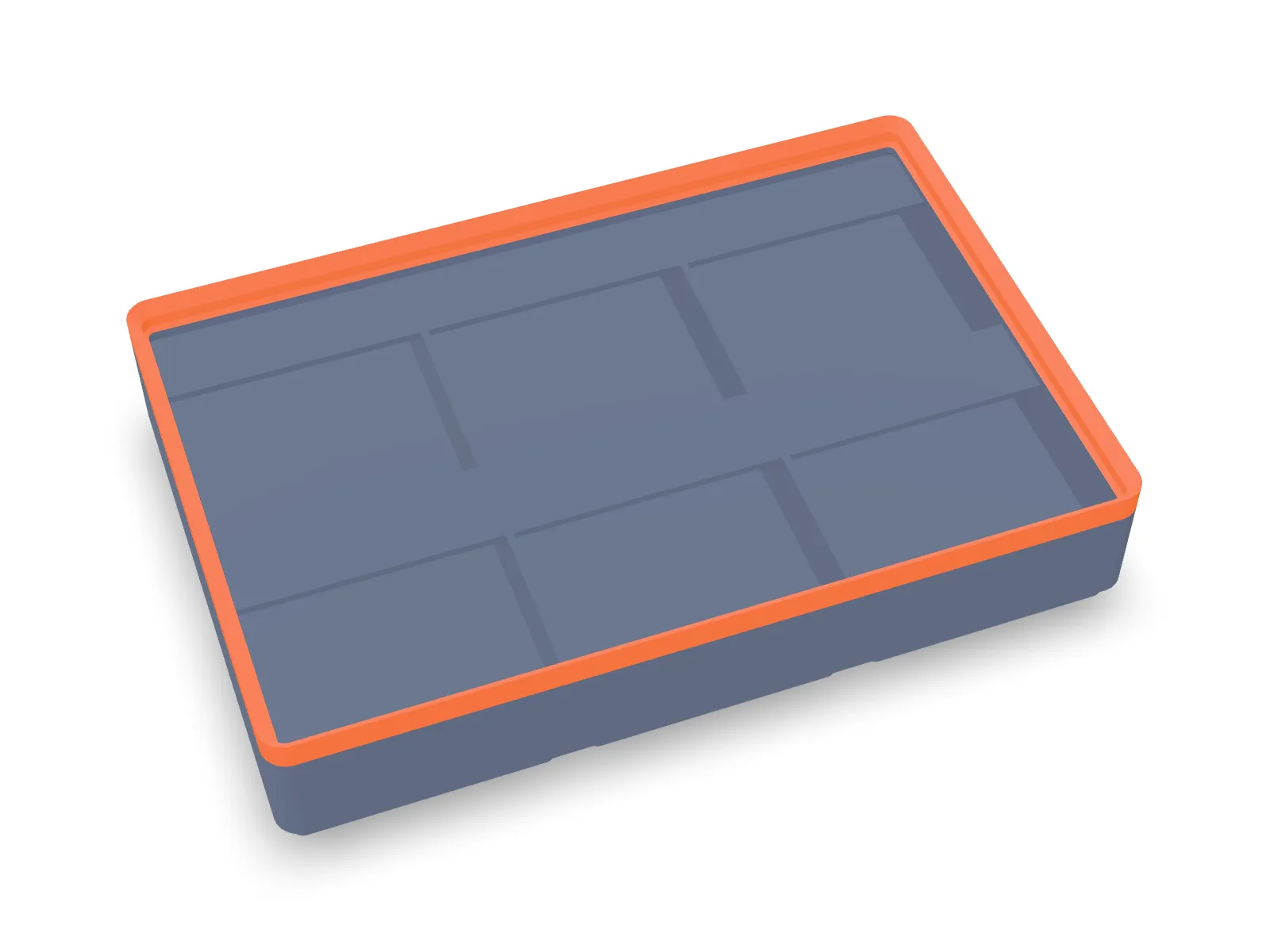

Bins drop into a baseplate on a 42 mm grid and stack on each other. Each bin can have dividers, a label shelf that prints without supports, and holes for 6 x 2 mm magnets. Every size follows the Gridfinity specification, so the parts fit other Gridfinity bins and baseplates.
What you can change
- Width and depth in 42 mm grid units
- Height in 7 mm units
- Dividers in each direction
- Label shelf
- Magnet and screw holes
- Stacking lip
- Baseplate size
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Gridfinity-compatible storage bins, PLA Basic | 4 | 8.6 | 332.0 |
| Total | 4 | 8.6 | 332.0 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
In the room

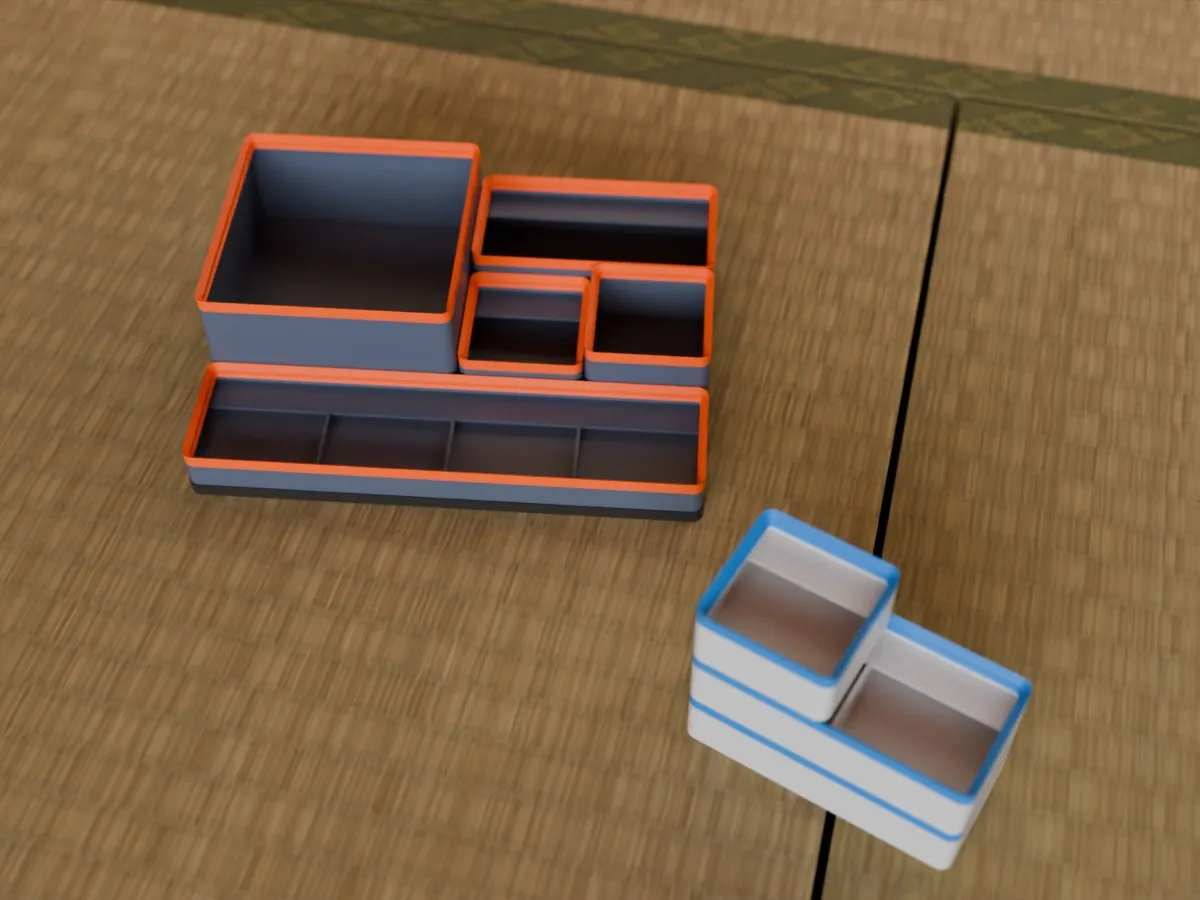

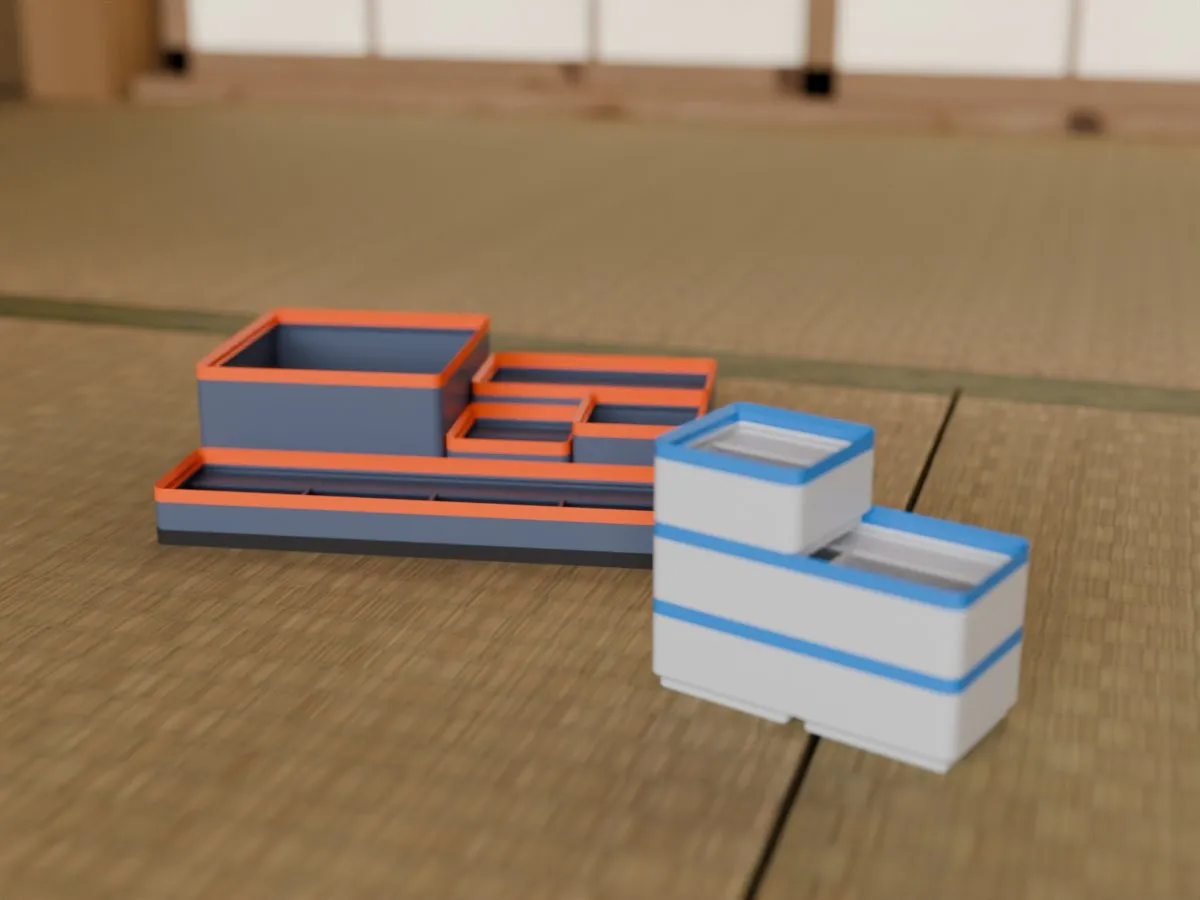

Some renders show this model in another colourway.
Credits and licence
Gridfinity is Zack Freedman's open system, released under the MIT licence.
The dimensions follow Kenneth Hodson's MIT-licensed gridfinity-rebuilt-openscad (https://github.com/kennetek/gridfinity-rebuilt-openscad). None of its files are included.
