Axolotl flexi keychain
A pink chibi axolotl that wiggles on four print-in-place joints and hangs from your keys.
- Pieces
- 5, with 4 print-in-place joints
- Size
- 86 x 46 x 6.9 mm
- Print time
- 0.7 h on 2 plates
- Filament
- 10.8 g
Colourway
- Pink main
- Jade white second
- Black accent
About the design

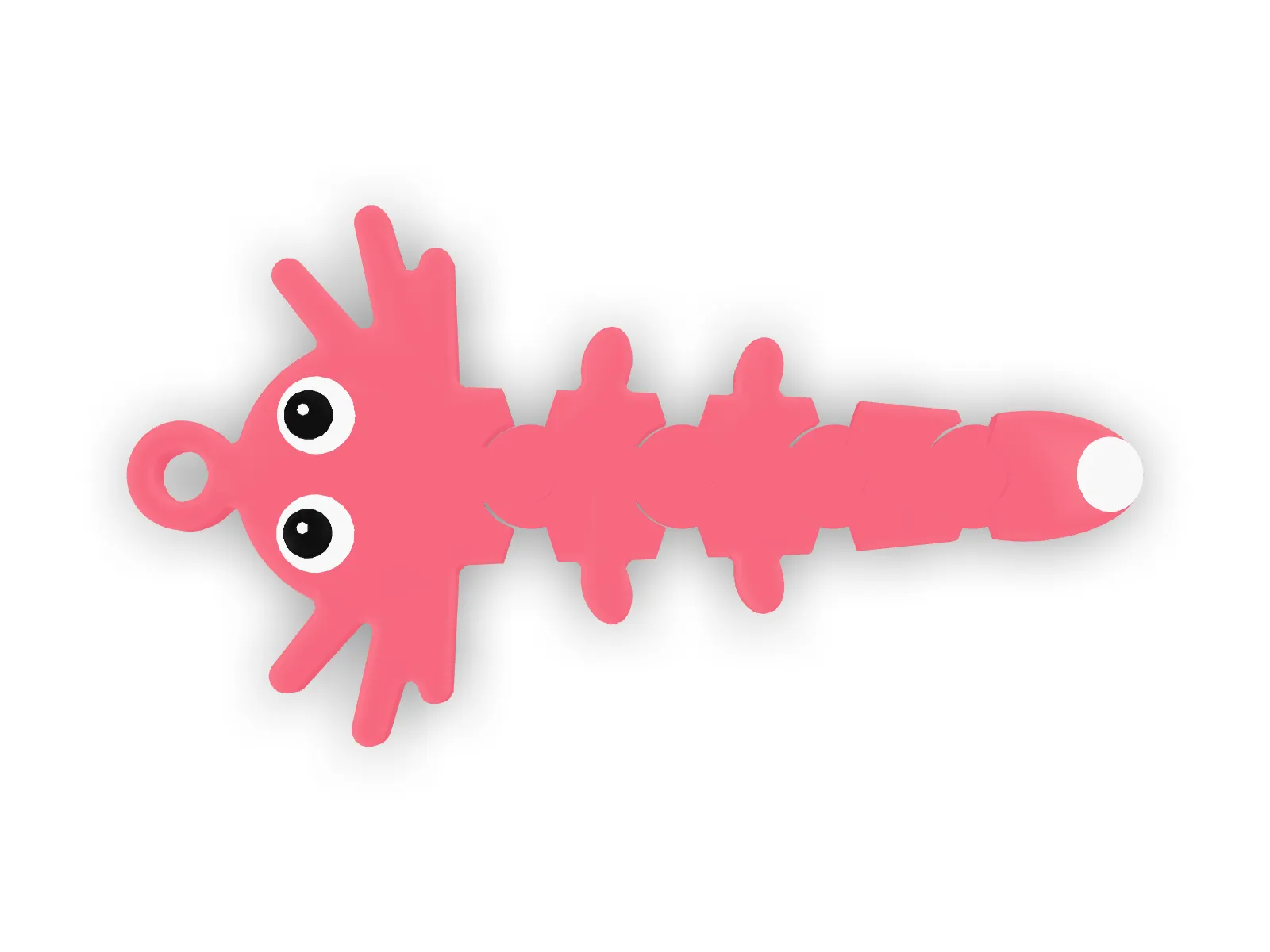

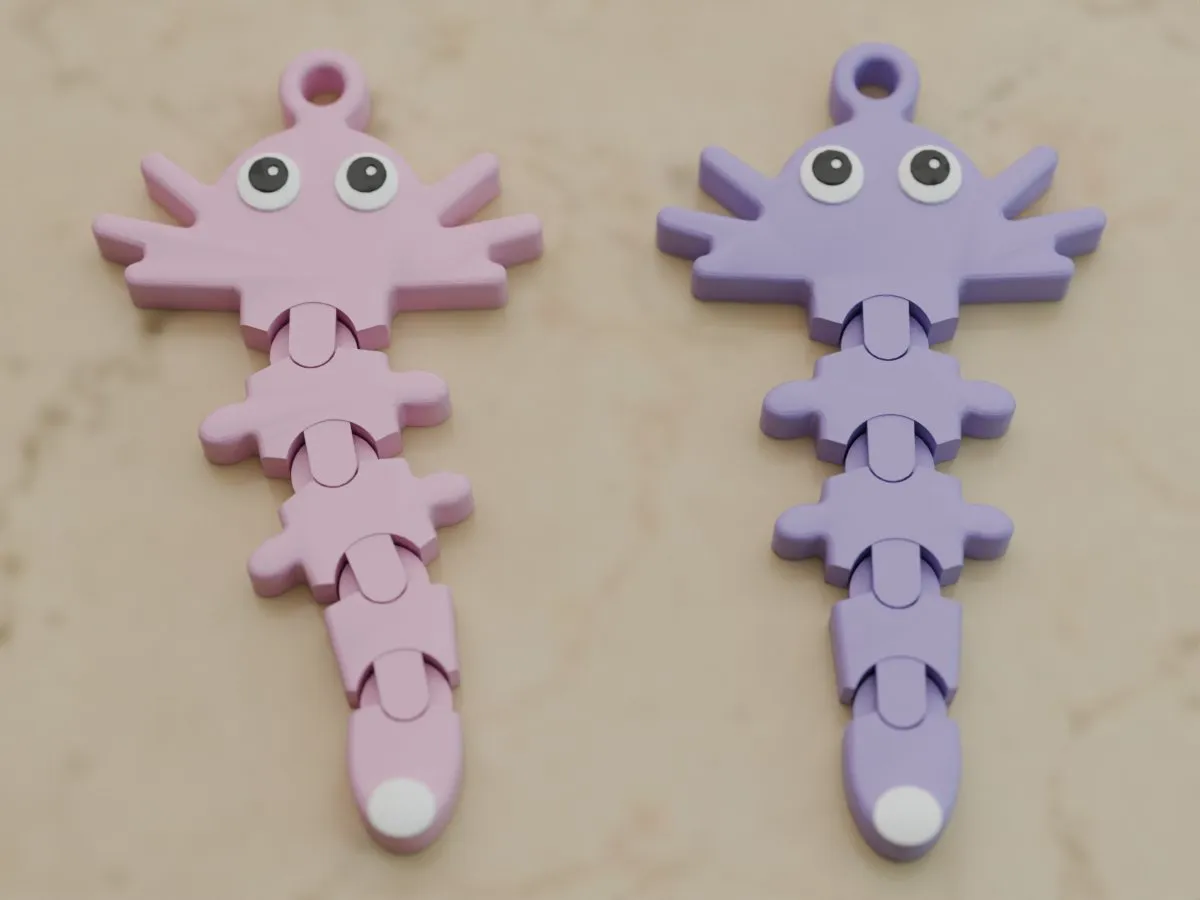

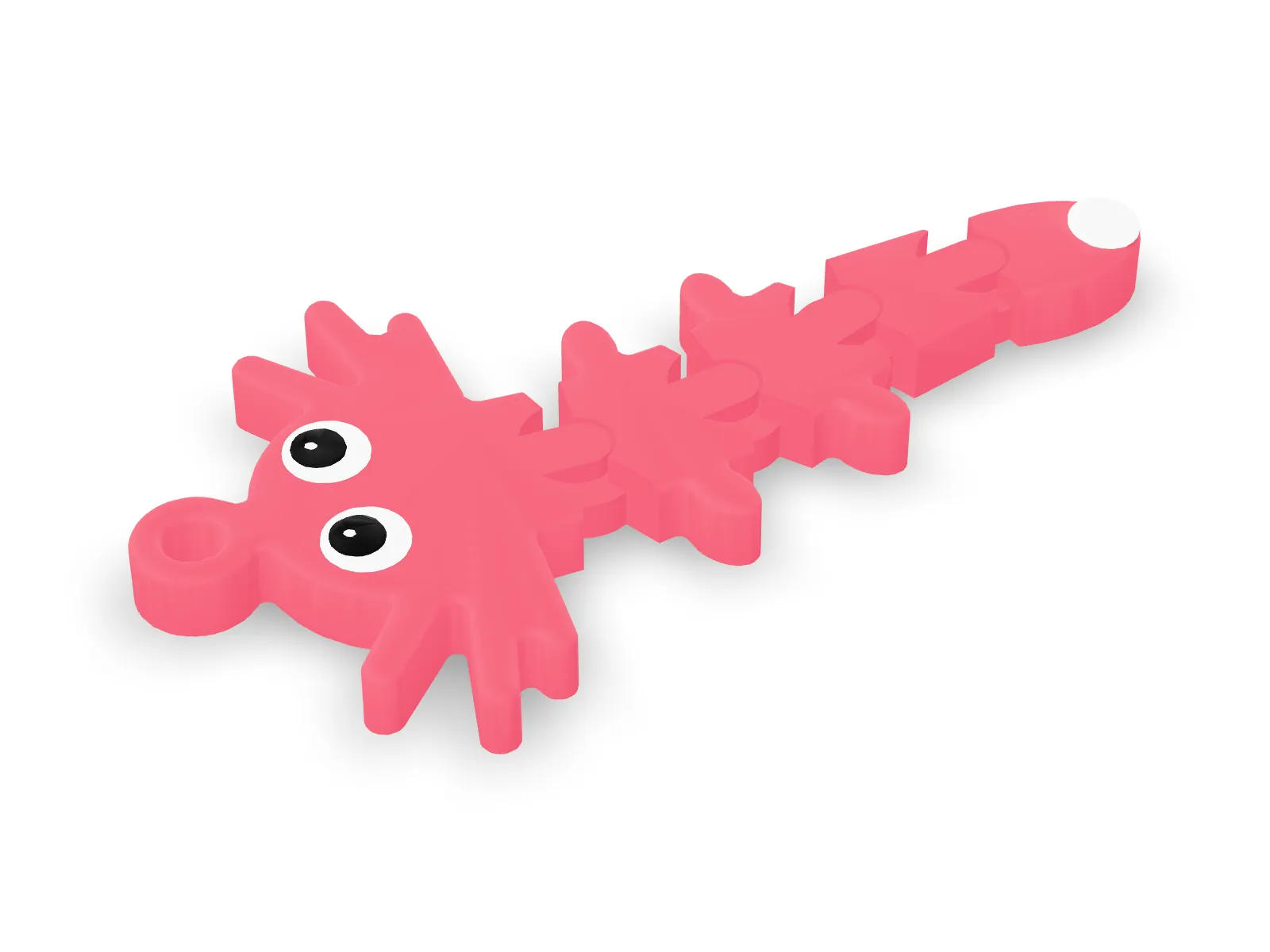

A round-headed axolotl with feathery gills, big shining eyes, four stubby legs and a finned tail, in five pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart and the body swings 30 degrees each way at every joint. It prints flat in one go with no supports and no brim, in pink with white eye patches and tail tip and black pupils, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 5, with 4 print-in-place joints
- Size
- 86 x 46 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 30 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Axolotl flexi keychain, PLA Basic | 2 | 0.7 | 10.8 |
| Total | 2 | 0.7 | 10.8 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
