Dachshund flexi keychain
A long black-and-tan sausage dog that wiggles on five print-in-place joints and hangs from your keys.
- Pieces
- 6, with 5 print-in-place joints
- Size
- 102 x 33 x 6.9 mm
- Print time
- 0.7 h on 2 plates
- Filament
- 11.5 g
Colourway
- Black main
- Gold second
- Red accent
About the design

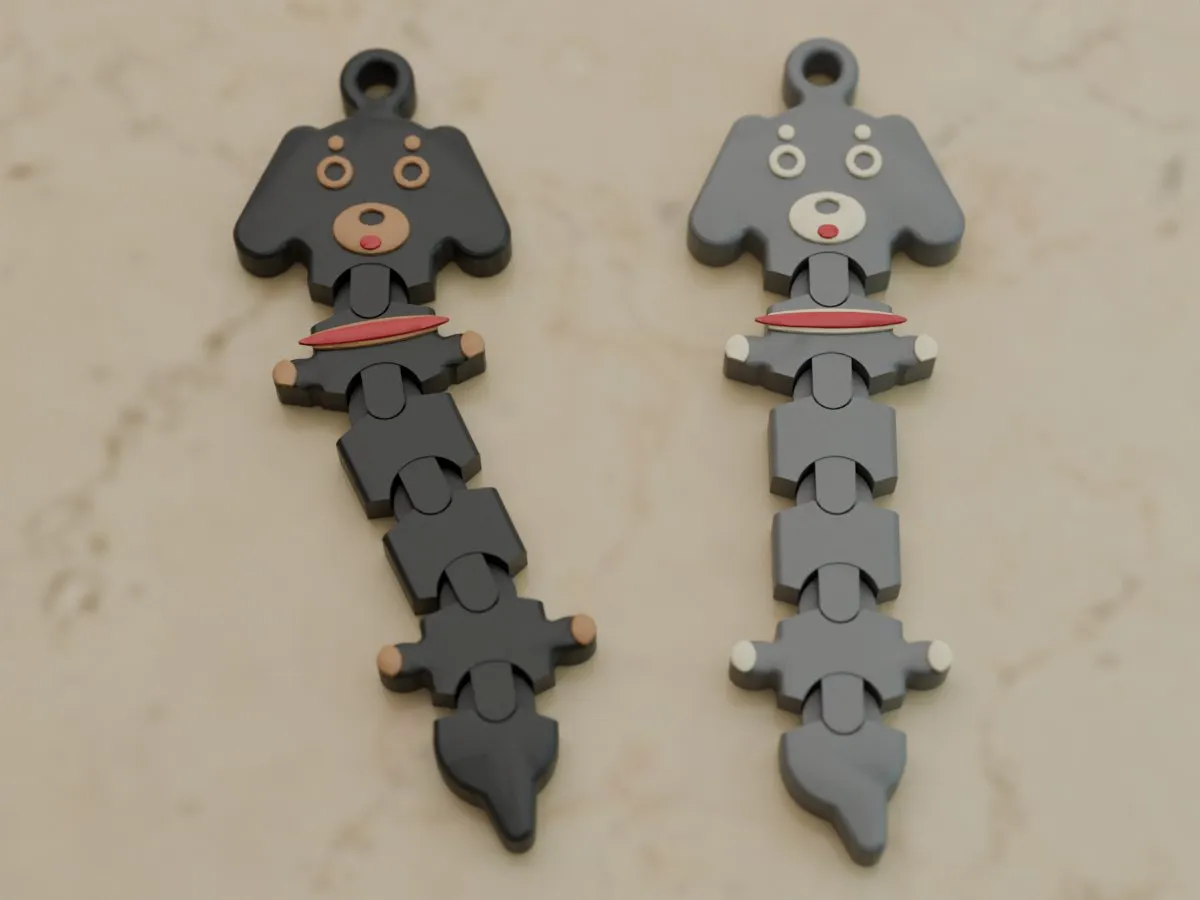

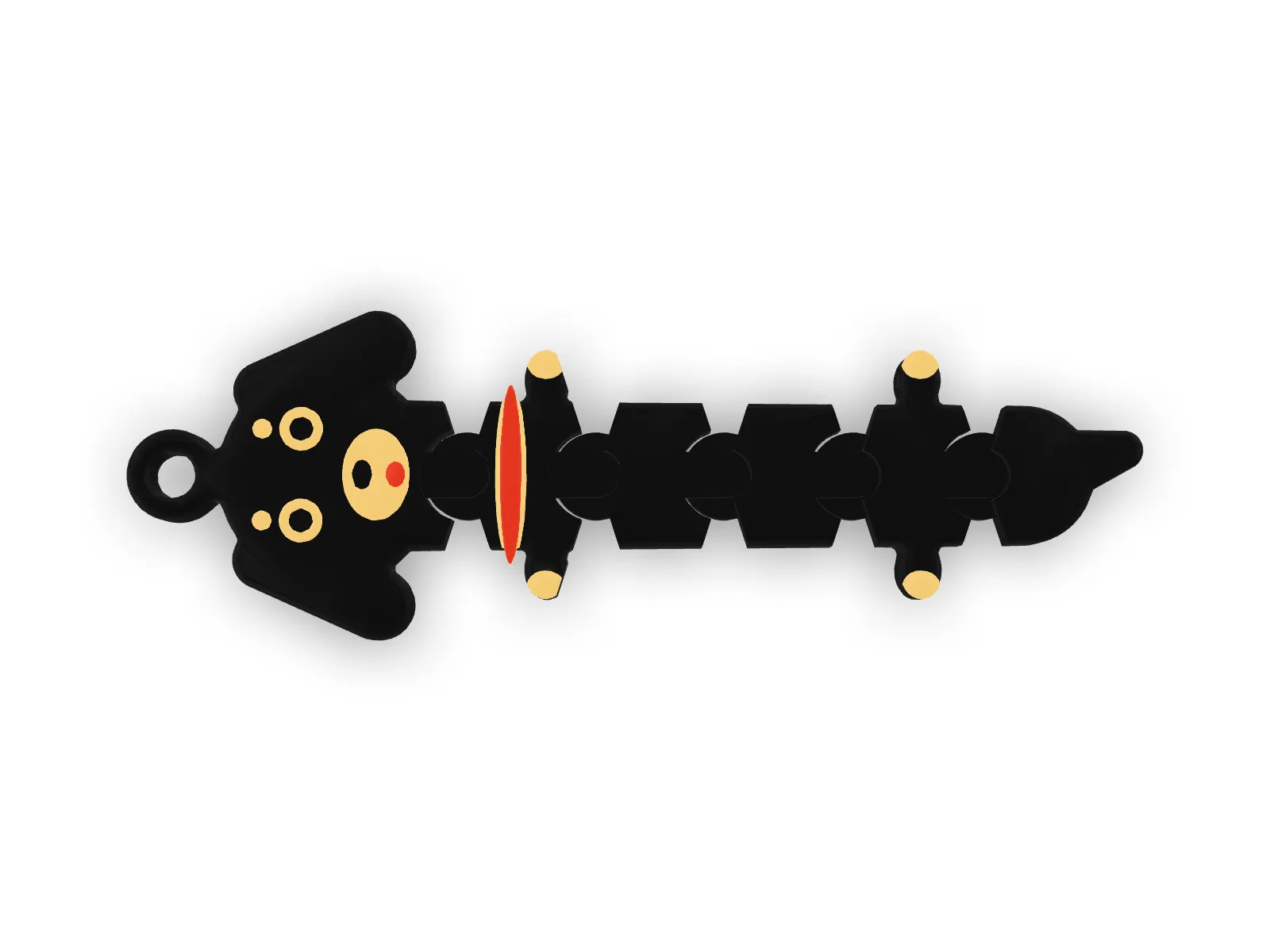

A black-and-tan dachshund with floppy ears, tan-ringed eyes, a tan muzzle with a red tongue, a red collar, four short tan-tipped legs and a long body in four pieces, in six pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 30 degrees each way. It prints flat in one go with no supports and no brim, in black with tan eyes, muzzle and paws and a red collar and tongue, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 6, with 5 print-in-place joints
- Size
- 102 x 33 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 30 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Dachshund flexi keychain, PLA Basic | 2 | 0.7 | 11.5 |
| Total | 2 | 0.7 | 11.5 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
