Capybara flexi keychain
A calm round capybara with a yuzu on its head that wiggles on three print-in-place joints.
- Pieces
- 4, with 3 print-in-place joints
- Size
- 77 x 31 x 6.9 mm
- Print time
- 0.7 h on 2 plates
- Filament
- 12.5 g
Colourway
- Gold main
- Dark gray second
- Orange accent
About the design

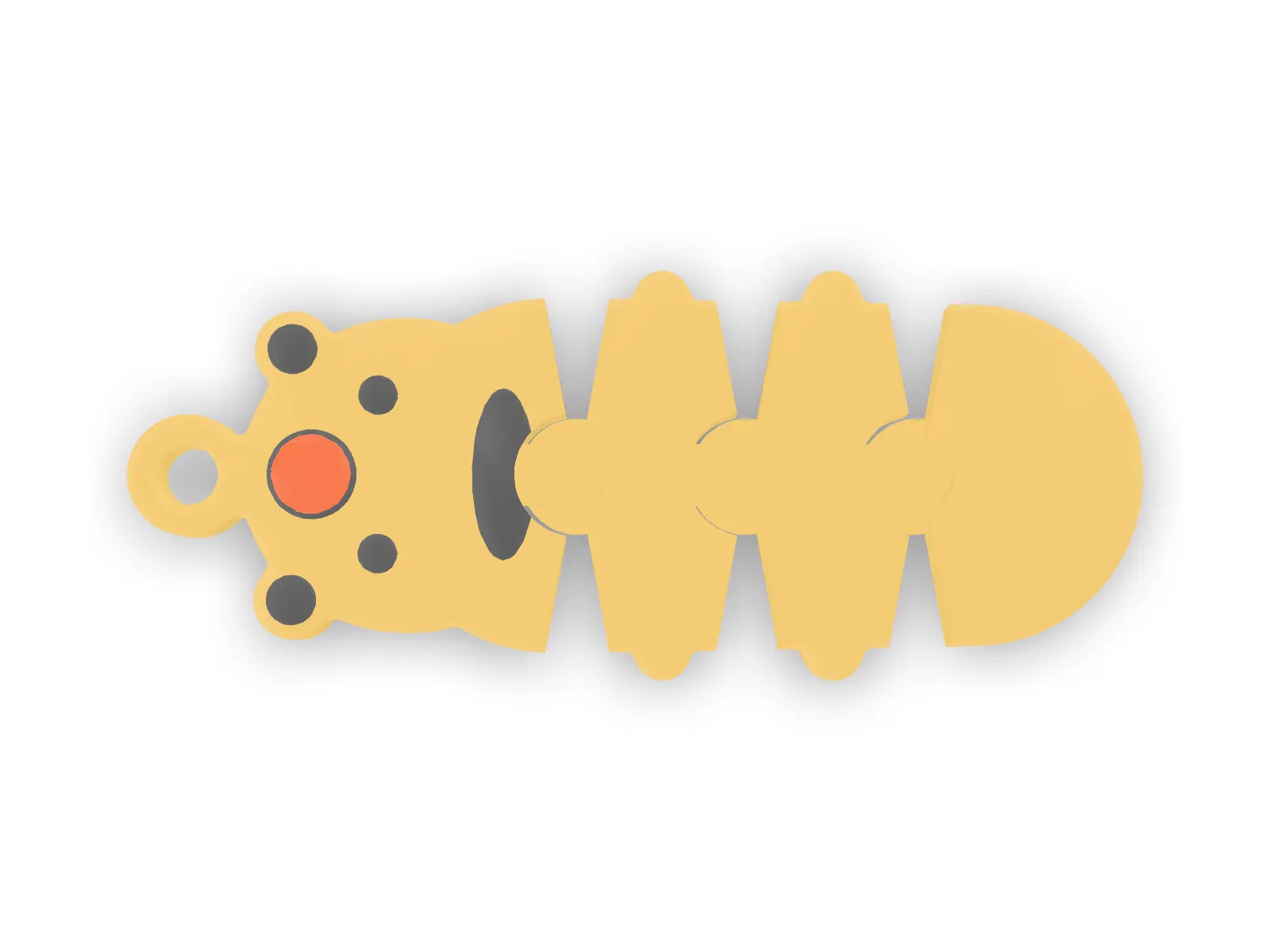

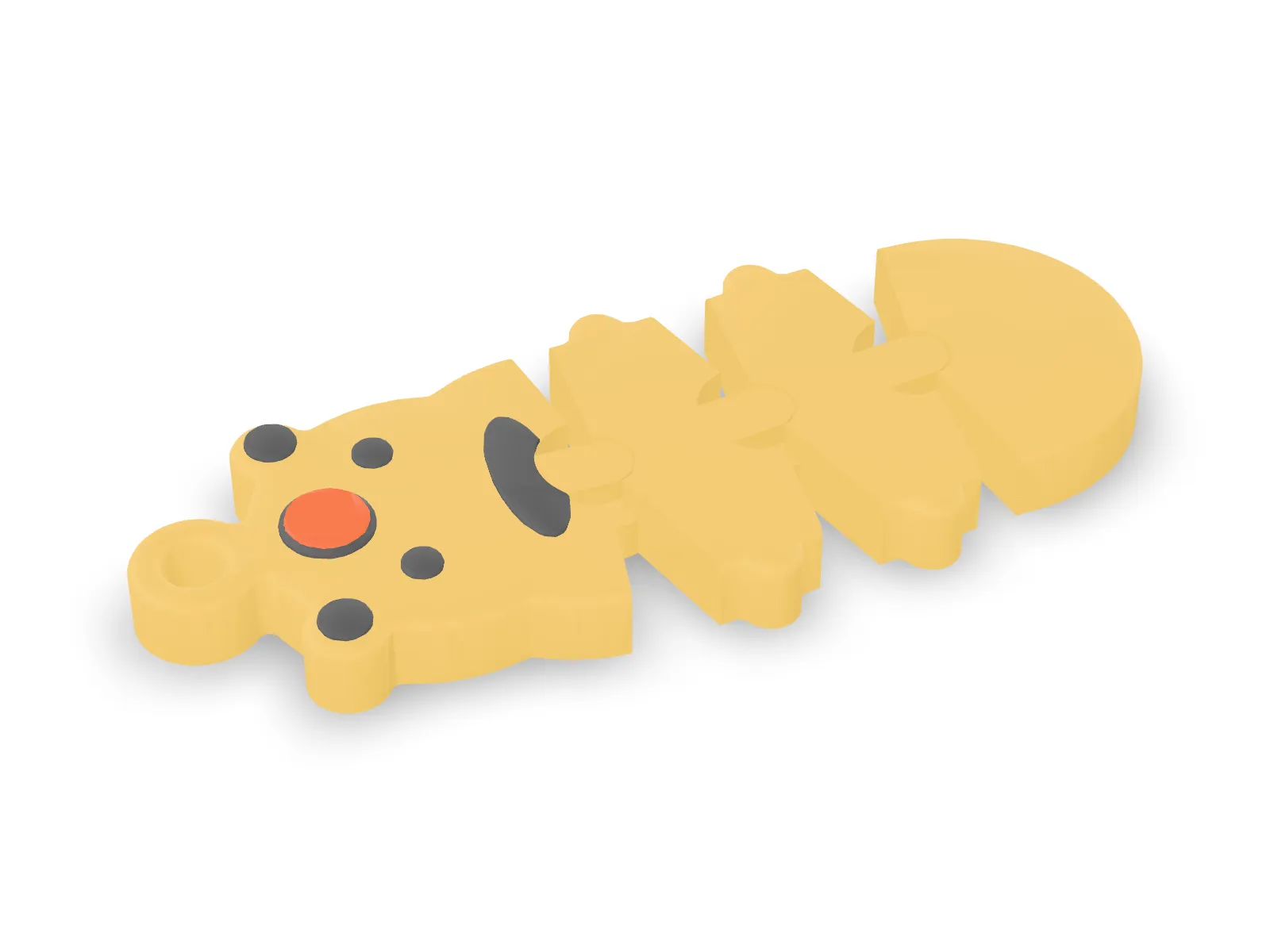

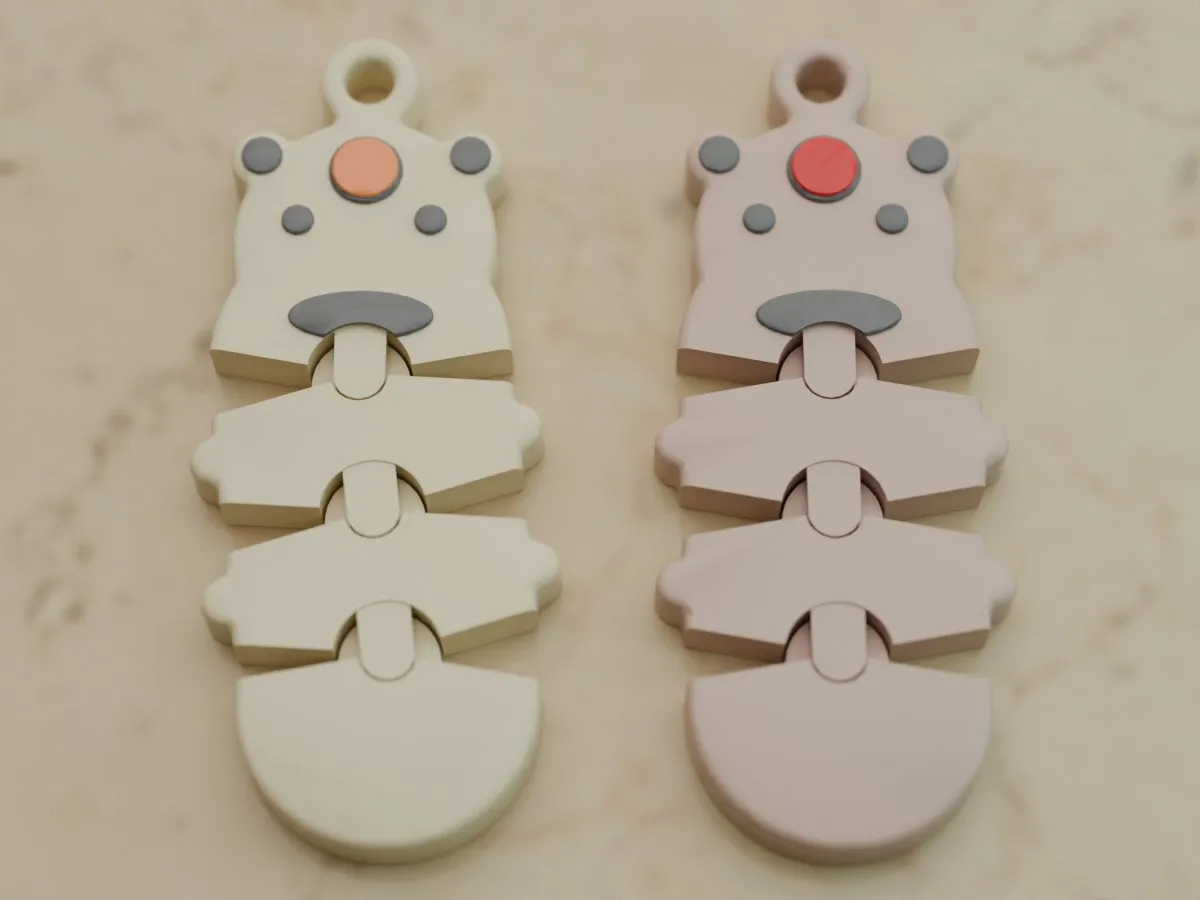

A round, calm capybara with small dark ears, beady eyes, a big dark snout, four stubby dark feet and a little yuzu on its head, in four pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 30 degrees each way. It prints flat in one go with no supports and no brim, in gold with dark gray ears, eyes, snout and toes, and an orange yuzu, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 4, with 3 print-in-place joints
- Size
- 77 x 31 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 15 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Capybara flexi keychain, PLA Basic | 2 | 0.7 | 12.5 |
| Total | 2 | 0.7 | 12.5 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
