Octopus flexi keychain
A purple chibi octopus whose four tentacles wiggle on eight print-in-place joints.
- Pieces
- 9, with 8 print-in-place joints
- Size
- 61 x 81 x 6.9 mm
- Print time
- 1.0 h on 2 plates
- Filament
- 16.7 g
Colourway
- Purple main
- Jade white second
- Black accent
About the design

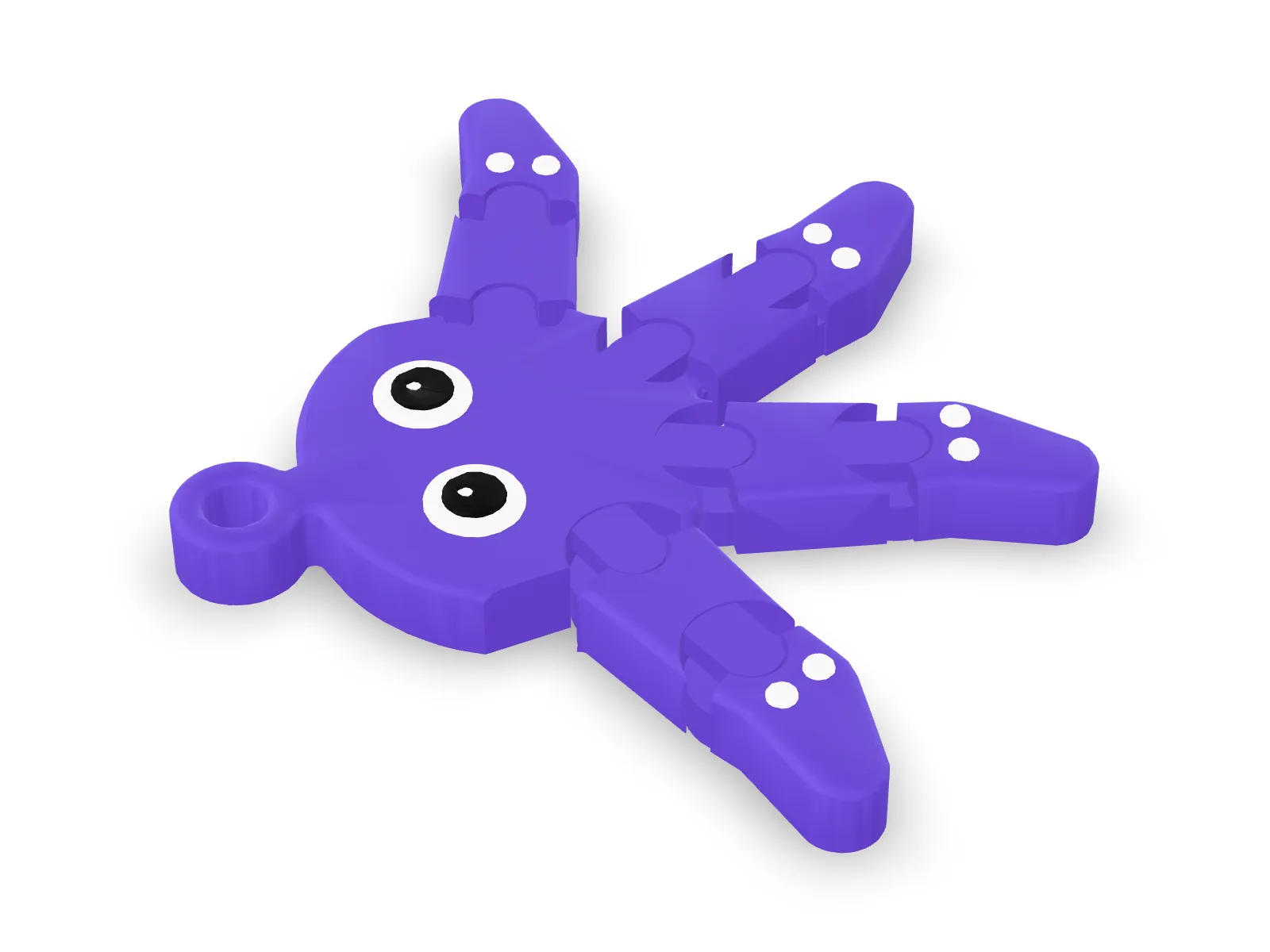

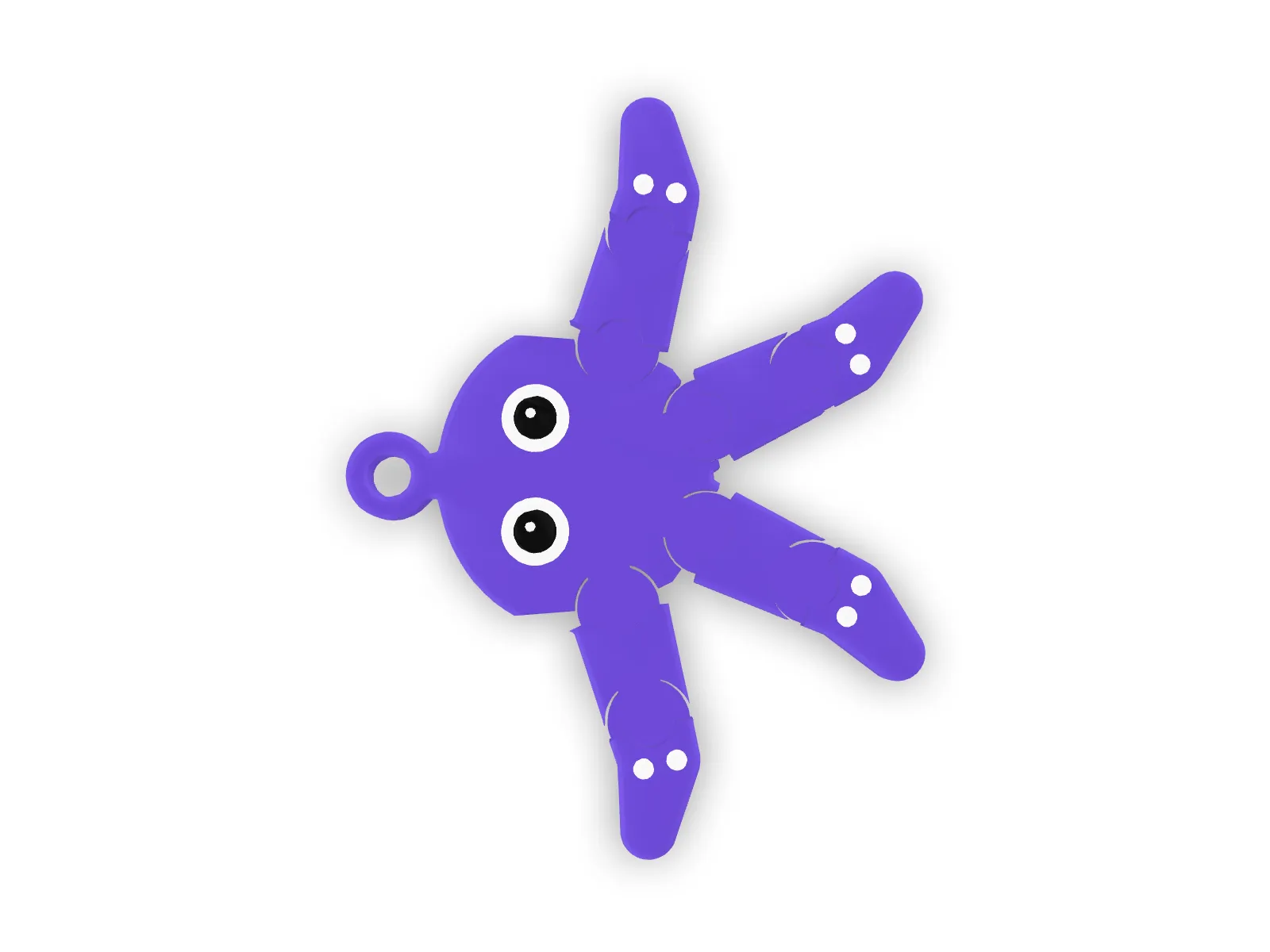

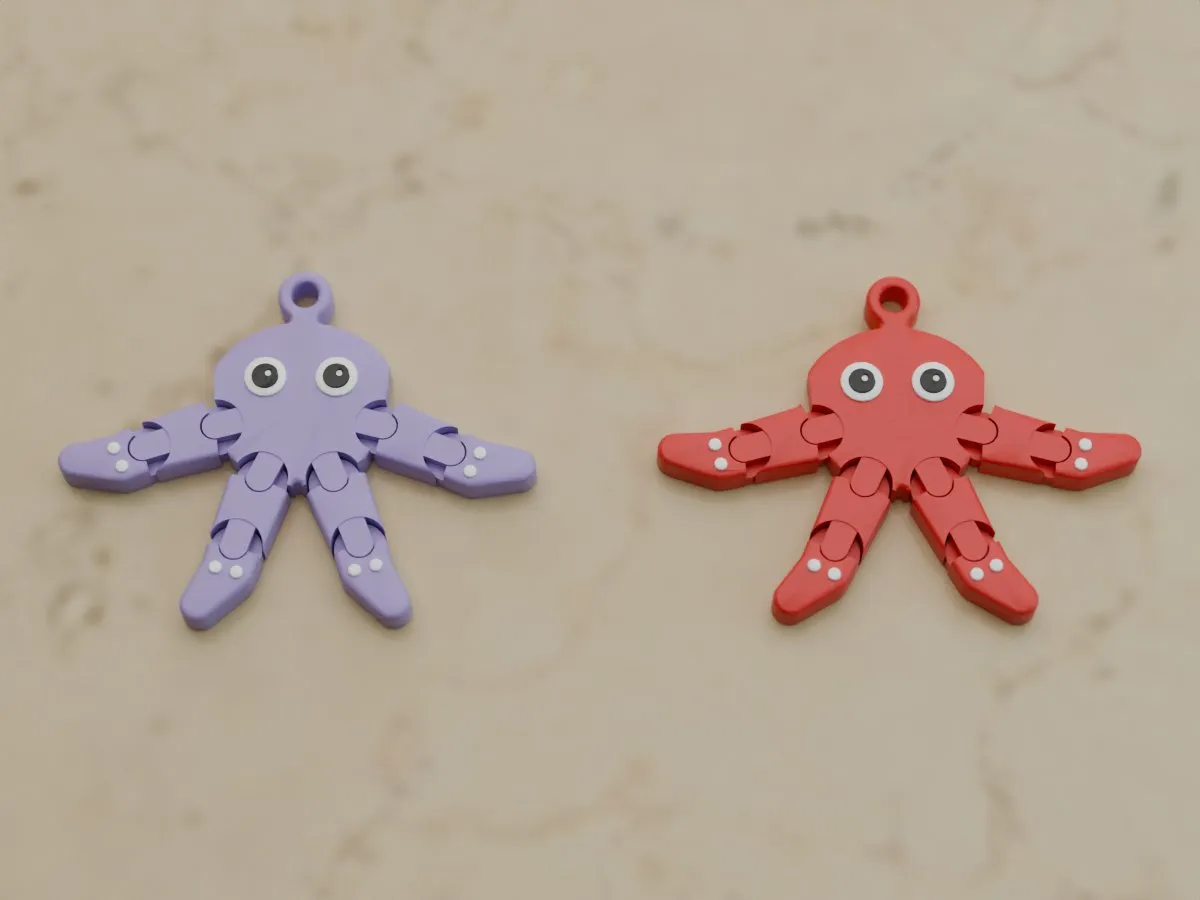

A round-headed purple octopus with big shining eyes and four tentacles that fan out below it, each in two pieces with white suckers near its curled tip, in nine pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 15 degrees each way. It prints flat in one go with no supports and no brim, in purple with white eye patches and suckers and black pupils, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 9, with 8 print-in-place joints
- Size
- 61 x 81 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 15 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Octopus flexi keychain, PLA Basic | 2 | 1.0 | 16.7 |
| Total | 2 | 1.0 | 16.7 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
