Gecko flexi keychain
A green day gecko with yellow spots and toe pads that wiggles on five print-in-place joints.
- Pieces
- 6, with 5 print-in-place joints
- Size
- 103 x 33 x 6.9 mm
- Print time
- 0.8 h on 2 plates
- Filament
- 12.3 g
Colourway
- Bambu green main
- Yellow second
- Black accent
About the design

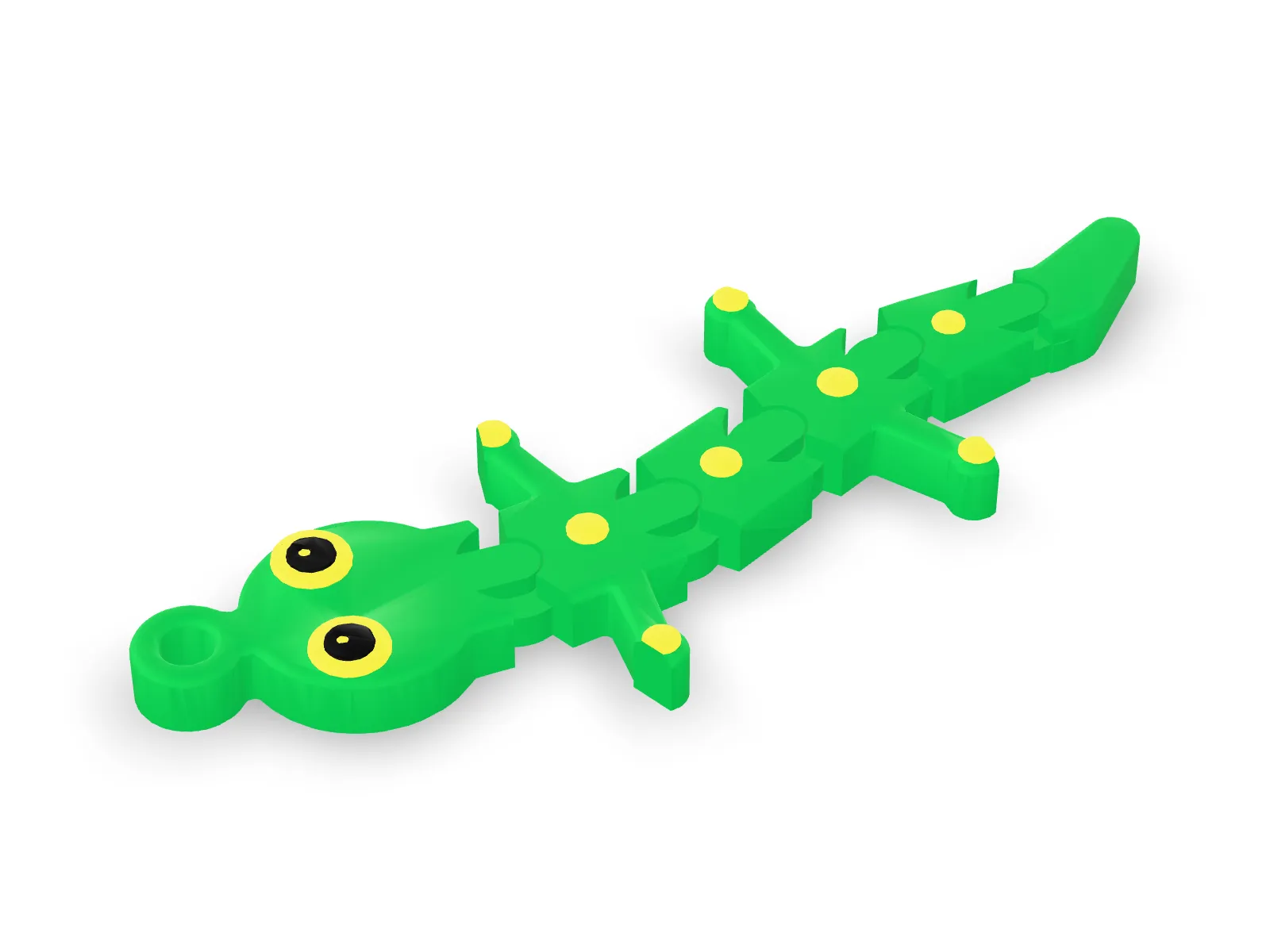

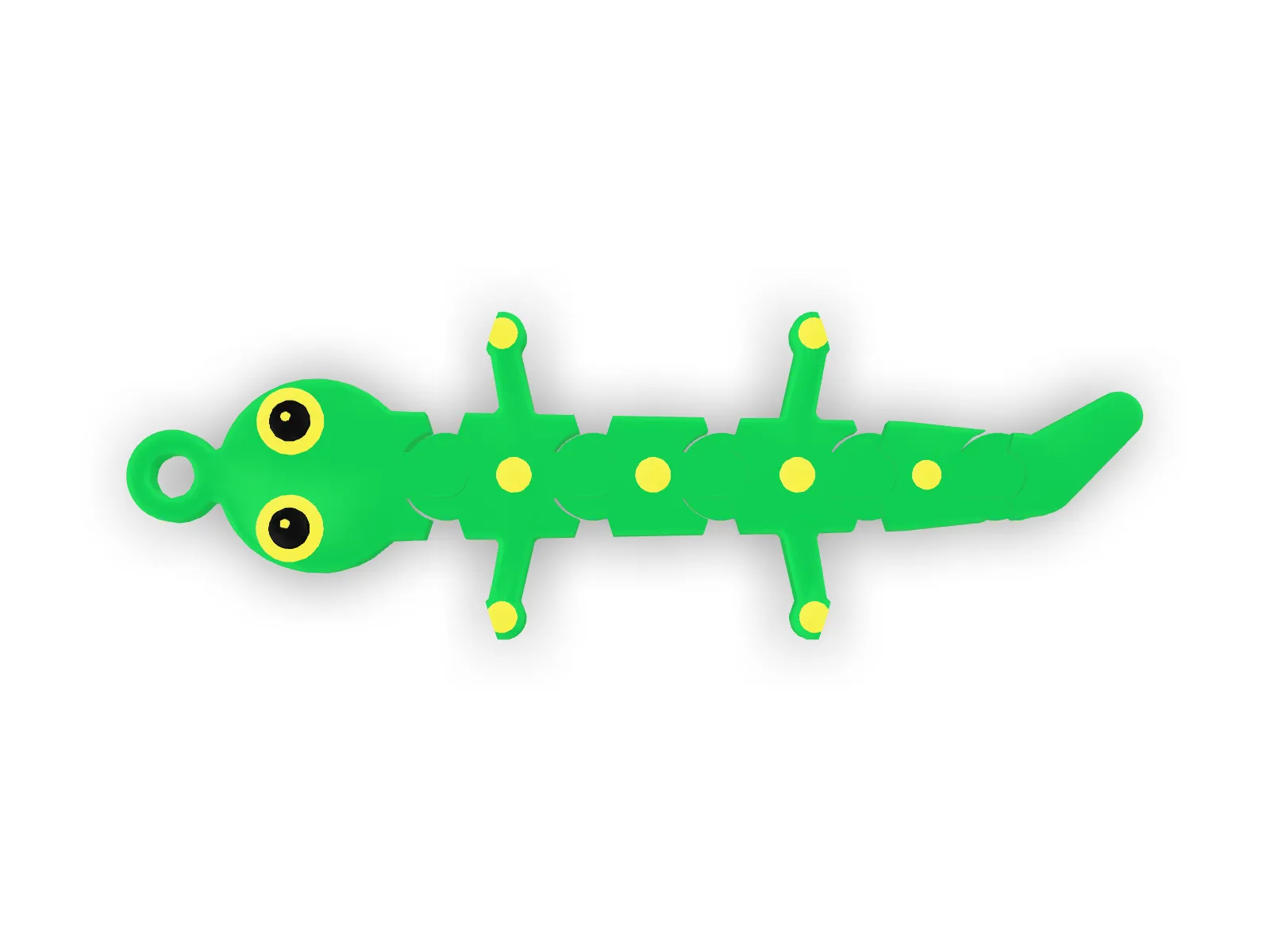

A green day gecko with big yellow eyes, four splayed legs ending in round yellow toe pads, yellow spots down its back and a curled tail, in six pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 30 degrees each way. It prints flat in one go with no supports and no brim, in green with yellow eyes, spots and toe pads and black pupils, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 6, with 5 print-in-place joints
- Size
- 103 x 33 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 30 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Gecko flexi keychain, PLA Basic | 2 | 0.8 | 12.3 |
| Total | 2 | 0.8 | 12.3 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
