Shark flexi keychain
A smiling cyan shark that wiggles on four print-in-place joints and hangs from your keys.
- Pieces
- 5, with 4 print-in-place joints
- Size
- 88 x 33 x 6.9 mm
- Print time
- 0.7 h on 2 plates
- Filament
- 9.7 g
Colourway
- Cyan main
- Jade white second
- Black accent
About the design

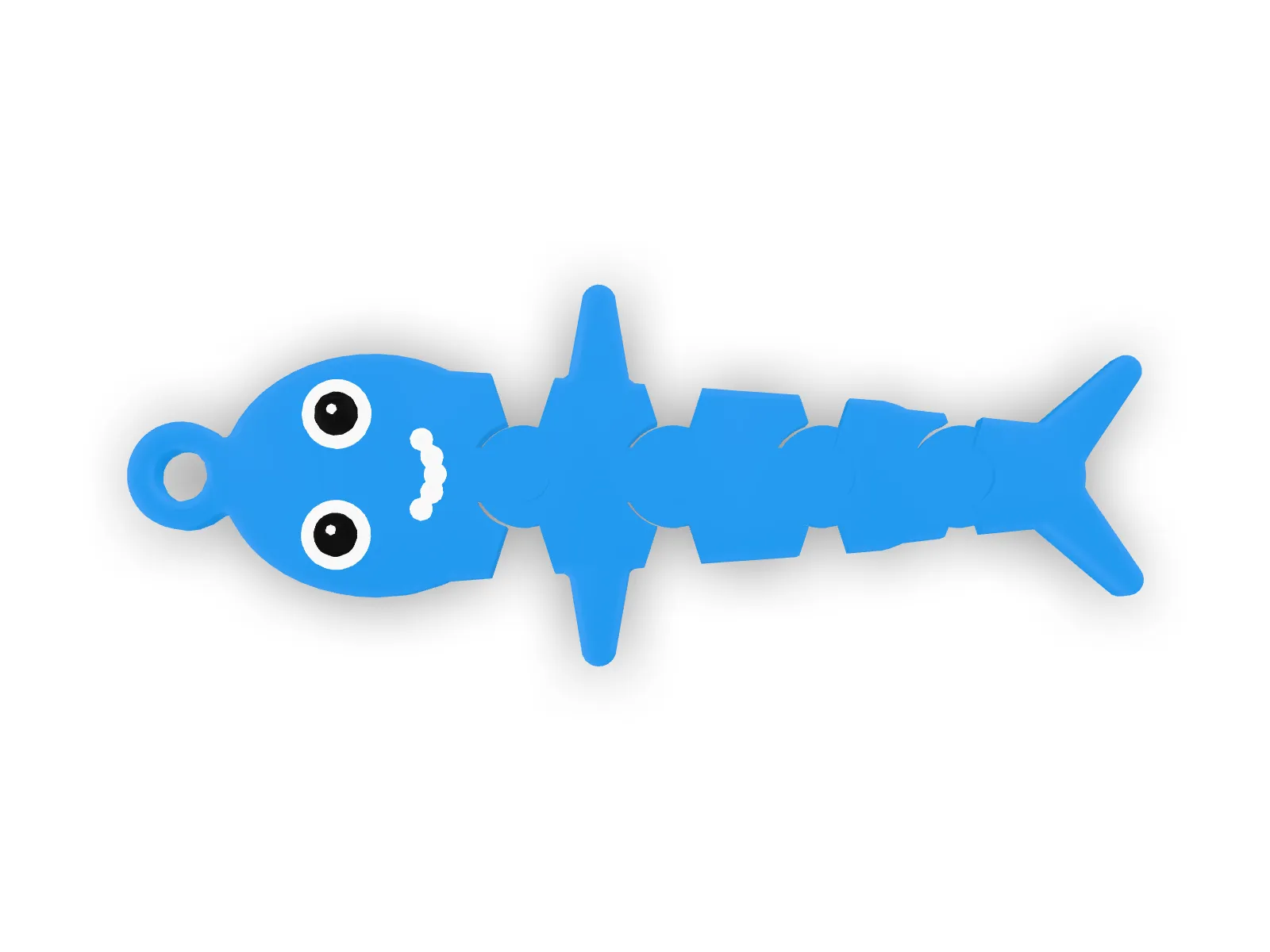

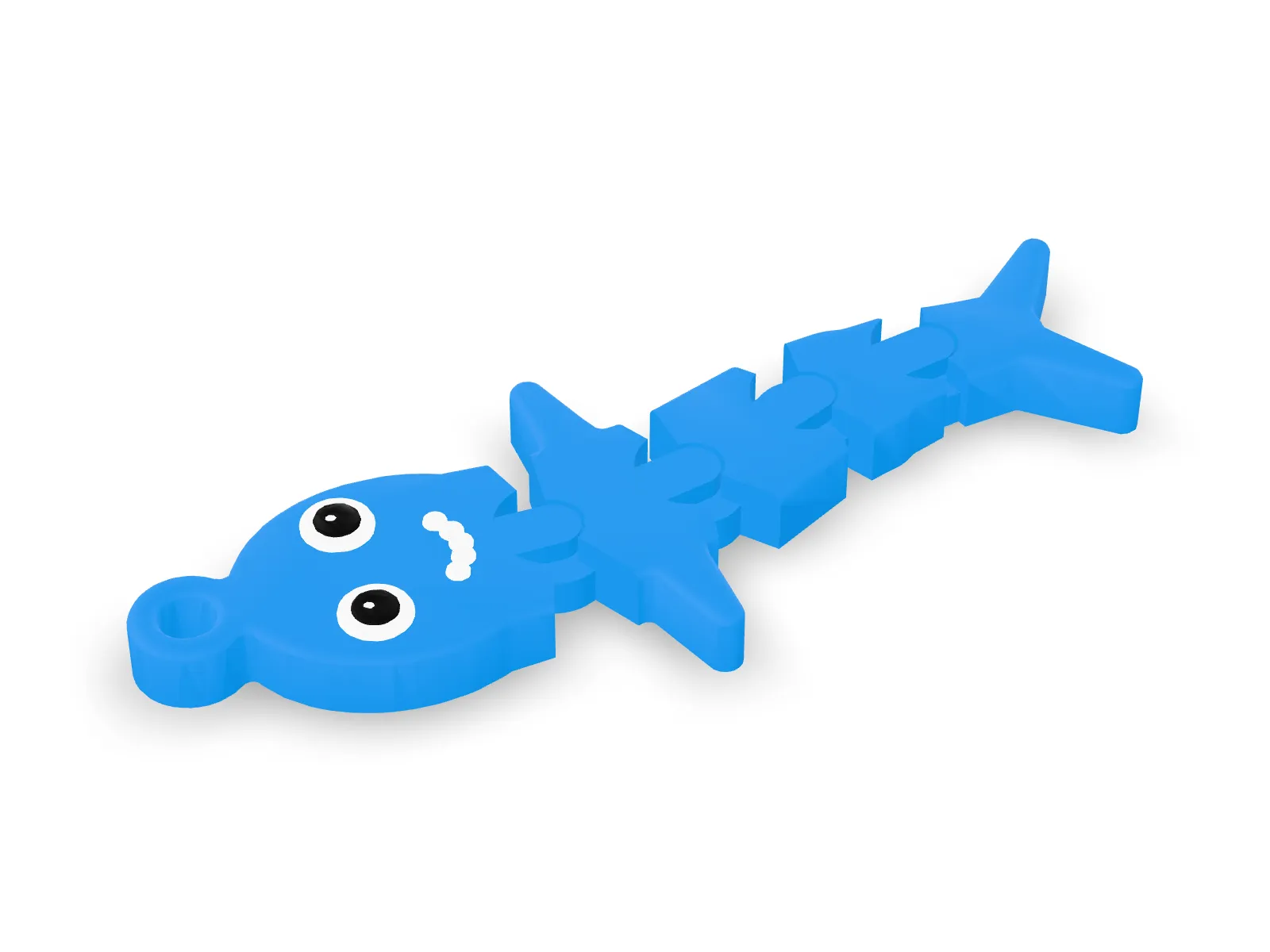

A round-snouted cyan shark with big shining eyes, a white smile, two pectoral fins, a slim tail stalk and a forked tail fin, in five pieces joined by captive joints that print in place. Each joint is a post with a wide foot held under a 45 degree roof in the next piece's collar, with a 0.30 mm gap, so the pieces cannot pull apart, and each swings 30 degrees each way. It prints flat in one go with no supports and no brim, in cyan with white eye patches and smile and black pupils, each colour a raised layer on the one below.
What you can change
- Overall size
- Keyring hole for a split ring, ball chain or cord
- Joint clearance for your printer
Specifications
- Pieces
- 5, with 4 print-in-place joints
- Size
- 88 x 33 x 6.9 mm
- Joint gap
- 0.30 mm
- Swing per joint (deg)
- 30 each way
- Keyring hole
- 4.5 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Shark flexi keychain, PLA Basic | 2 | 0.7 | 9.7 |
| Total | 2 | 0.7 | 9.7 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
- Licence
- All rights reserved
