Hannya demon mask
A full-face hannya with a wide fanged grin, tusks and gold crescent horns, sized to a real face.
- Width x height x depth with the horns
- 163 x 256 x 114 mm
- Fits a face, chin to bridge of the nose
- 134 mm
- Print time
- 12.1 h on 2 plates
- Filament
- 310.6 g
Colourway
- Red main
- Black second
- Gold accent
About the design

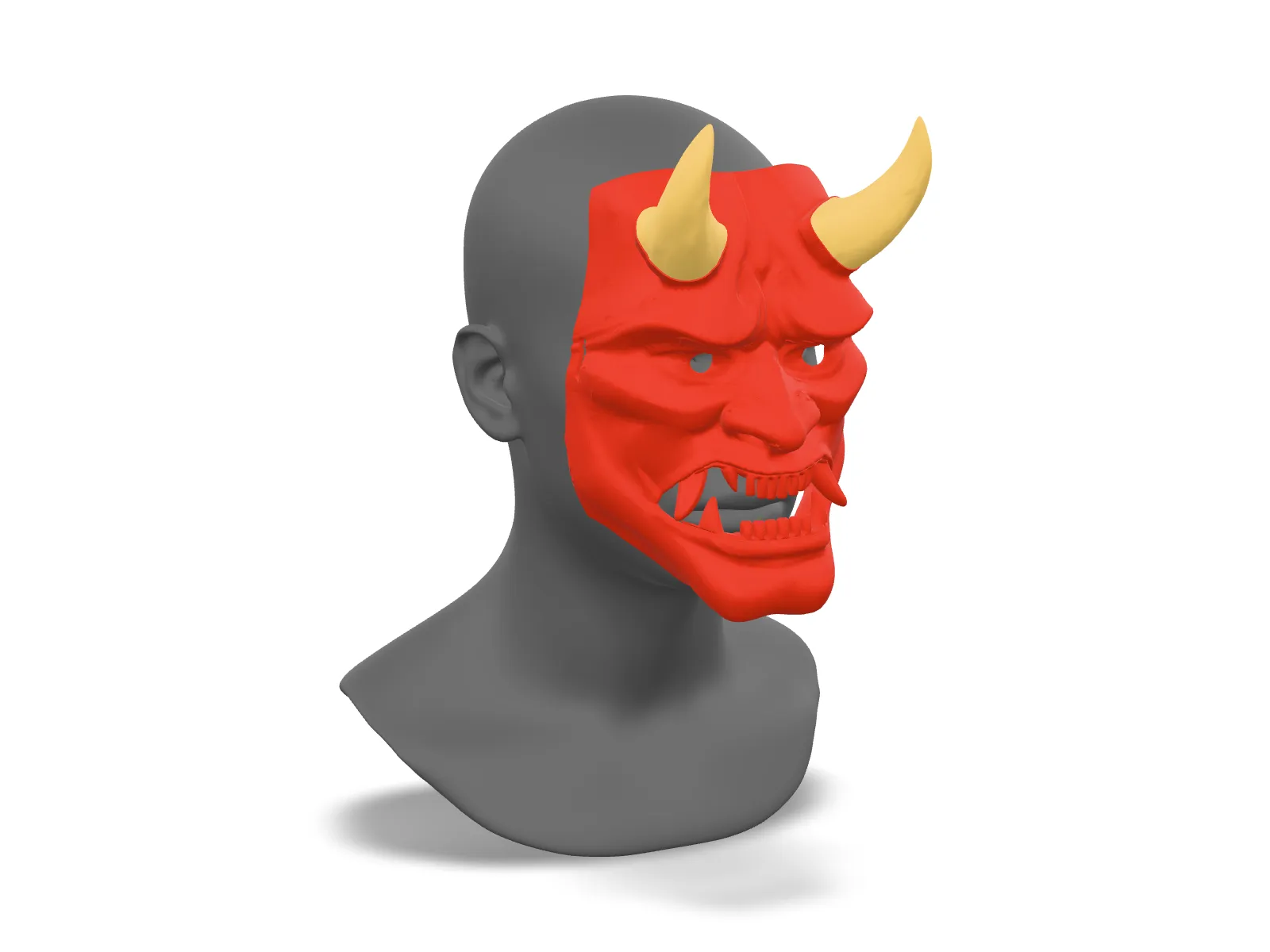

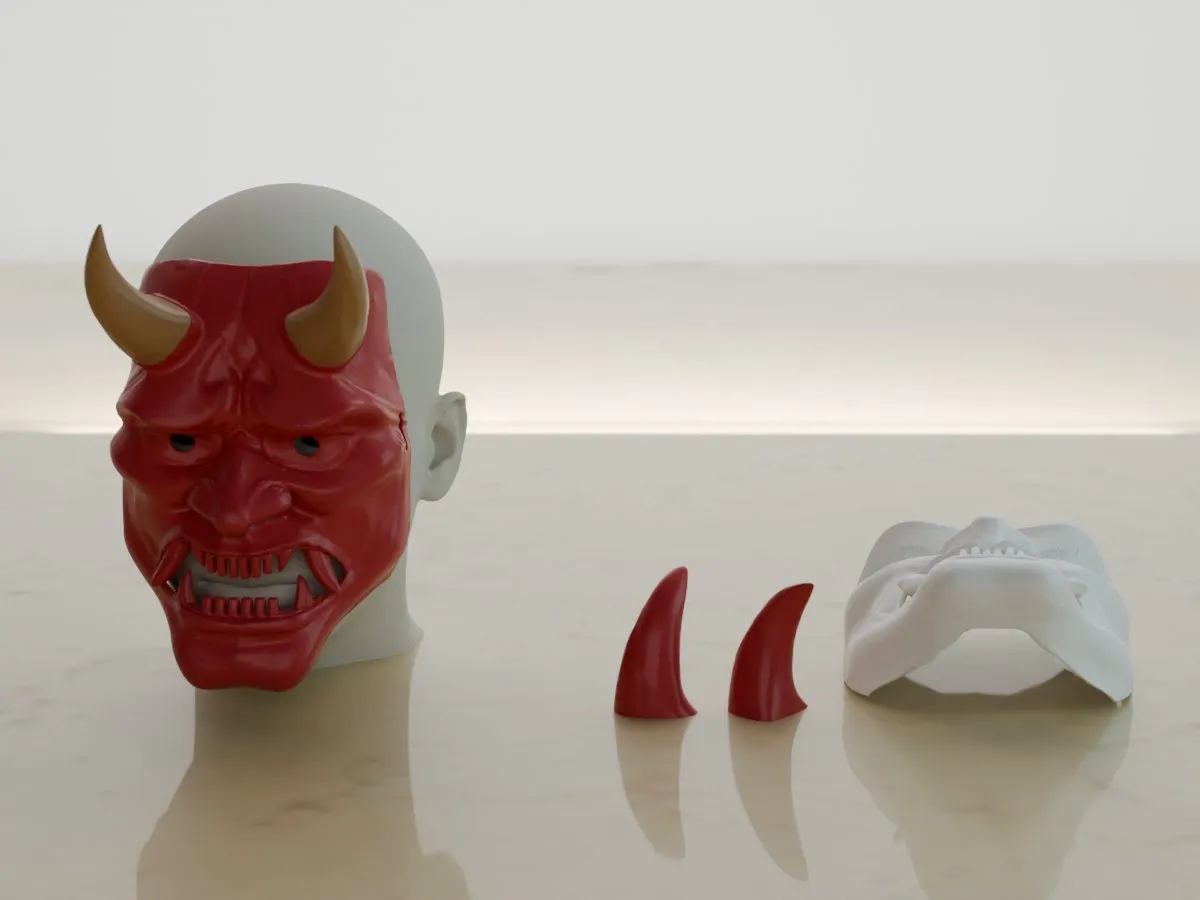

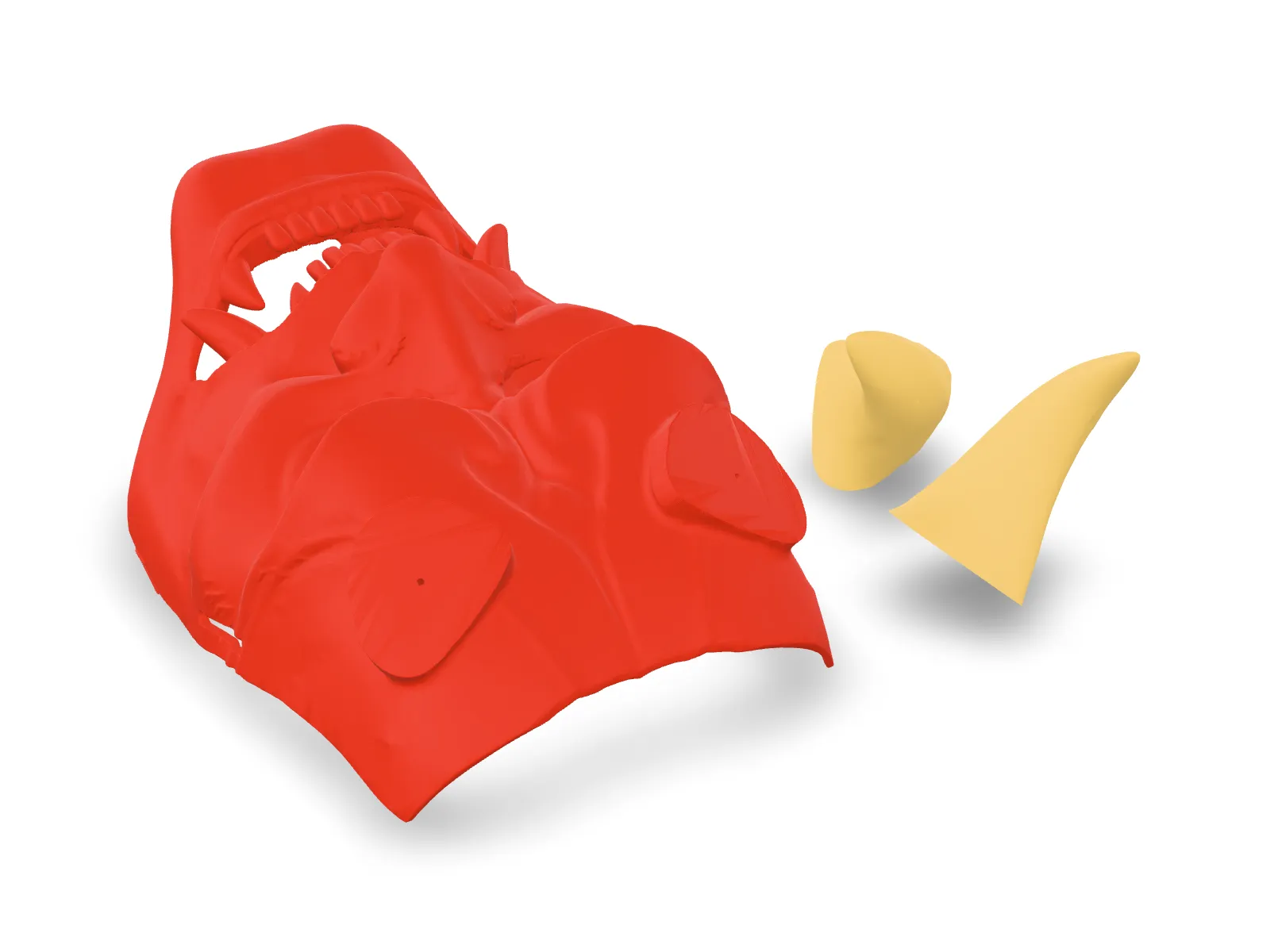

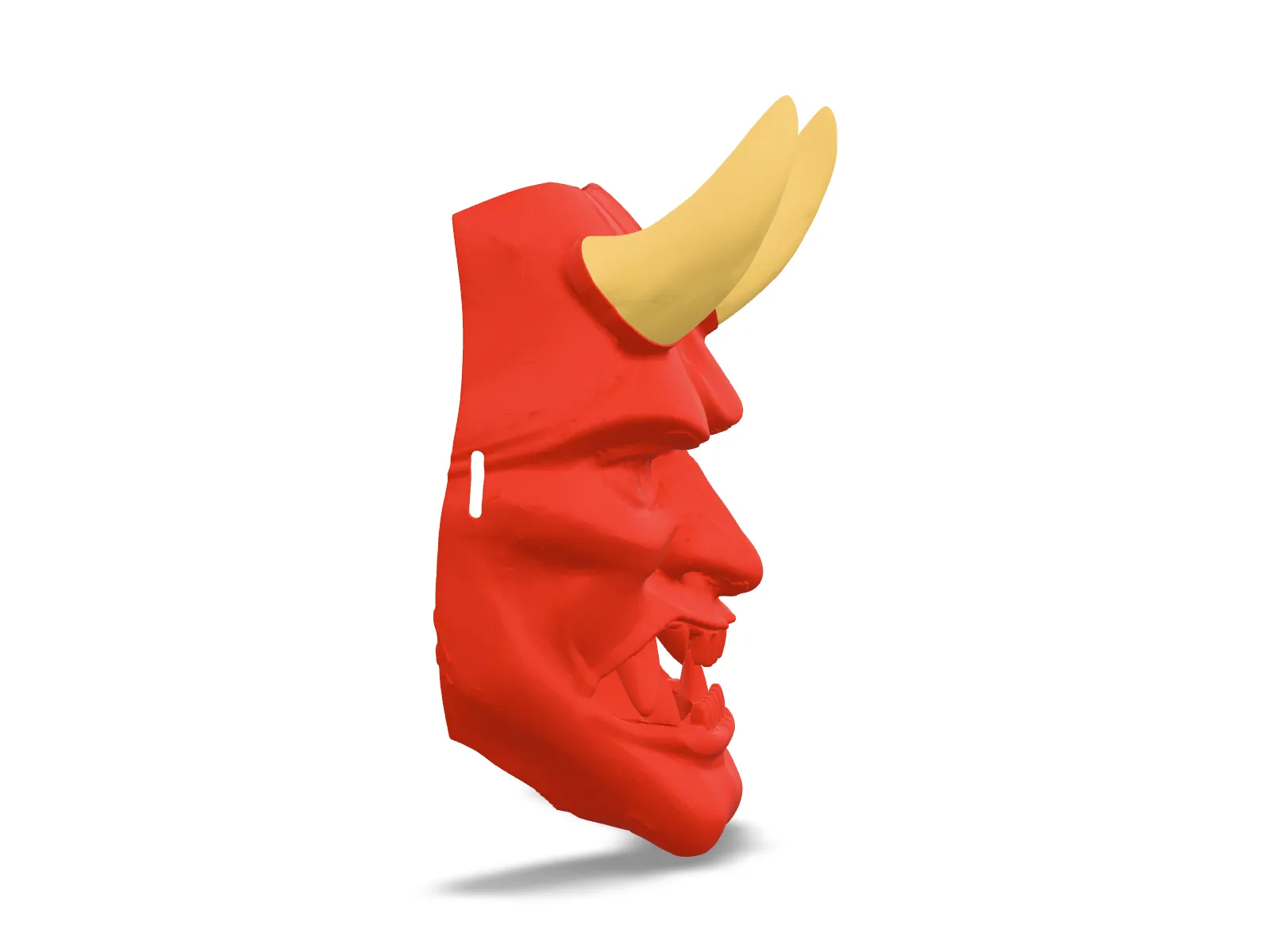

A hannya, the jealous demon of Noh theatre, covering the whole face from the chin to the top of the forehead. Its brow, deep-set eyes, cheeks and flaring nose are a traditional hannya sculpt kept as it was carved and bent in Blender just enough to fit over a real human face. Below the nose the mouth gapes wide between full, rounded lips over a smooth chin. Inside it two rows of teeth stand on their gums, with long fangs and tusks growing from the gums, as on an oni. Gold crescent horns rise from swellings on the brow. The face is a little lopsided, with one side's upper lip and cheek drawn up harder than the other. It is sized to a large adult face and stays at least 3 mm off it, with room to breathe through the open mouth, and an elastic strap passes through a slot at each temple. The mask prints face up in red, and the horns print in gold and glue on, each set by a pin of filament.
What you can change
- The face it fits, from the chin to the bridge of the nose
- Shell thickness
- Strap width
Specifications
- Width x height x depth with the horns
- 163 x 256 x 114 mm
- Fits a face, chin to bridge of the nose
- 134 mm
- Least room between the mask and the face
- 3.0 mm
- Each eye sees through its hole, either way
- 2 deg
- Strap
- 19 mm elastic
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Hannya demon mask, PLA Basic | 2 | 12.1 | 310.6 |
| Total | 2 | 12.1 | 310.6 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.

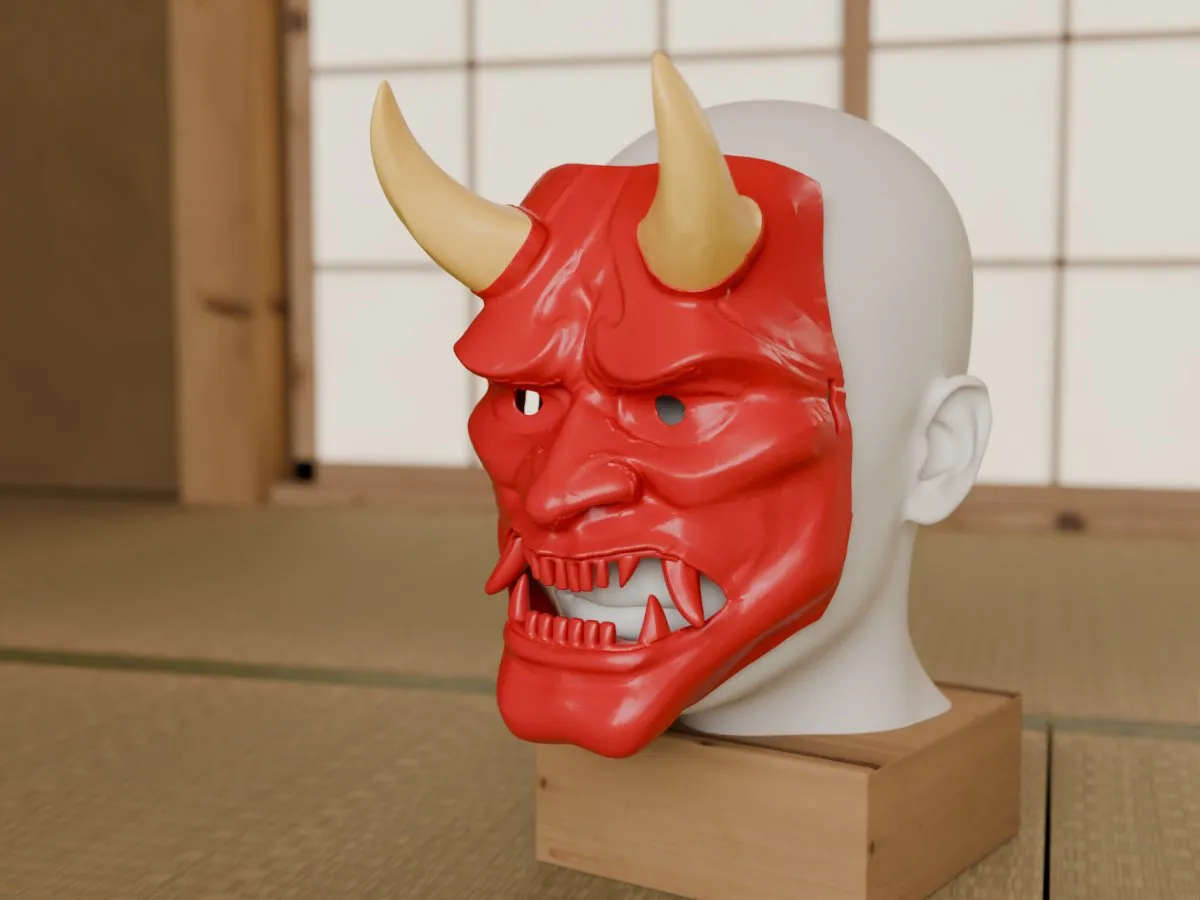

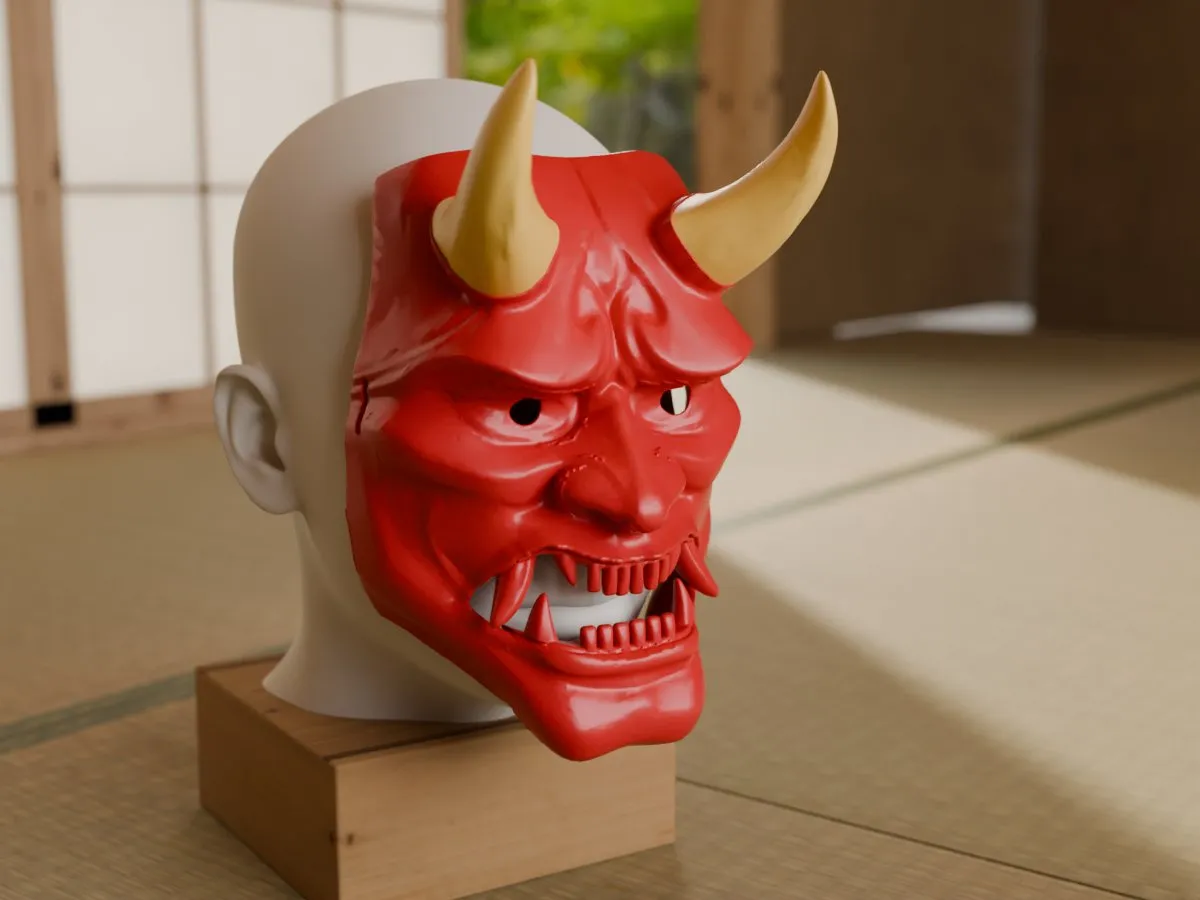

In the room
Credits and licence
The face above the mouth and the horns' line are adapted from "Hannya Mask" by Bulat.Shakirov (https://sketchfab.com/3d-models/hannya-mask-96340255c7e94659bb97e8736f5907e2), licensed CC BY 4.0 (https://creativecommons.org/licenses/by/4.0/). Changes: the face is cut out of its hood, bent to fit a human face and made a little lopsided, its mouth is filled and rebuilt with new lips, gums and teeth, and its ears, horns, teeth, tusks and tongue are left out.
The fangs, the tusks and the horns are taken from "Japanese Elemental Air/Wind Demon Oni Mask - OniKaze" by GiGo (https://www.printables.com/model/1775203), released into the public domain (CC0). They are scaled and set in the hannya's mouth and on its brow.
The wearer is Blender Studio's Human Base Meshes (realistic sculpting head), CC0 (https://www.blender.org/download/demo-files/).
