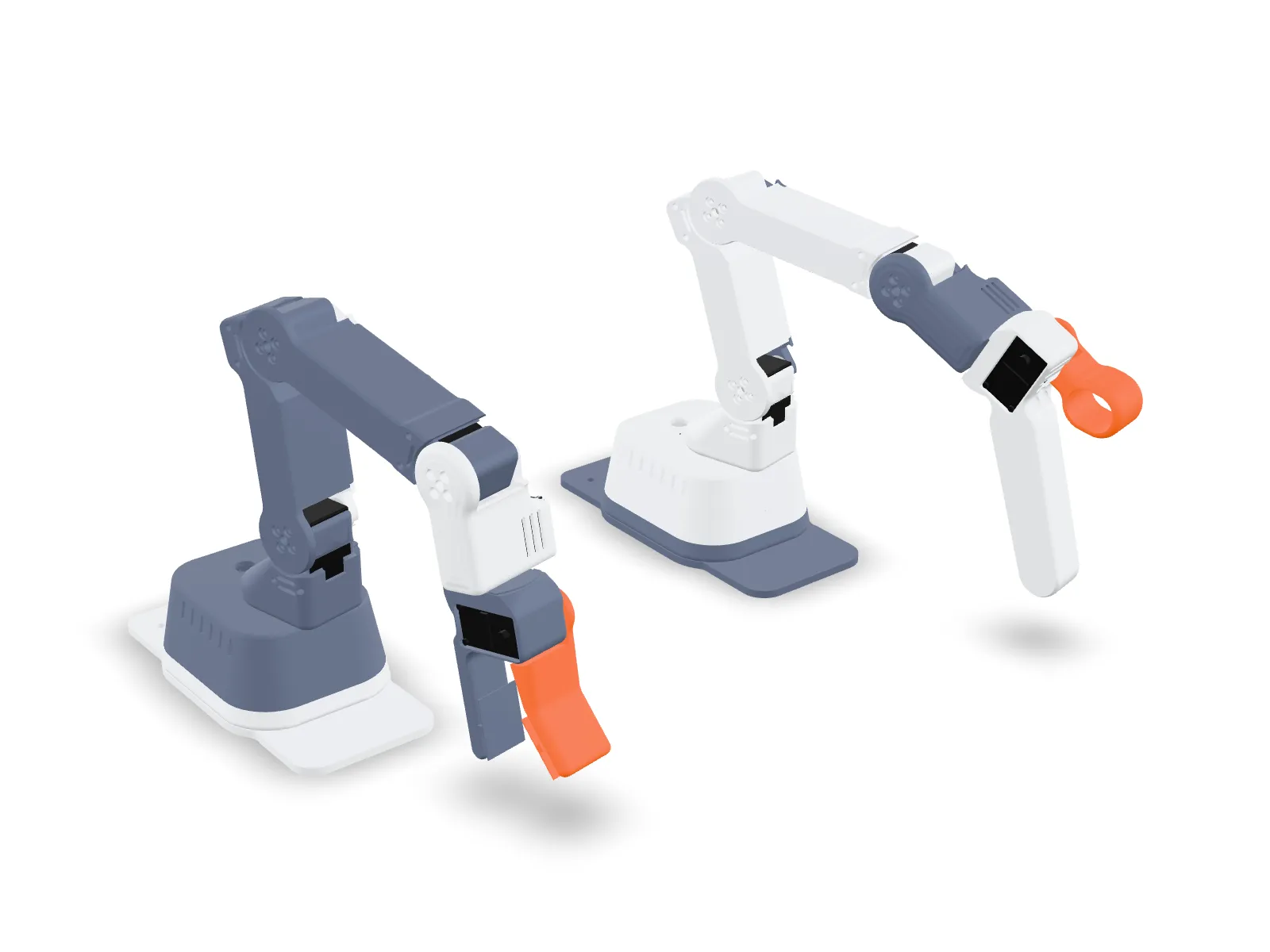

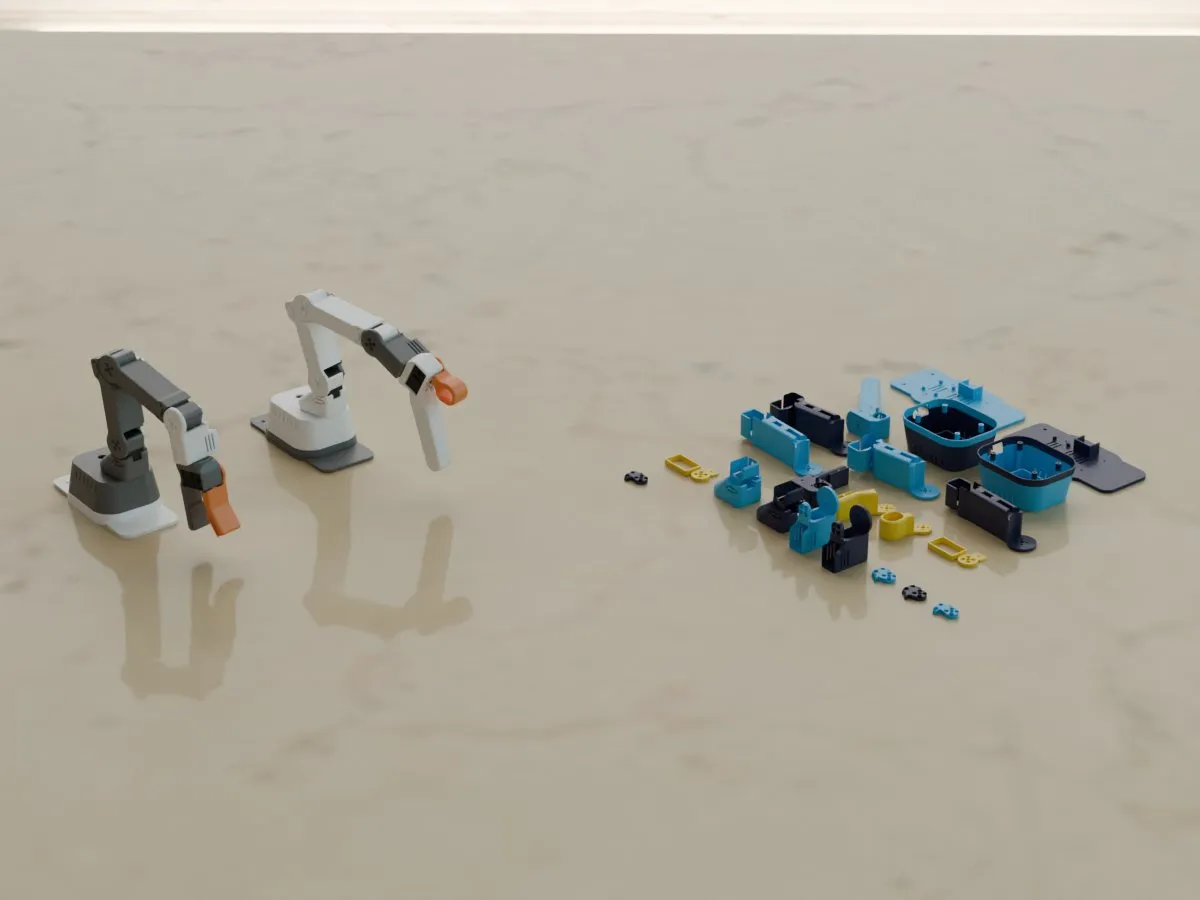

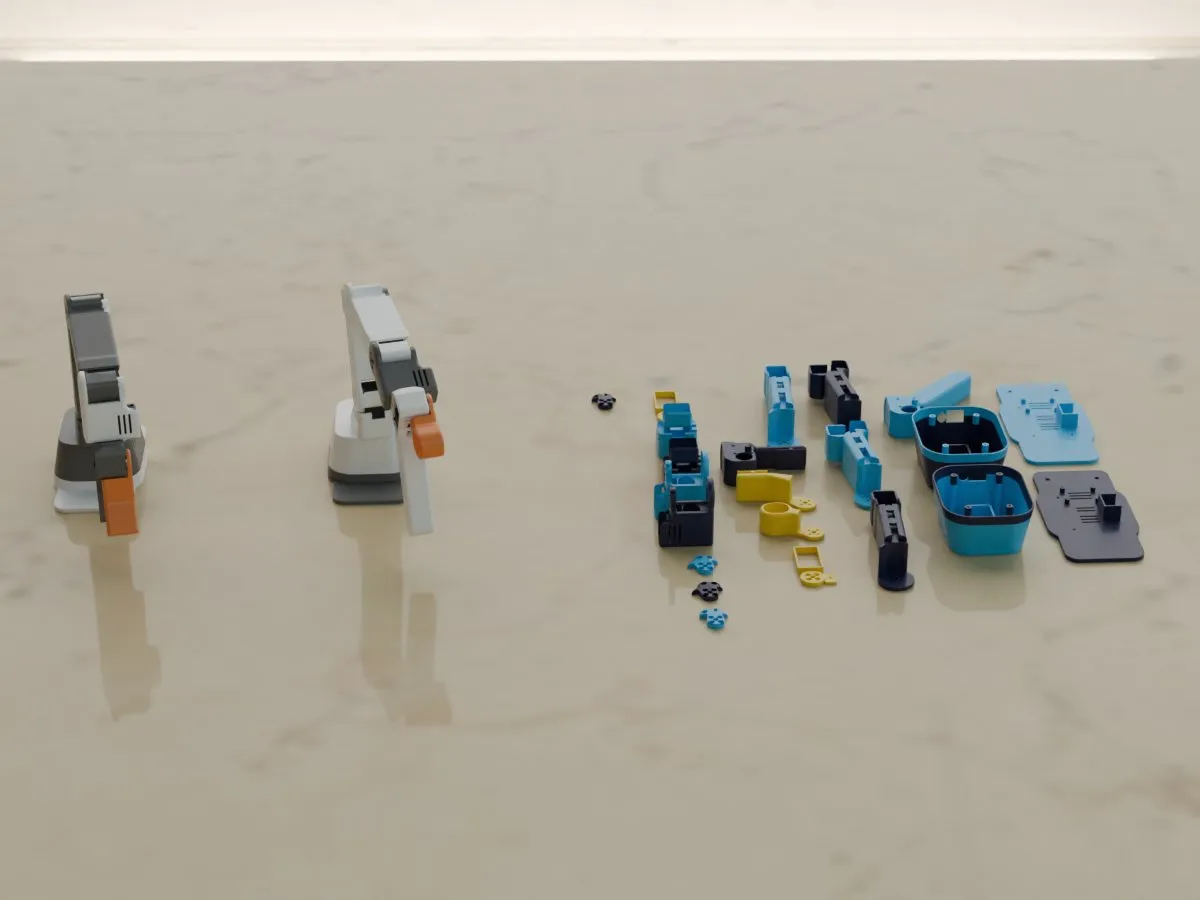

Robot arm pair, follower and leader

Two desktop arms for teaching tasks by hand. I move the leader and the follower copies it.

Reach from the pan axis: 440 mm
Payload with the forearm level, and reaching down to the table (kg), my estimate: 0.06 and 0.31
Print time: 30.0 h on 8 plates
Filament: 1034.3 g

Colourway

Blue grey main
Light gray second
Orange accent

About the design

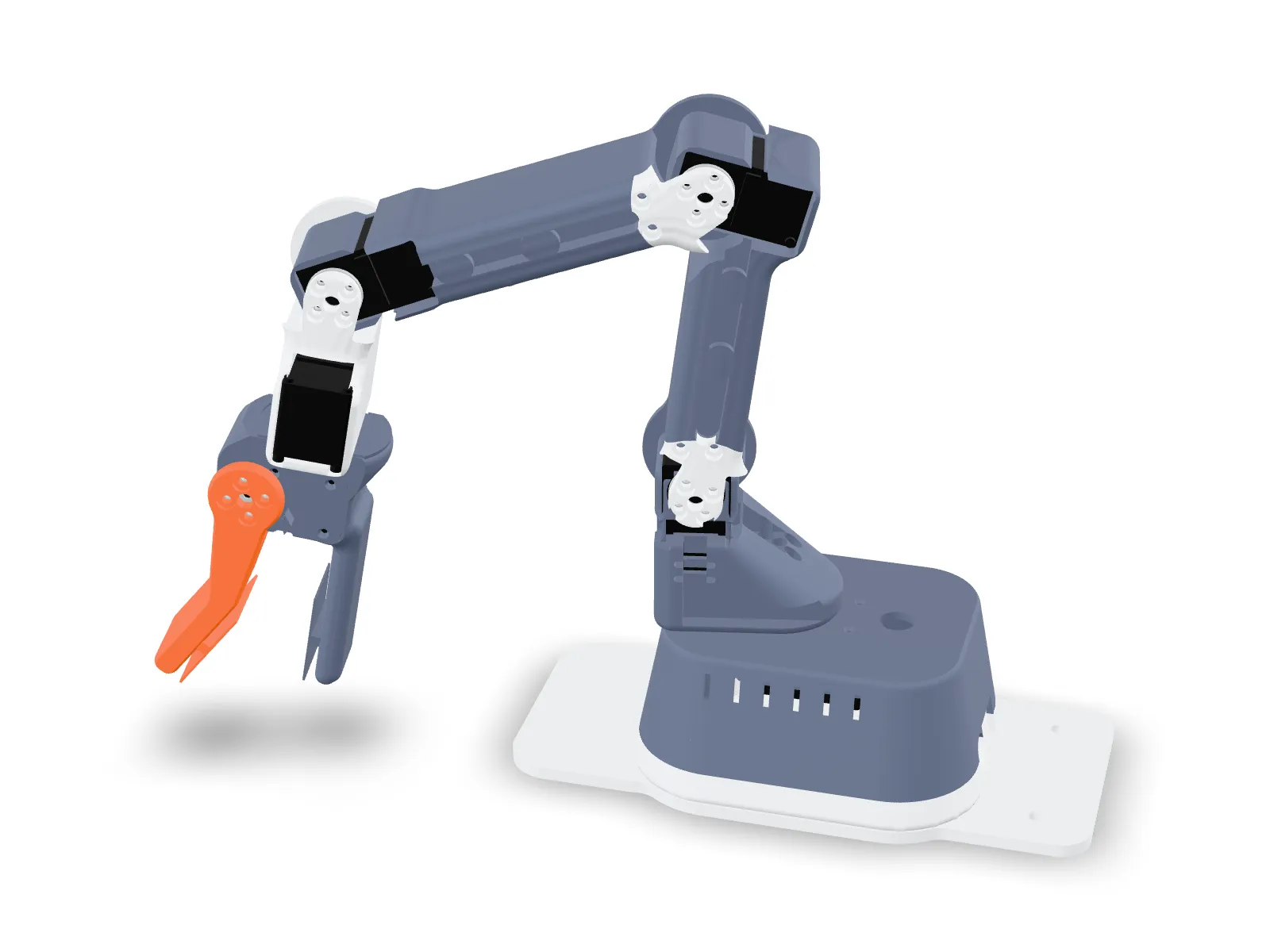

This is my pair of desktop robot arms for teleoperation and for teaching a robot new tasks. I hold the leader by its grip and trigger, and the follower copies every move with its gripper. I record those moves as demonstrations, and LeRobot learns from them to do the task alone. The joints sit exactly where SO-101's do, so its calibration and its software work unchanged. Every printed part is my own design. Each arm has six serial bus servos. The first four each get their own power lead from a hub in the base, and the two at the wrist branch from the fourth through short leads. So the far joints keep full power when the arm works hard. Air flows past every servo through vents, and no servo is shut in. The follower's fingers carry springy pads and close against a stop before they can jam. Leads run in grooves along the arm with spare length at every joint, and round caps cover the elbow and shoulder joints. A small gauge checks the servo and horn fits before the rest is printed. Both arms print in PLA, and only the two long links need a little support under one face.

What you can change

Clearances of the servo pockets, the horns and the turning parts
Wall, cheek and boss sizes and the curves of the shells

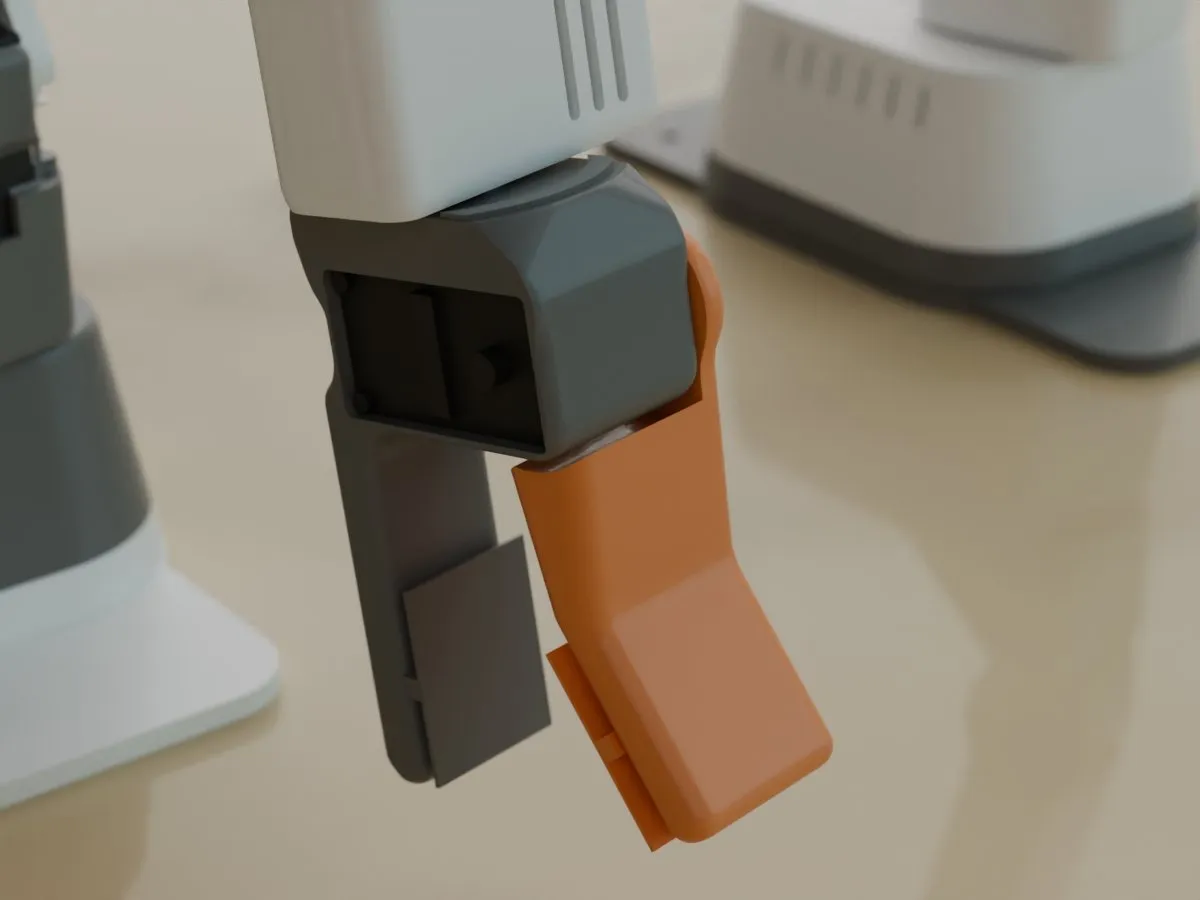

The fingers' spring pads and the closing stop

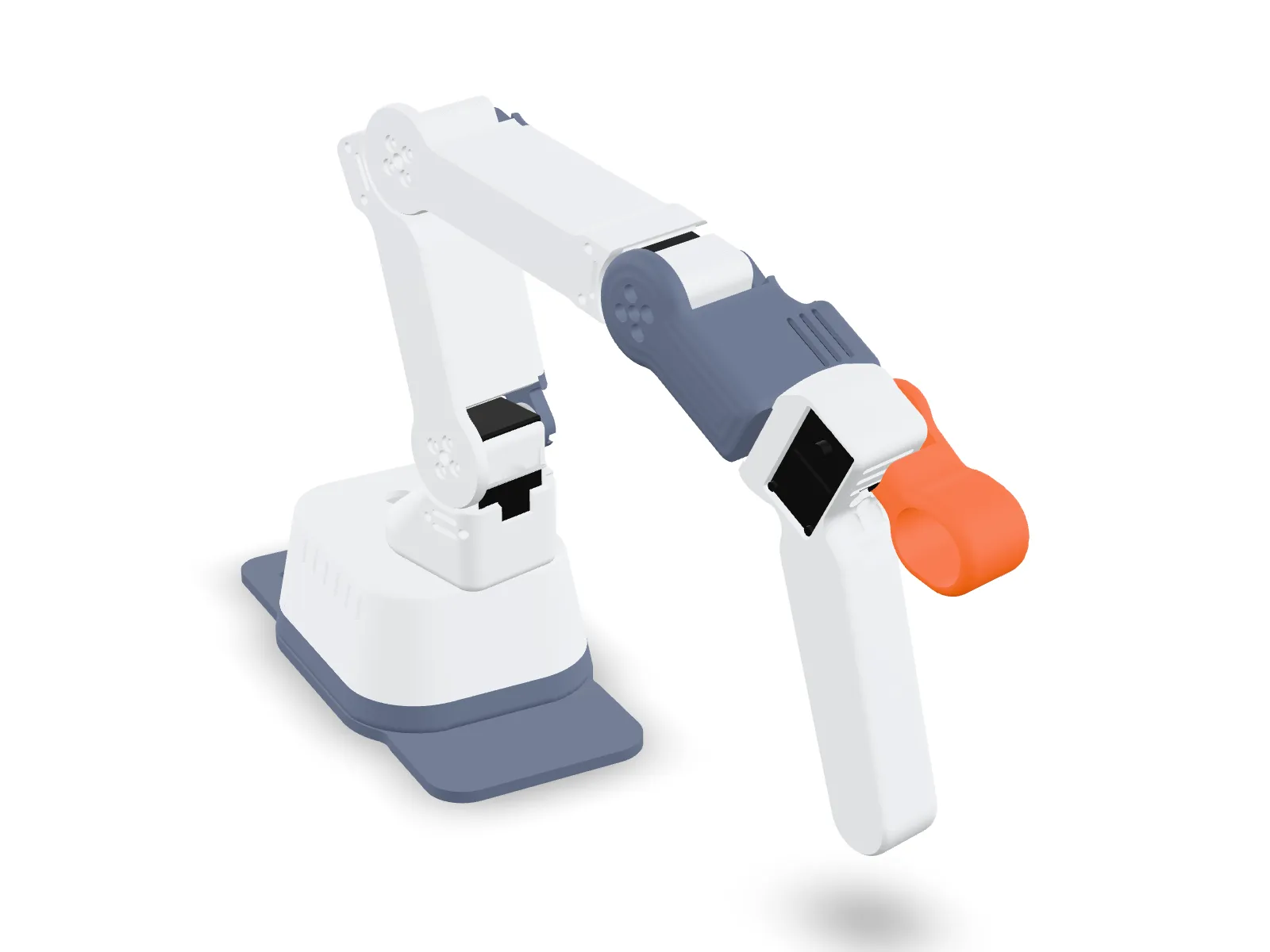

The leader's grip and trigger loop
The base, its board and its power hub
The lead grooves and the slack kept at each joint
The supply voltage

Specifications

Reach from the pan axis: 440 mm
Payload with the forearm level, and reaching down to the table (kg), my estimate: 0.06 and 0.31
Lead slack kept at pan / lift / elbow / wrist / roll: 74 / 29 / 28 / 25 / 32 mm
Servos: 12 x Feetech STS3215, 6 per arm, in SO-101's gear ratios
Supply: 6 V, 5 A per arm
Joint travel, lift / elbow / wrist (deg): -100 to 100 / -97 to 72 / -95 to 95
Gripper opening (deg): -2 to 100
Give of each finger pad: 3 mm
Grip at the closing stop with nothing held (N), my estimate: 6.5
Printed parts, follower and leader (g), my estimate: 442 and 487

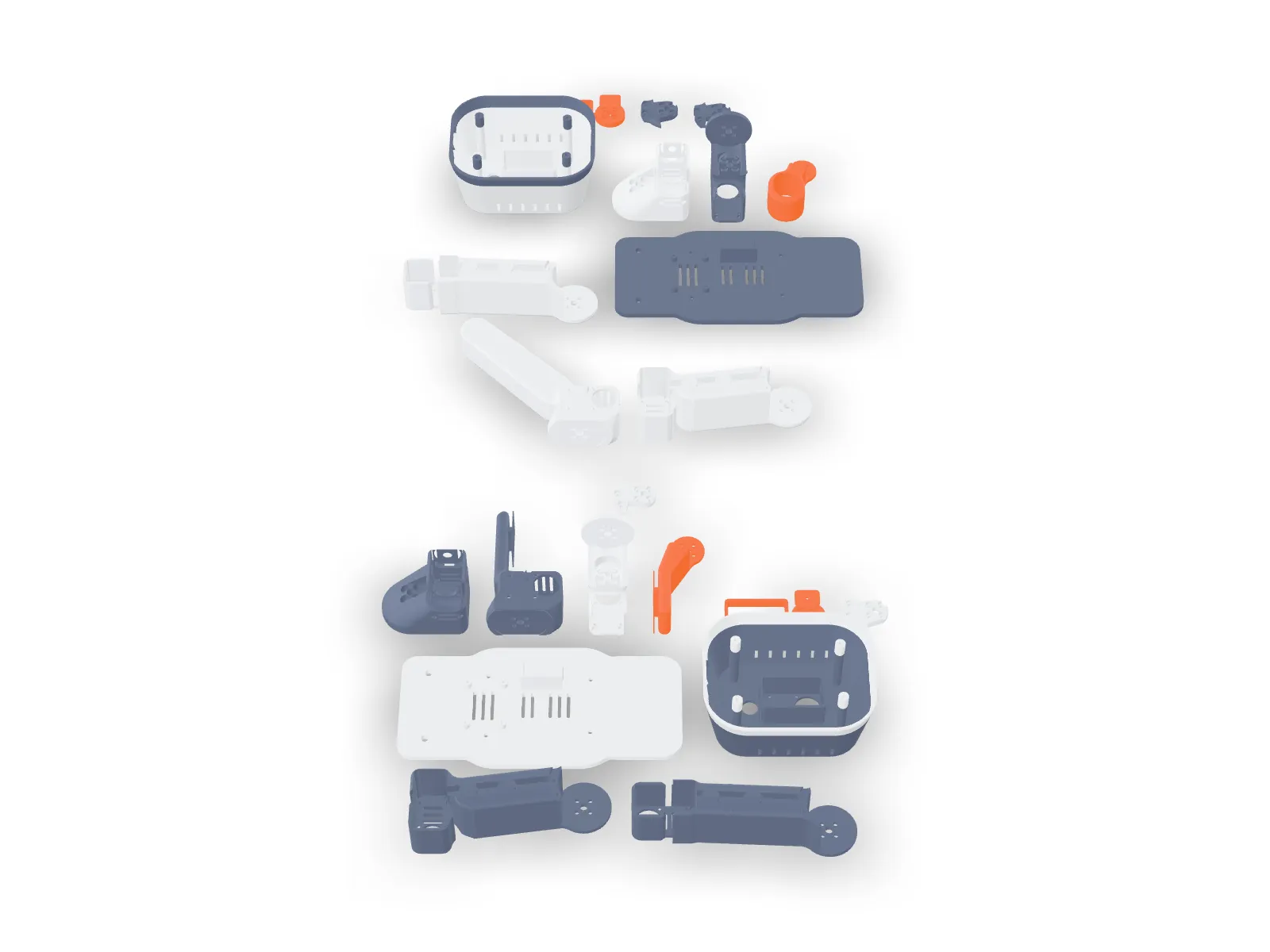

Printing

Plates, print hours and filament grams for each print project
Project	Plates	Hours	Grams
Follower, PLA Basic	4	14.6	502.3
Leader, PLA Basic	4	15.4	532.0
Total	8	30.0	1034.3

Times and weights come from slicing the model at 0.20 mm layers. Each figure is rounded on its own.

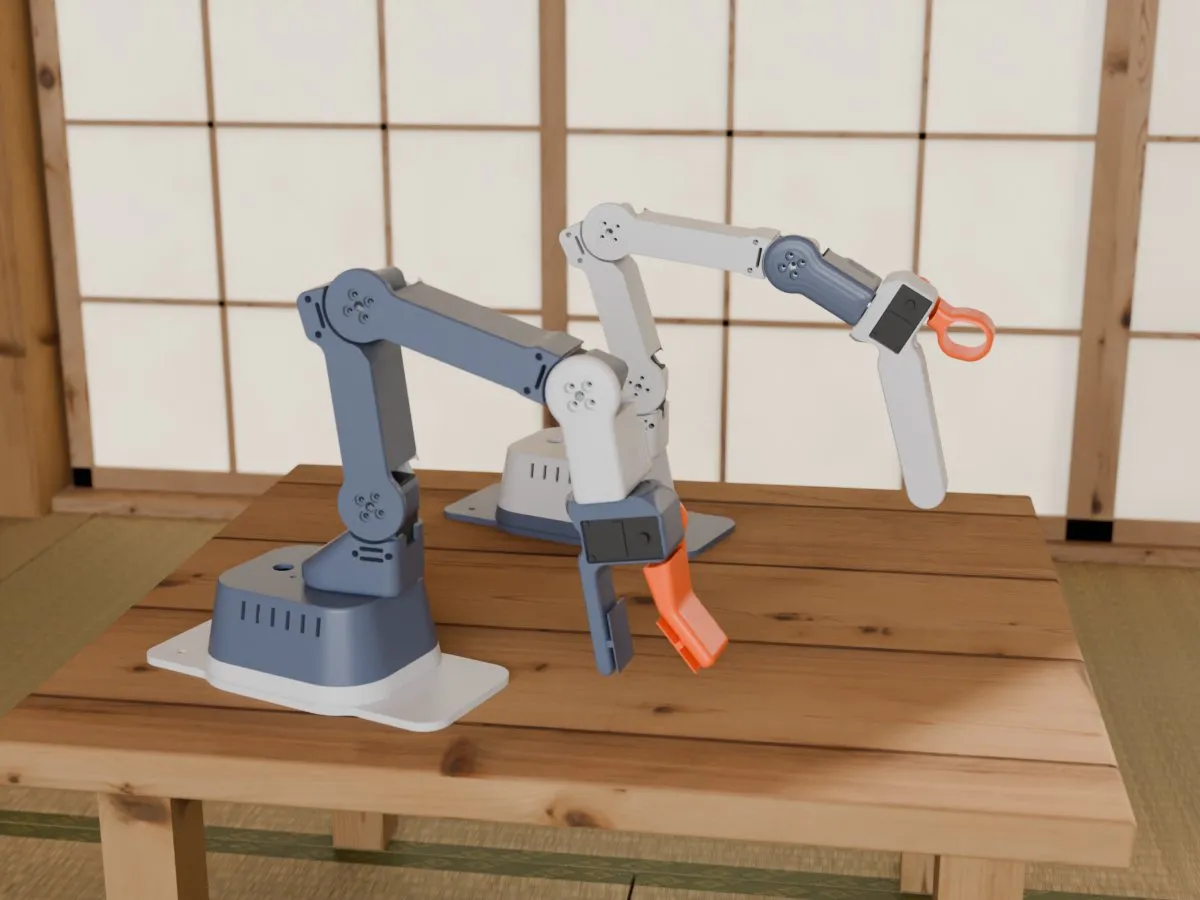

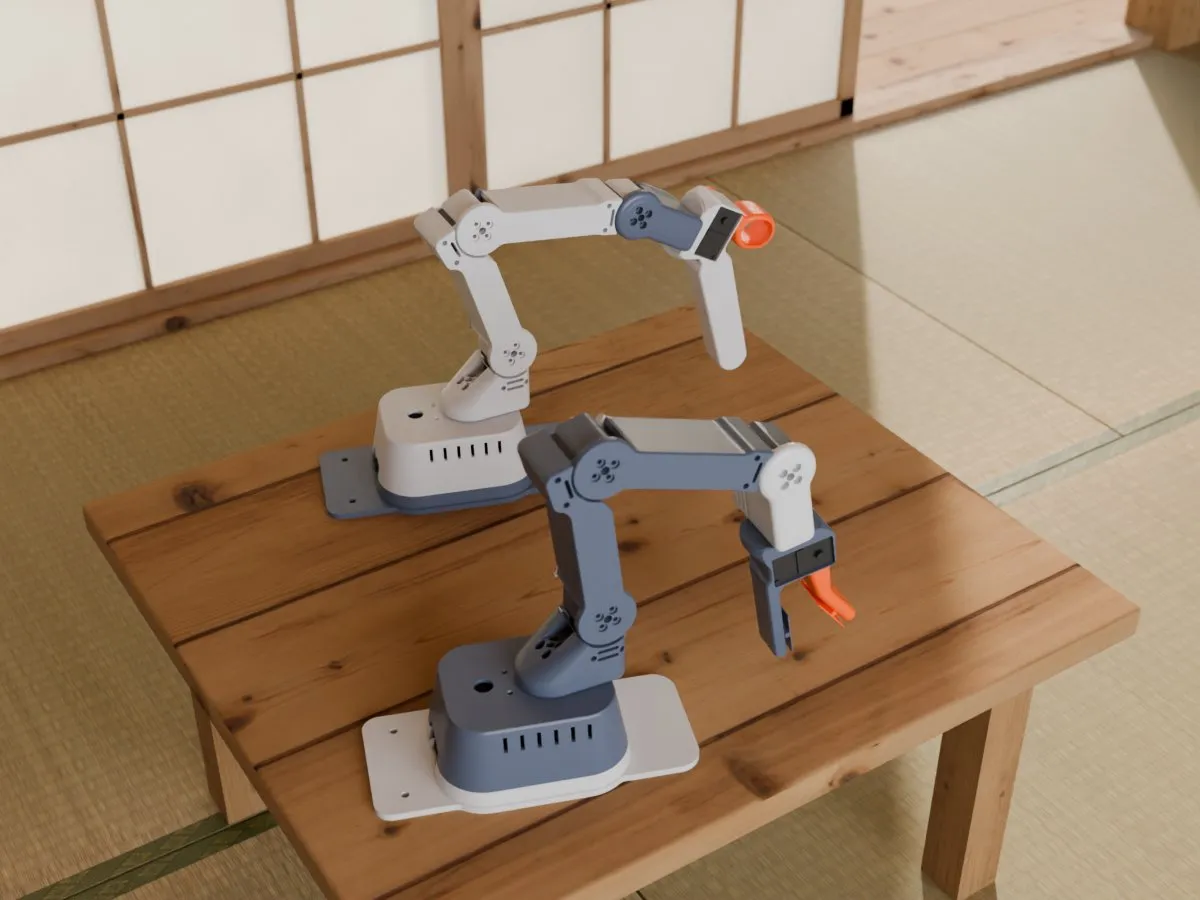

In the room

Credits and licence

The kinematics and the layout are those of SO-101 by TheRobotStudio and Hugging Face (https://github.com/TheRobotStudio/SO-ARM100), licensed Apache-2.0 (https://www.apache.org/licenses/LICENSE-2.0). Its URDF gives every joint's place, axis and range and every servo's place, and I kept them exactly so the pair works with LeRobot. The servo mounting holes come from the servo model published with SO-101. Every printed part is my own design, and no SO-101 part's geometry is used.
