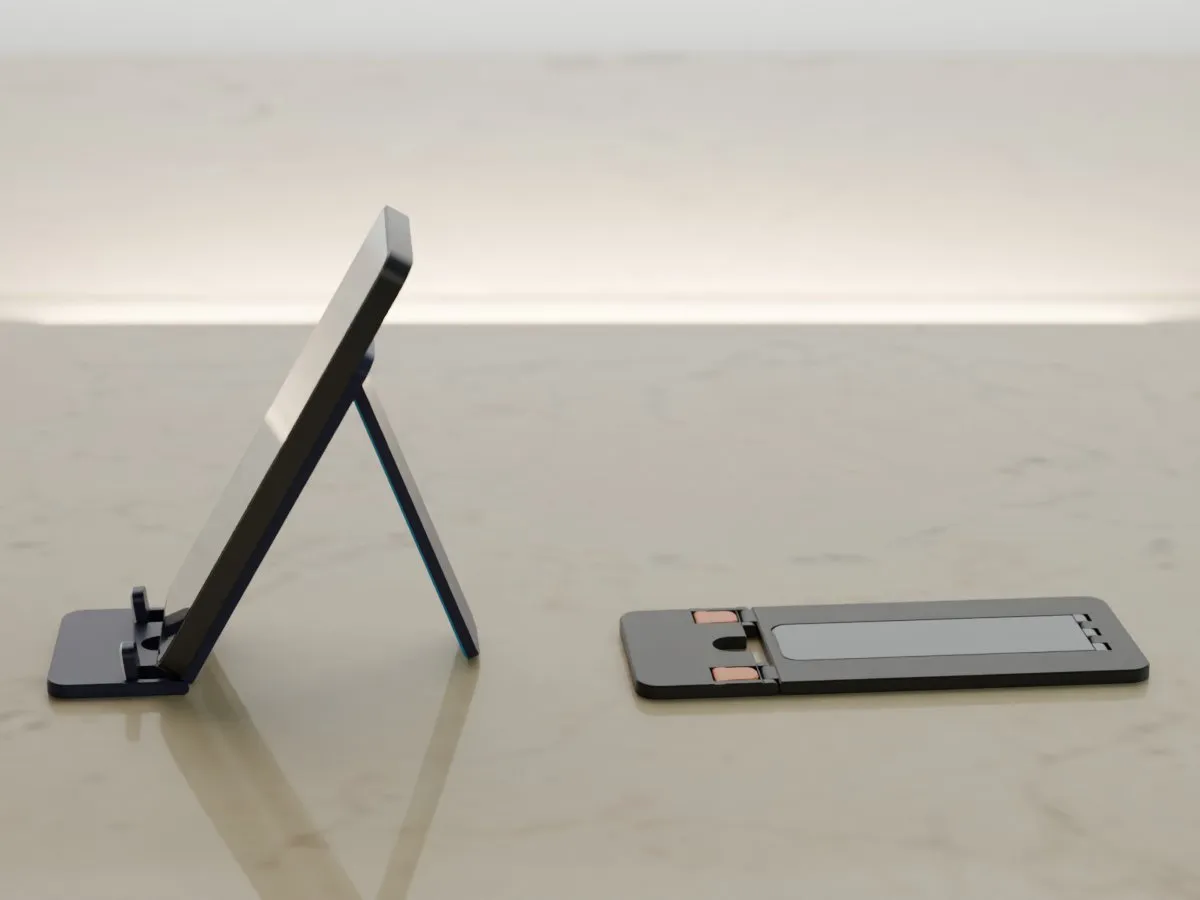

Some renders show this model in another colourway.

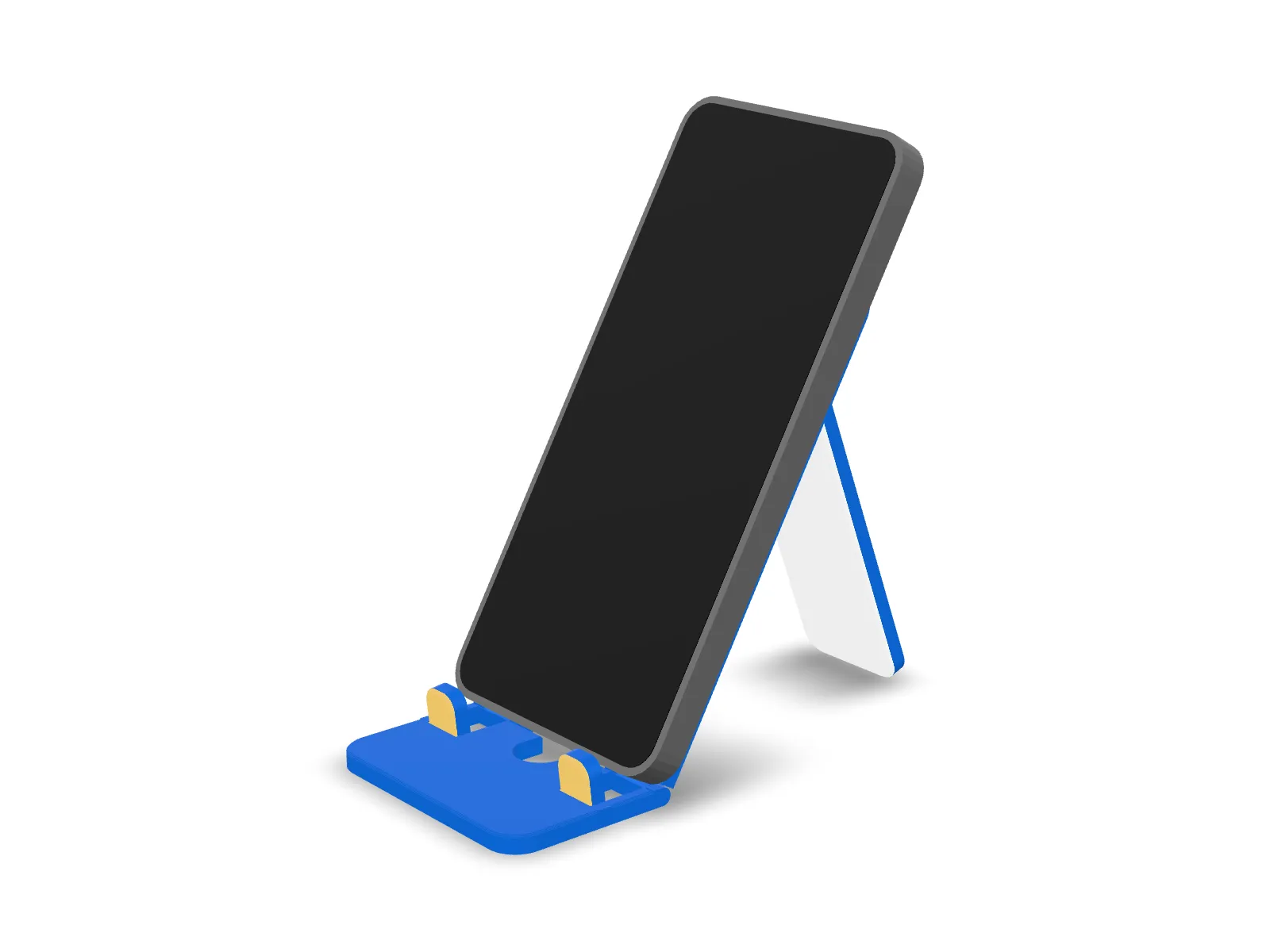

Folding phone and tablet stand
A slim card that folds into a sturdy stand and folds flat again for your pocket.
- Phone card, flat
- 175 x 70 x 4.8 mm
- Phone footprint standing, depth
- 142 mm
- Print time
- 3.0 h on 1 plate
- Filament
- 116.6 g
Colourway
- Cobalt blue main
- Jade white second
- Gold accent
About the design

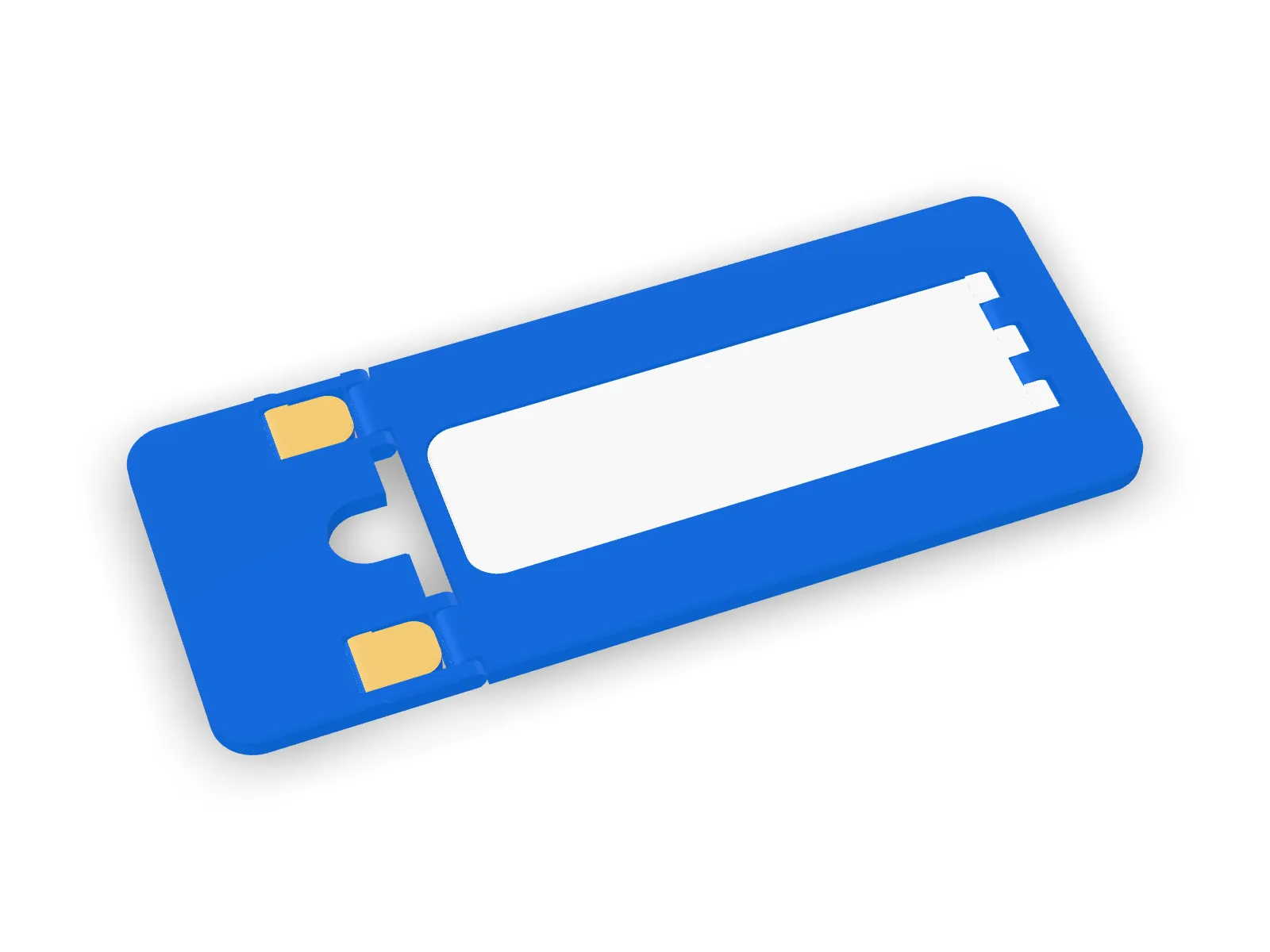

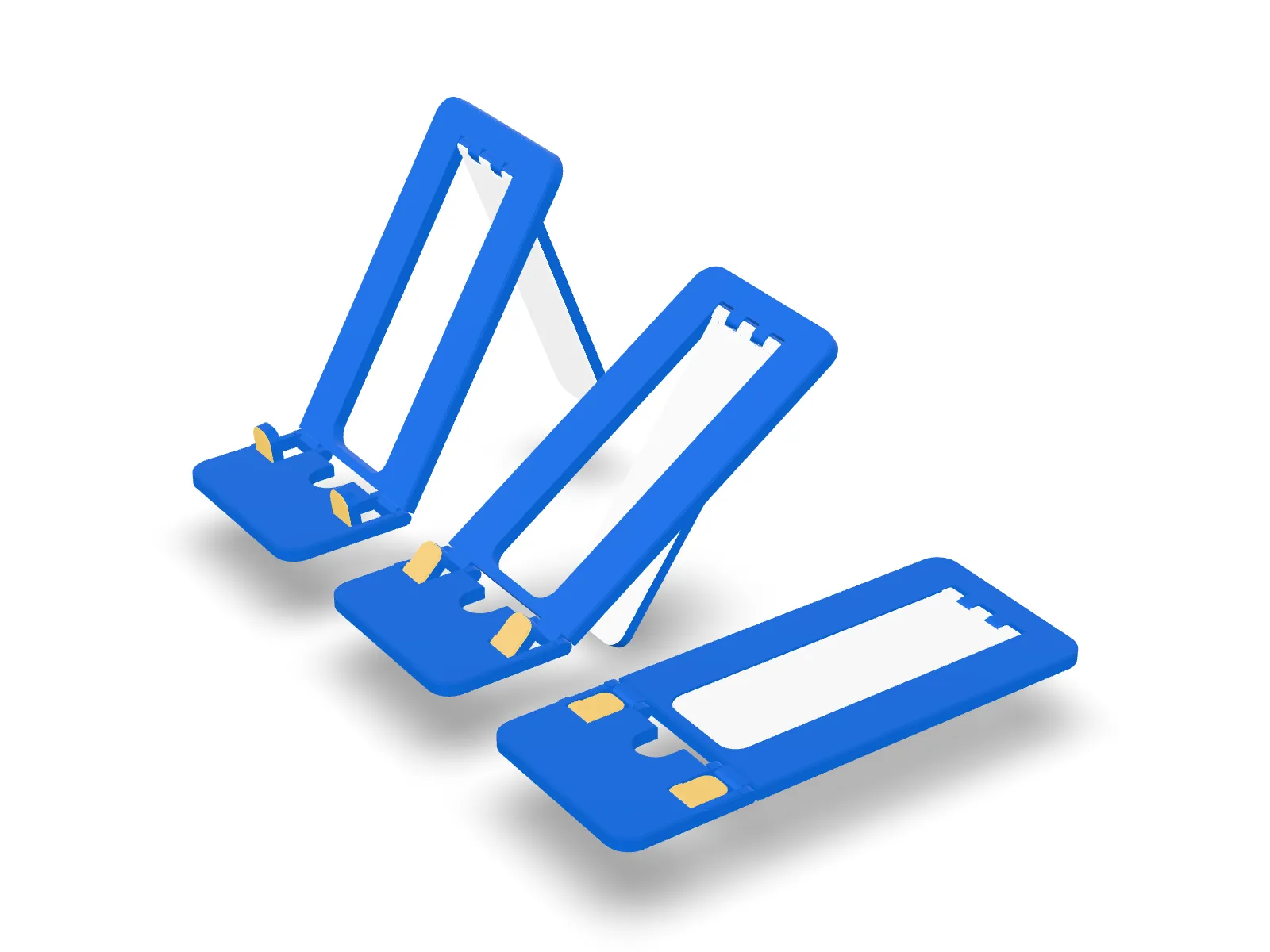

The stand prints flat in one go as a thin card of five pieces joined by print-in-place hinges. Fold the backrest up, swing out the kickstand that lies in its window and flip up the two lip ears, and it holds a phone or tablet in a thick case at a comfortable reading angle. The ears leave the port, speakers and microphone clear, and a slot through the base takes a right-angle charging plug. Rounded corners and softened edges keep the card neat, it folds flat again to carry, and the kickstand's length comes from a tipping check, so a firm tap does not knock it over.
What you can change
- Viewing angle
- Device thickness with its case
- Width
- Card thickness
- Hinge clearance for your printer
- Kickstand angle
- Lip height
Specifications
- Phone card, flat
- 175 x 70 x 4.8 mm
- Phone footprint standing, depth
- 142 mm
- Tablet card, flat
- 180 x 120 x 4.8 mm
- Tablet footprint standing, depth
- 146 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Folding phone and tablet stand, PLA Basic | 1 | 3.0 | 116.6 |
| Total | 1 | 3.0 | 116.6 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.

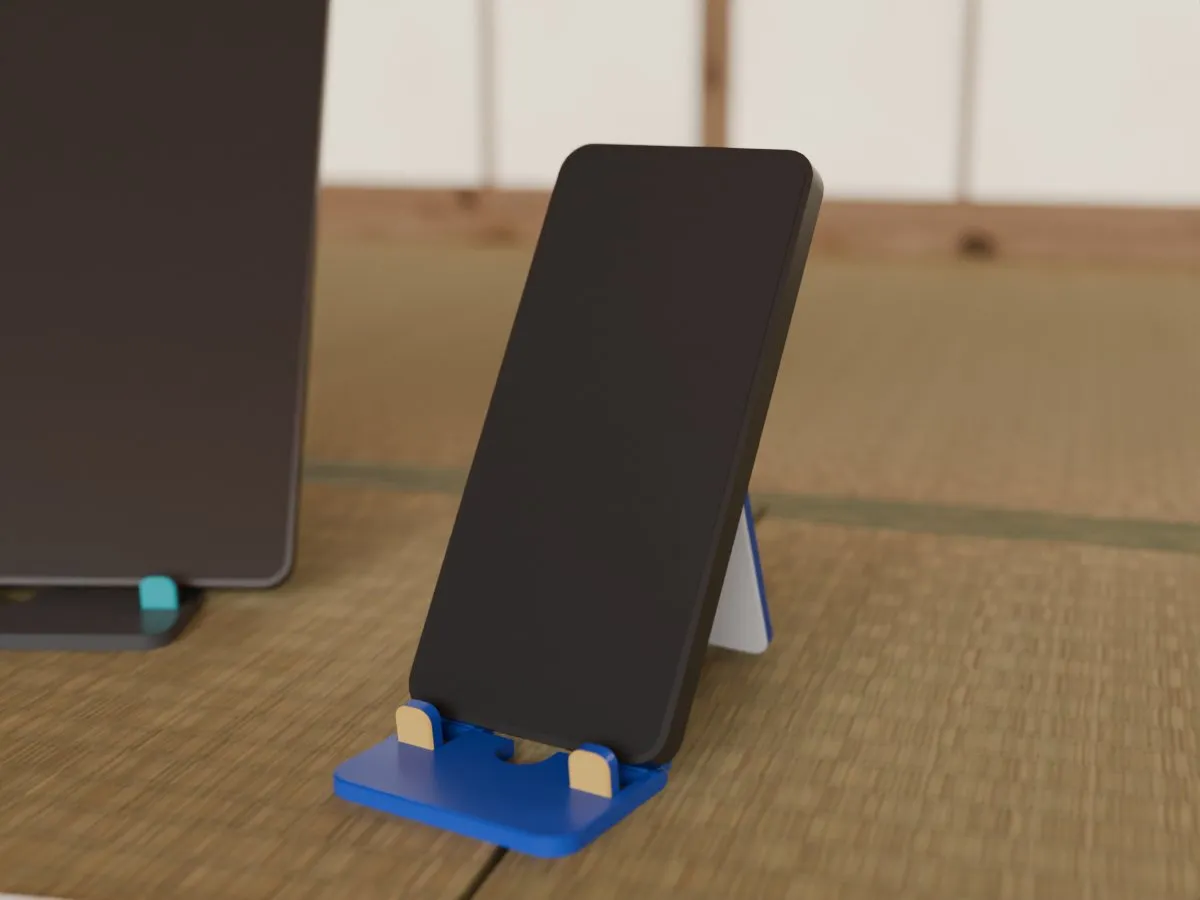

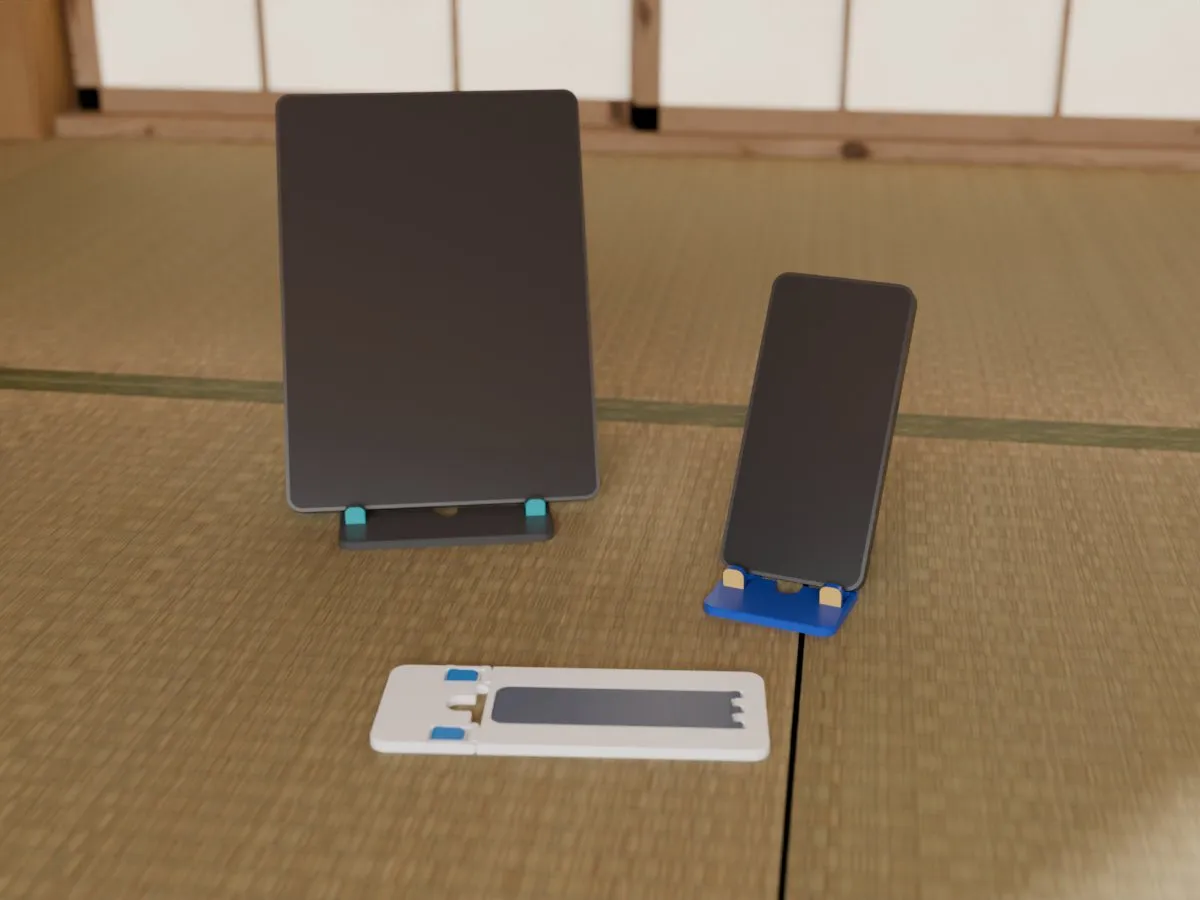

In the room
Some renders show this model in another colourway.
Credits and licence
The cable path and the lessons of its users' comments come from PlatinumStars' Phone Stand (https://www.printables.com/model/187125, CC BY-NC), and the flat-fold idea from Cherry Labs' Phone/Tablet Stand (https://www.printables.com/model/1161, CC BY-NC-SA). No file of either is used.
- Licence
- All rights reserved
