Spiral planter and vase

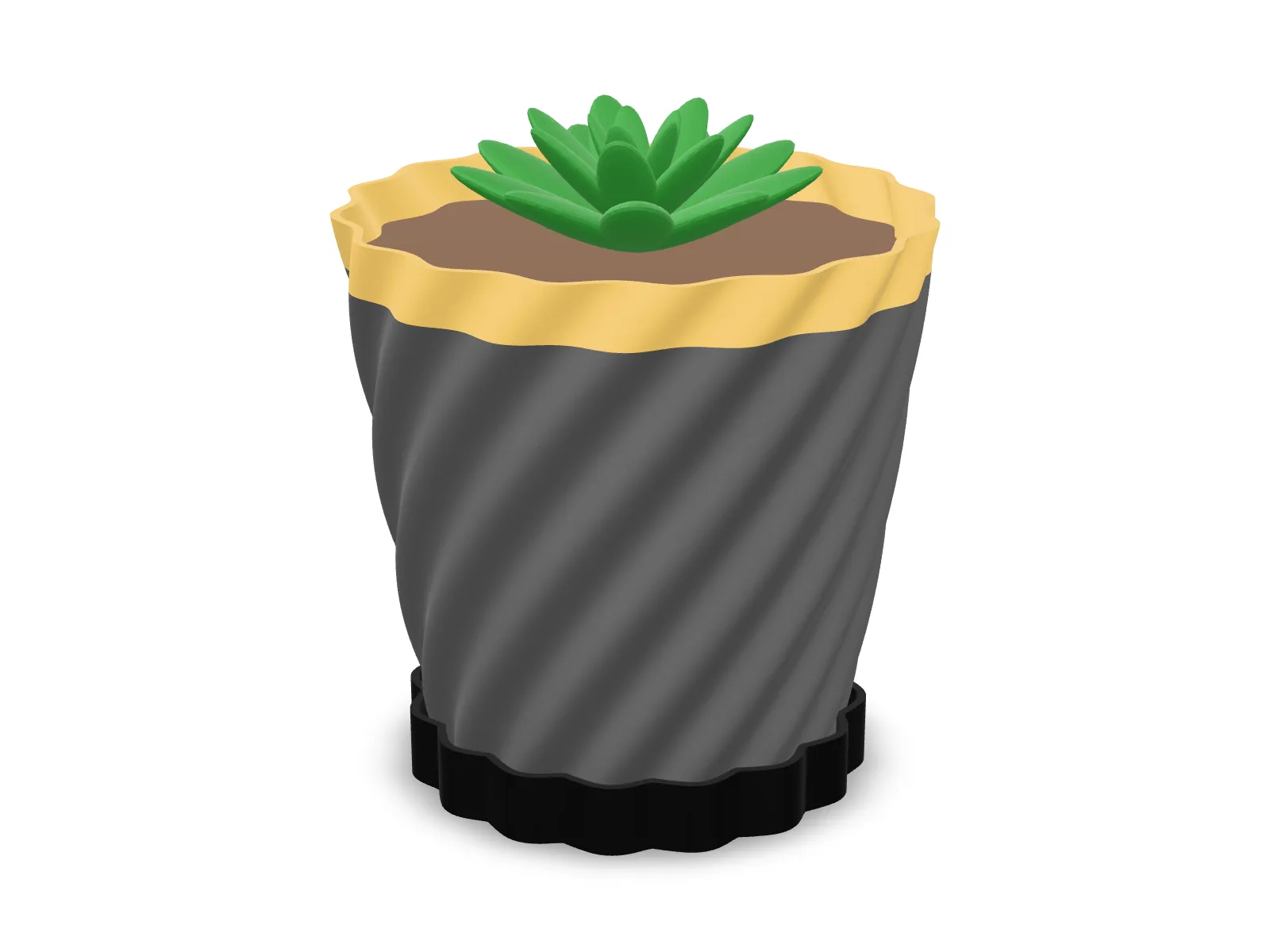

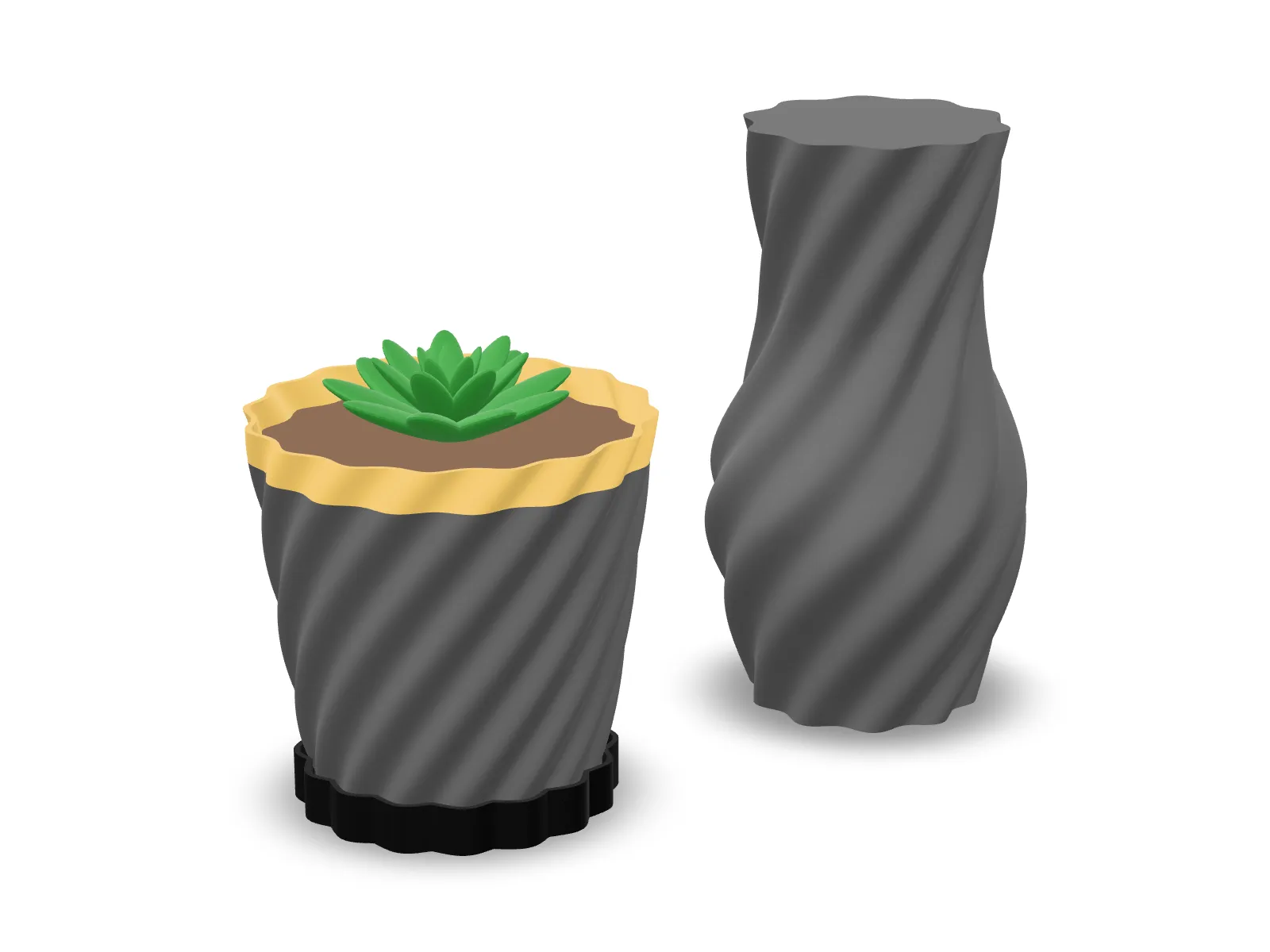

A spiral-ribbed planter with a drip tray, and a matching vase that prints in spiral mode.
- Planter capacity
- 0.77 litres
- Planter height x width
- 110 x 116 mm
- Print time
- 4.1 h on 3 plates
- Filament
- 143.0 g
Colourway
- Dark gray main
- Black second
- Gold accent
About the design

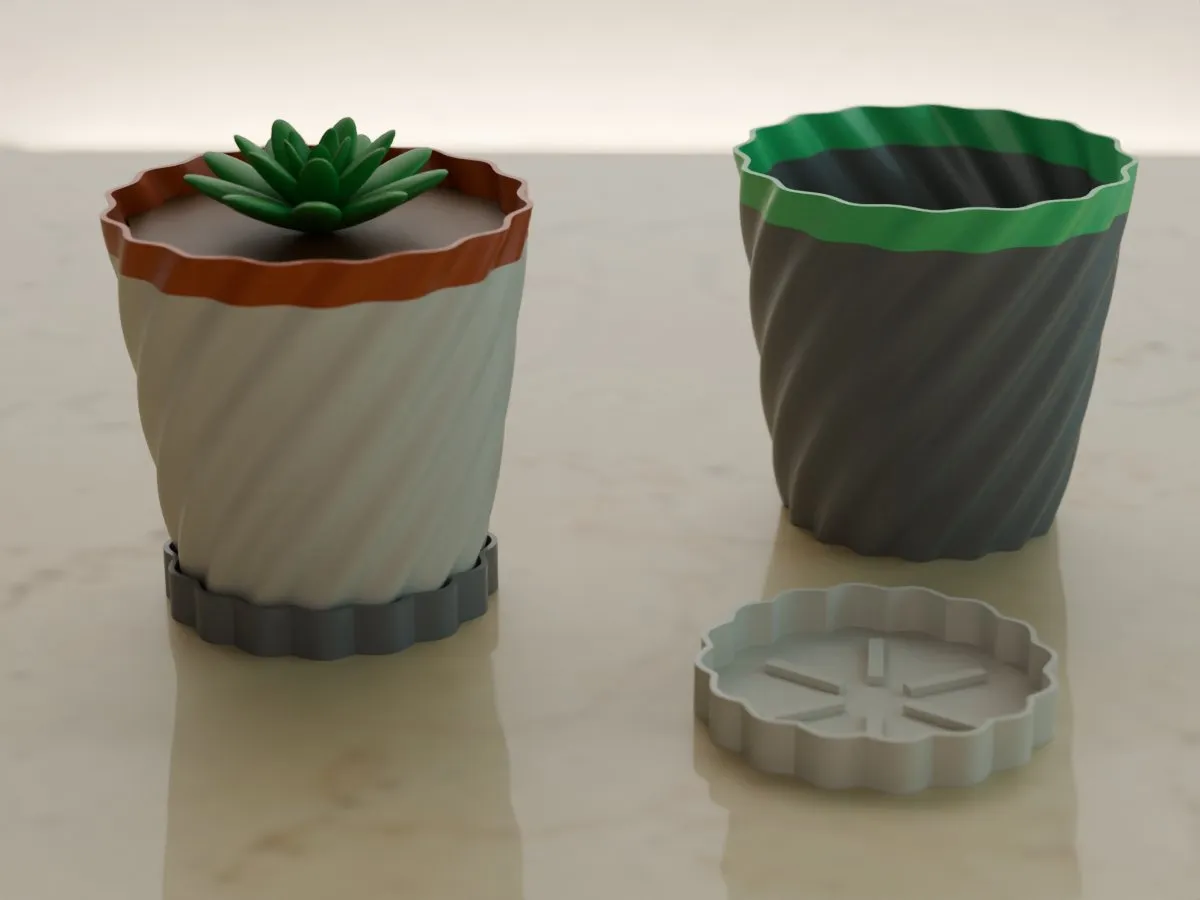

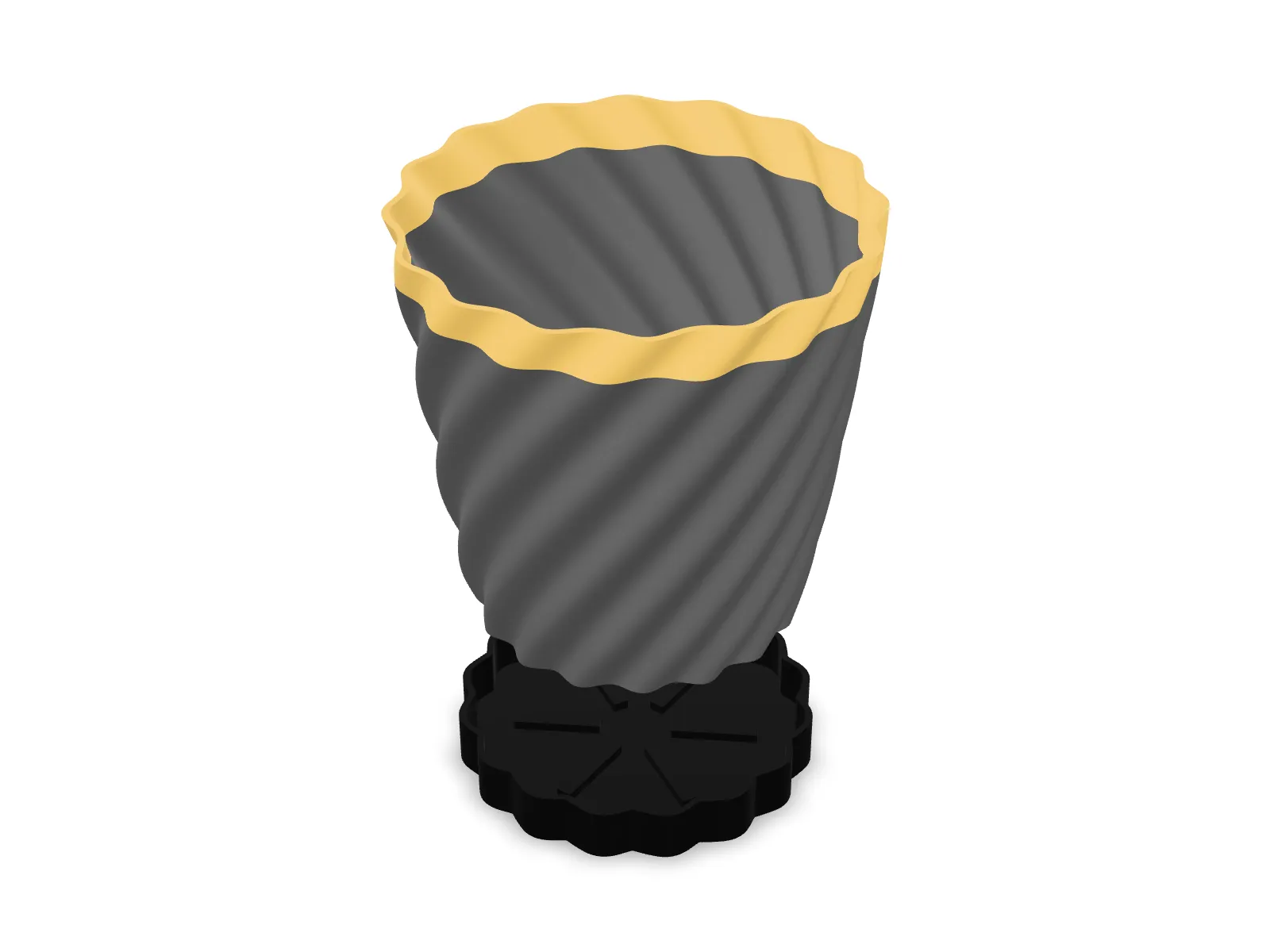

Smooth ribs wind up the planter, which stands on raised pads inside a matching drip tray so water drains away from the pot. The pot never narrows towards the top, so a plant comes out in one piece. Its walls are whole extrusion lines thick at every size, and every surface leans 45 degrees or less, so it prints without supports. The vase shares the shape and prints as one continuous wall in spiral vase mode.
What you can change
- Height and profile
- Number of ribs, rib depth and twist
- Wall thickness in extrusion lines
- Drain holes
- Tray rim height and standoffs
Specifications
- Planter capacity
- 0.77 litres
- Planter height x width
- 110 x 116 mm
- Vase height x width
- 180 x 99 mm
Printing
| Project | Plates | Hours | Grams |
|---|---|---|---|
| Planter, PLA Basic | 2 | 2.9 | 117.6 |
| Vase, spiral mode, PLA Basic | 1 | 1.2 | 25.4 |
| Total | 3 | 4.1 | 143.0 |
Times and weights come from the Bambu Studio 02.08.02.61 slice at 0.20 mm layers. Each figure is rounded on its own.
Credits and licence
Proportions and the lessons of its users' comments come from SchulteGeileTechnik's Modern spiral planter (https://www.printables.com/model/225251, CC BY-NC). No file of it is used.
- Licence
- All rights reserved
